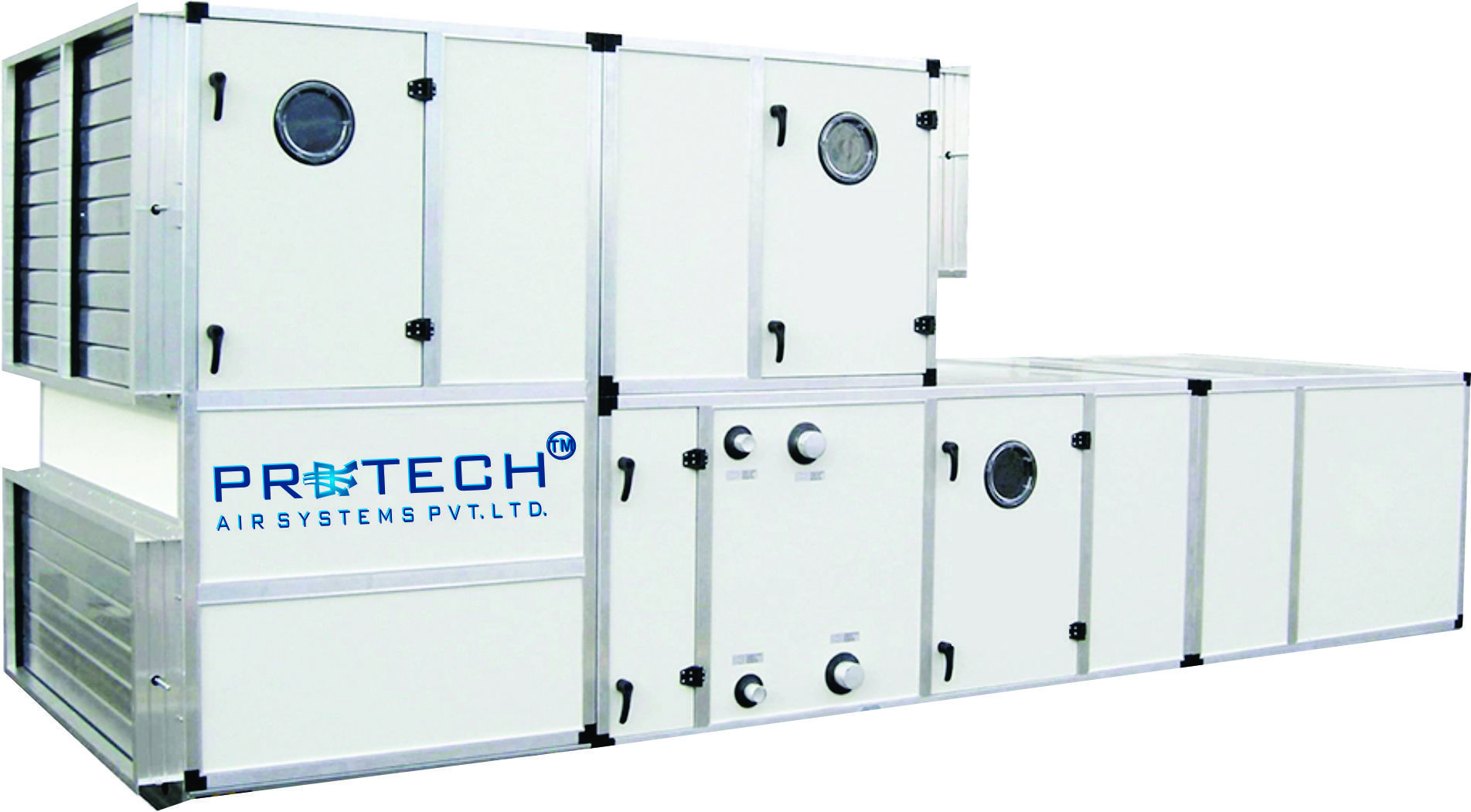

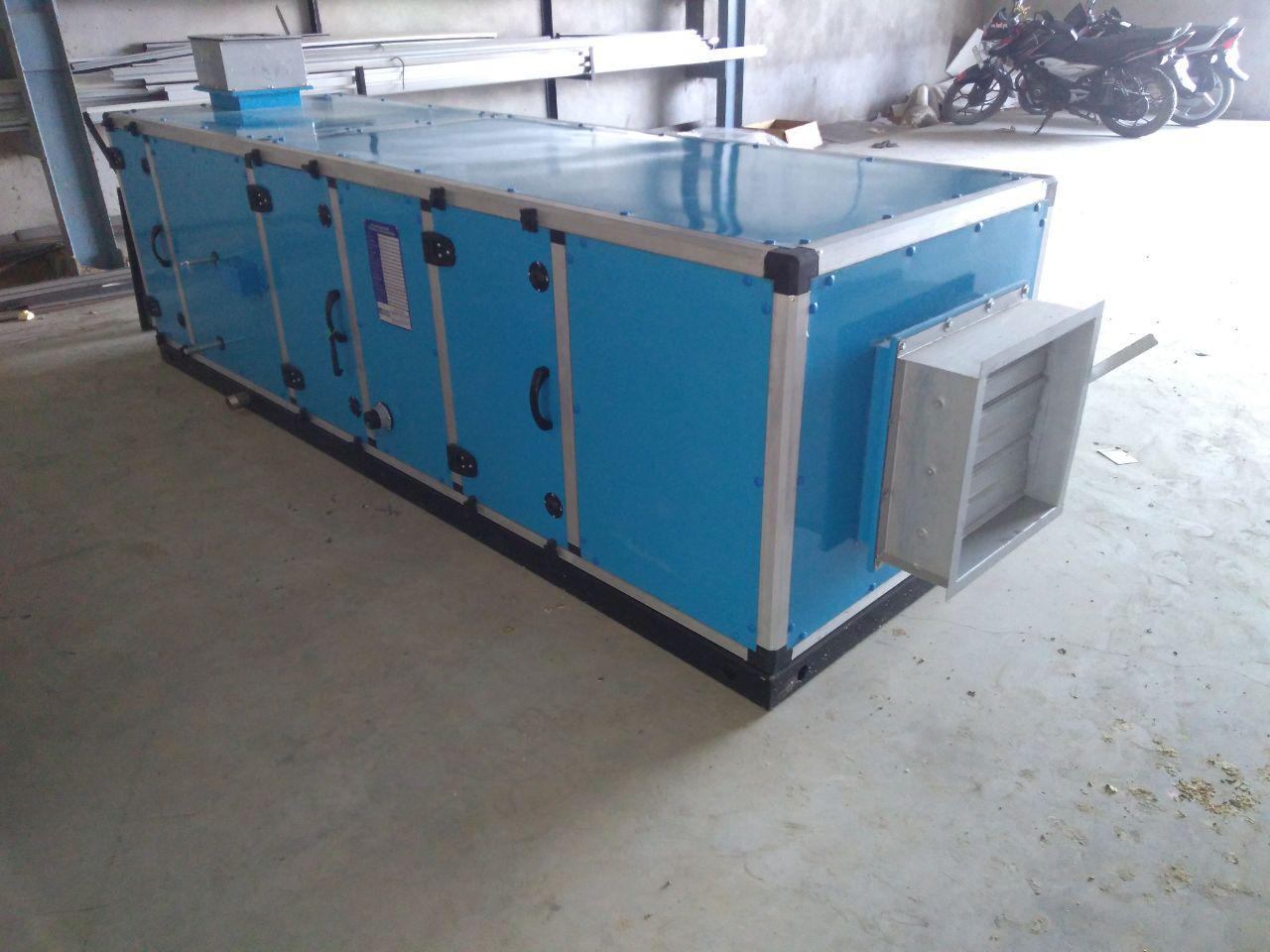

Air Handling Unit

We are offering an advanced Air Handling Unit that is used in varied industries, corporate offices, shopping complex, showrooms, etc for maintaining the temperature and humidity level of the surrounding. Owing to the capacity and efficient cooling operation, the machine is widely appreciated amongst our clients. It has got the ability to regulate the moisture present in the air, which aids to create the pleasing environment. Besides, owing to the latest machinery, and incorporation of the cutting edge techniques in the manufacturing of the Air Handling Unit, we are able to supply durable and top-notch product to our clients.

Technical Specifications

• Type : Floor Mount / Wall Mount / Horizontal / Vertical
• Design : Blow Through / Draw Through
• Frame work : thermal breack / non thermal breack
• Panel MOC :double skinned / singled skinned base
• Frame : GI skid with corner / c channel
• Outer sheet : pre-coated with PC / powder coated inner
• Sheet : plain GI / pre coated / ss
• Panel thick : 25mm / 45mm
• Insulation : injected PUF @ 405 Kg/m3
• Static Pressure : 50mm to 200mm WG
• Types of Drive : Belt Driven / Plug Fan
• Types of Fan : Backward Curved / Forward Curved
• Filtration Stage Pre-Filter / Fine Filter / Bag Filter / HEPA Filter
• Filter Condition Differential Pressure Port
• Nos. of Damper SA / RA / FA / PA
• Type of Damper Aerofoil / GI Powder Coated

Types of Zone

• Inlet Lower with bird Screen
• Return Air Plenum with RA / FA Damper
• Pre-Filter Section / Bag Filter Section
• HW / Heater Section
• CHW / DX Coil Section
• Mist Eliminator
• Fan Section
• Fine Filter Section
• Super Flow Hepa Filter Section
