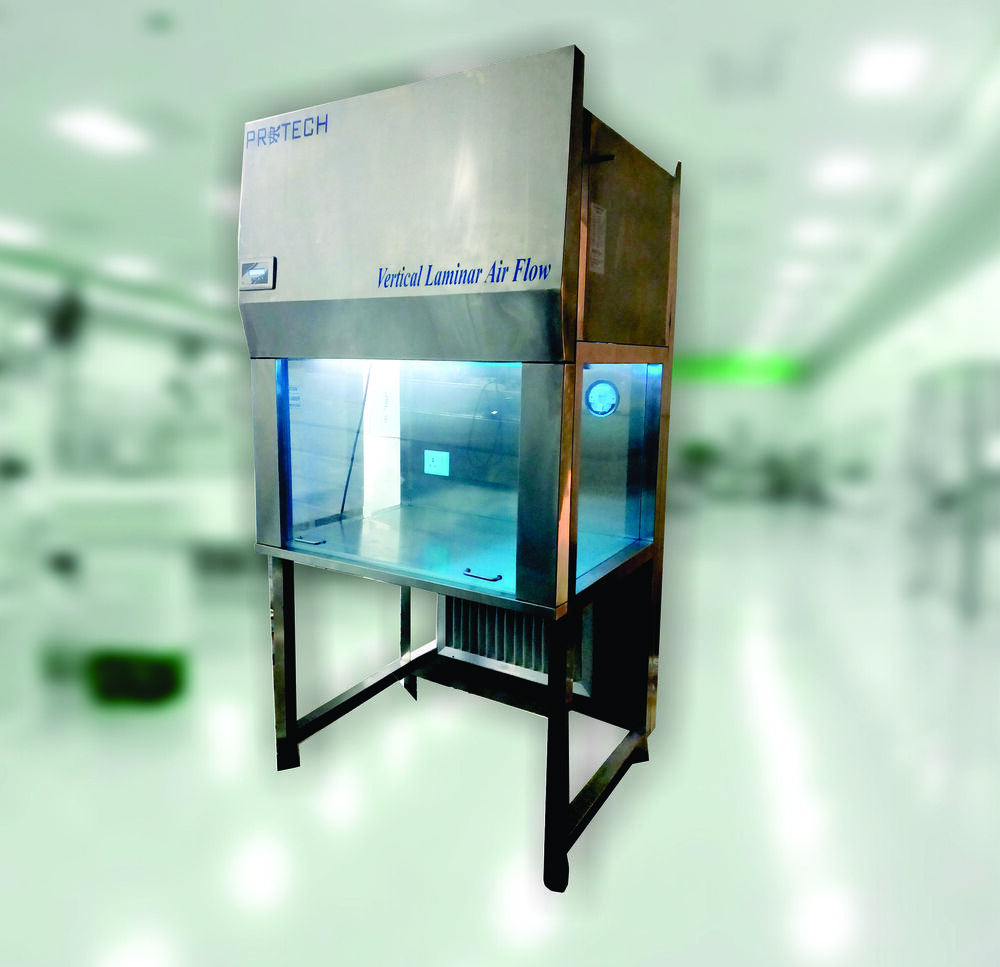

Mobile Laminar Airflow Unit

Product Description

Mobile Laminar Airflow Unitare safely transferring the product from sterile area to sterile area and non-sterile area. The unit is used in industrial manufacturing for protection of the product in areas like Pharmaceutical, Bio-tech industry, filling section, Assembling processes, Tissue culture and others.Further, the unit is ideal to protect product from particular contamination with the help of class 100 air & UV tube. Specification: HEPA Filter: Minipleated HEPA Filters down to 0.3 mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested. Pre-Filters: Pre-Filter down to 5 mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type). Blower Assembly: Dynamically and statically balanced blower and motor. Pressure Measurement: Magnehelic Gauge to check the pressure drop across the HEPA filter. Battery: UPS Provided Electrical: On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV);FL Light; UV Light Specification Cleanliness Class 100 / ISO CLASS 5 Flow Direction VERTICAL / HORIZONTAL Velocity at Grill 90 20 FPM (0.45 20 m/sec) Material of Construction External & Internal part with : SS-304 Working top with SS-304 HEPA Filter Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested Pre-Filters Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type) Side Wall Do with Glass Blower Assembly Dynamically and statically balanced blower and motor Electrical 1) On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV)2) FL Light3) U V Light Pressure Measurement Magnehalic Gauge to check the pressure drop across the HEPA filter Battey UPS Provided Leg With 4 Nos. Castor Wheel Power supply 230 V, 50Hz, Single Phase Documentation DQ, IQ, OQ Report
