Product Description
|
Working Area
|
:
|
As specified below
|
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Flow Direction
|
:
|
VERTICAL
|
|
Velocity at Grill
|
:
|
90 20 FPM (0.45 20 m/sec)
|
|
Material of Construction
|
:
|
External & Internal part with : MS Powder Coated / S.S. 304
Working top with SS-304
Centrifugal Blower & Filter housing : MS Powder Coated
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested
|
|
Pre-Filters
|
:
|
Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Side Wall
|
:
|
Do with Glass
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced blower and motor
|
|
Electrical
|
:
|
1) On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV)
2) FL Light
3) U V Light
|
|
Pressure Measurement
|
:
|
Magnehalic Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our factory tested only)
|

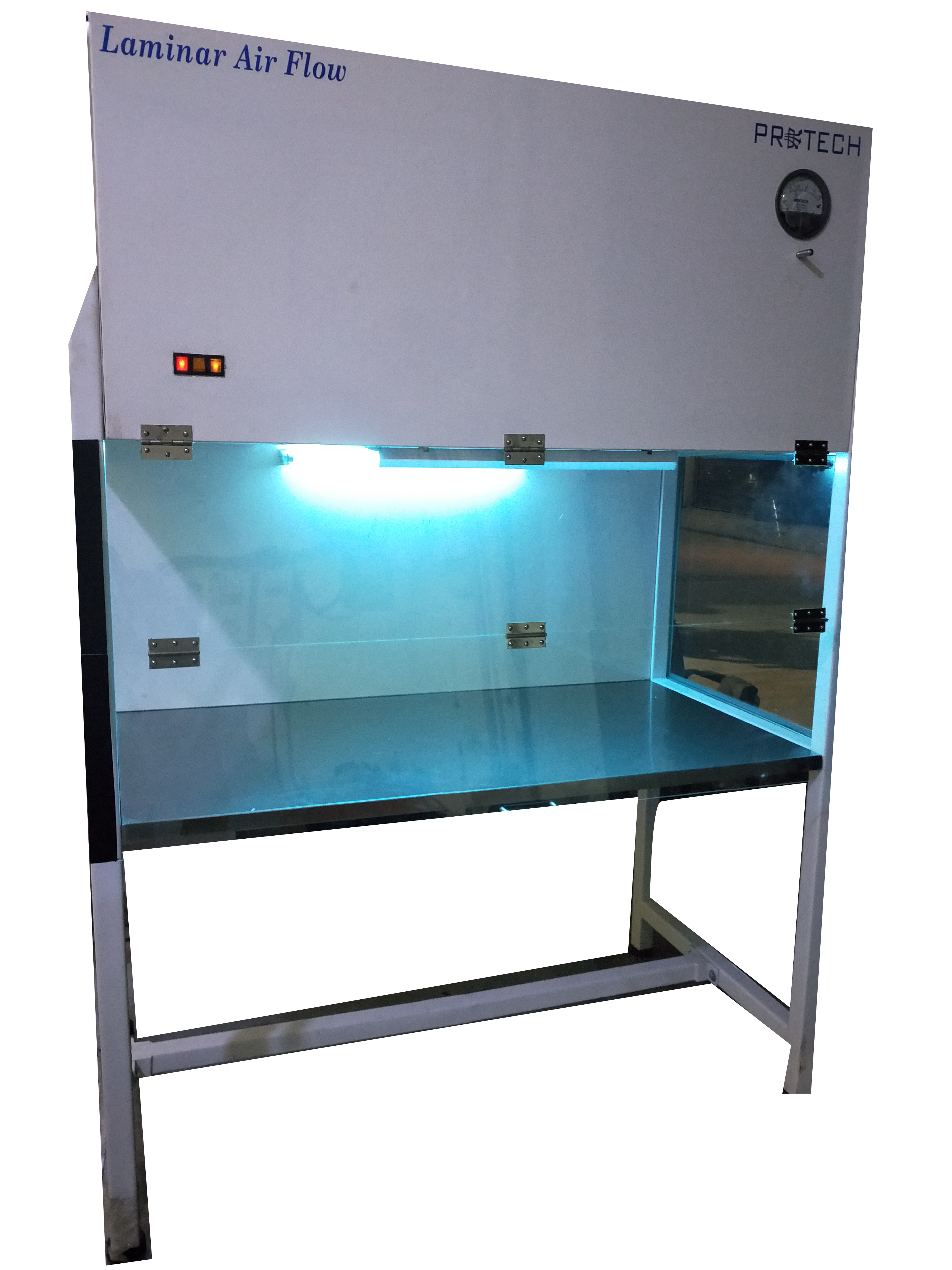

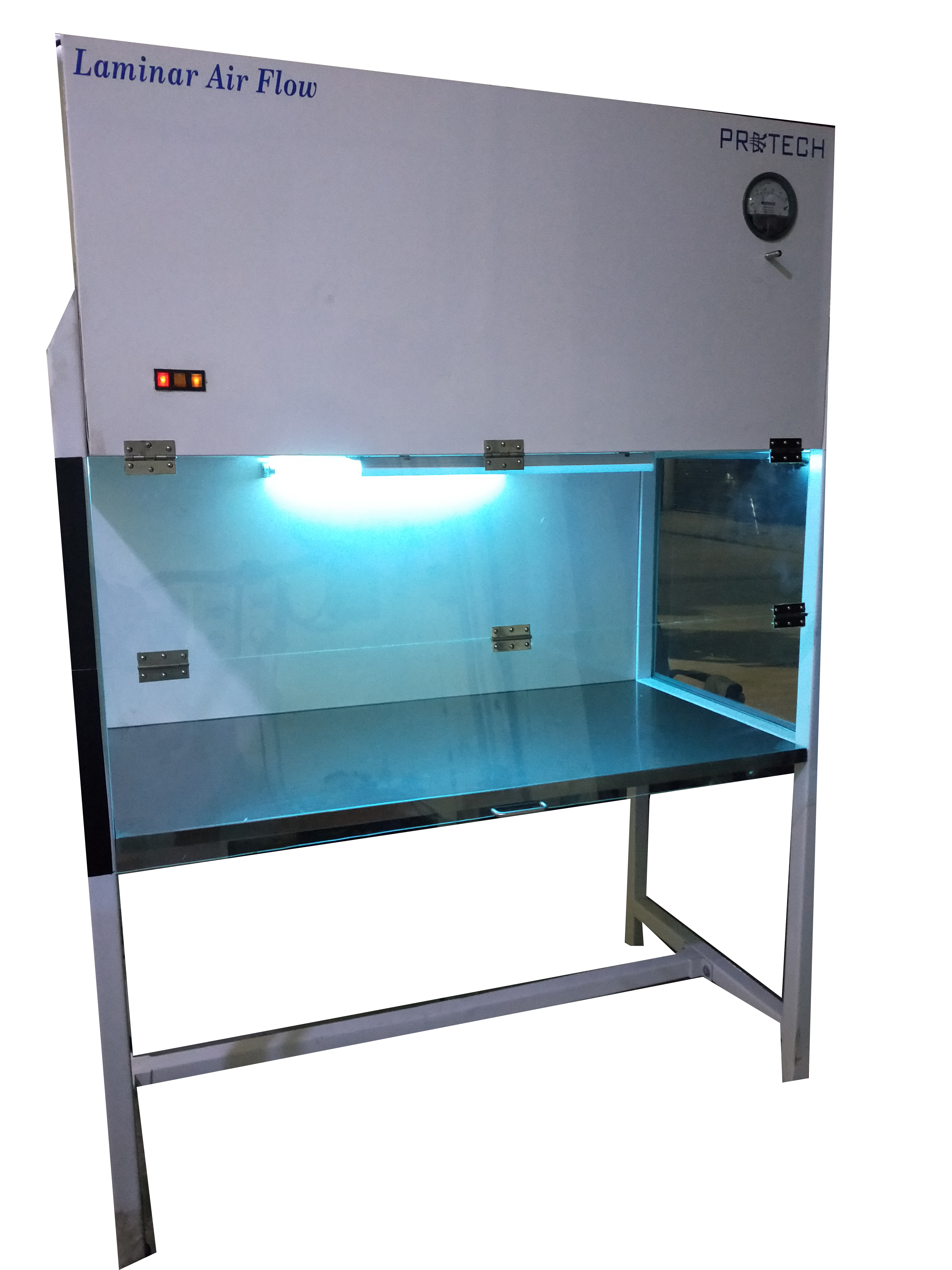

Vertical Laminar Airflow Benchoffered by us is extensively used in several industries including medicine, healthcare, pharmaceutical, electronic devices manufacturing, etc. This bench us carefully designed to prevent the contamination of the biological and semiconductor samples. It is equipped with a HEPA filter that provides clean and uncontaminated air in a smooth and laminar flow towards the users. Apart from this, our offered Vertical Laminar Airflow Bench can be availed from us at the market leading price range. Brand PROTECH Type Vertical Material Stainless Steel Surface Finish Polished Usage/Application Pharmaceutical Industry Voltage 230 V AC Working Area 3.5 m Air Cleanliness ISO Class 5 Air Velocity 0.45 +/- 0.05 m/s (90+/-20 FPM) Country of Origin Made in India Phase Single Phase EU5-Intermediate Filter 95% down to 5 Micron EU14 - HEPA Filter 99.999% down to 0.3 Micron Auxiliary Power Soket 15 A Features: Statically & Dynamically Balanced Motor-Blower with isolate to reduce noise level Fluorescent lights with milky white diffuser Differential Pressure Gauge On / Off Switches (BL/FL/UV) Auxiliary Power Socket : 5/15 amp for External Equipment DOP port DQ, IQ, OQ Documentation
FAQs of Vertical Laminar Airflow Bench:
Q: What is the frame material used in the Vertical Laminar Airflow Bench?
A: The frame material of the Vertical Laminar Airflow Bench is stainless steel.
Q: Which types of filters are available in the Vertical Laminar Airflow Bench?
A: The filters available in the Vertical Laminar Airflow Bench are HEPA Filter, Mini Pleat HEPA Filter, Pre Filter, and Fine Filter.
Q: What is the power consumption specification of the Vertical Laminar Airflow Bench?
A: The Vertical Laminar Airflow Bench requires 230 Volt, 50Hz, Single Phase power.
Q: What applications is the Vertical Laminar Airflow Bench suitable for?
A: The Vertical Laminar Airflow Bench is suitable for use in pharmaceutical industries, laboratories, microbiology, and life science laboratories.
Q: Are the dimensions of the Vertical Laminar Airflow Bench customizable?
A: Yes, the dimensions (L*W*H) of the Vertical Laminar Airflow Bench can be customized as per specific requirements.
