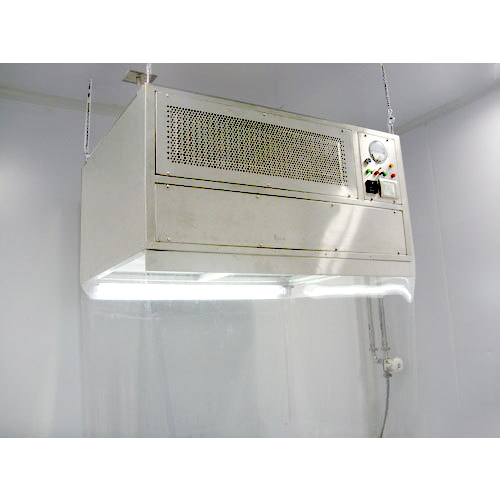

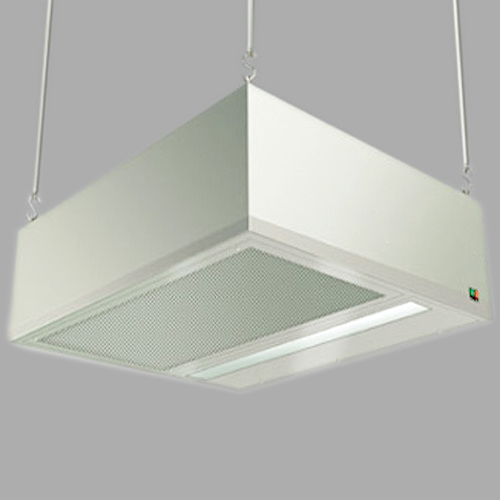

Product Description
For the protection for sterile/Filling machine in the pharmaceutical industries used where bacteria and particle can have a destructive effect on the product. The unit is supplied either to be mounted in the ceiling for adjustable chains or with legs, which optionally can be supplied with wheels.
Features:
- Less maintenance
- Excellent functionality
- Longer working life
Specification:-
Material:Available In GI and SS304
|
HEPA Area
|
:
|
As aspecified
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Velocity at Grill
|
:
|
90 20 FPM
|
|
MOC
|
:
|
External TOUCHING PART WITH : S.S.-304,
Internal BLOWER BODY, FILTER HOUSING, top cover plate WITH g i powder coated
|
|
HEPA Filter
|
:
|
Micro fiberglass paper media MINI pleated HEPA Filters down to 0.3mic. Particulate at an efficiency of 99.997% (H 14) duly tested on DOP.
|
|
Pre-Filters
|
:
|
Non-woven synthetic Pre-Filter down to 5mic. Particulate at an efficiency of 95% sandwiched between 2 layers of HDP Media.
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced motor and blower
|
|
Electrical
|
:
|
1) On/Off switch (bl / fl)
2) Fluorescent Light 1 No.
|
|
Pressure
Measurement
|
:
|
Meghnehalic Pressure Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Powder supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (oUR fACTORY TESTED ONLY)
|
Brochure
Send Inquiry
