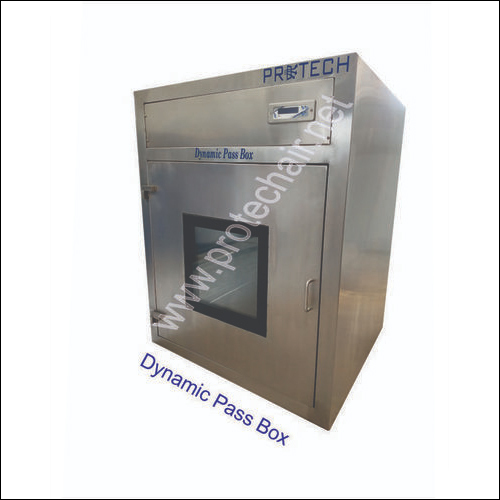

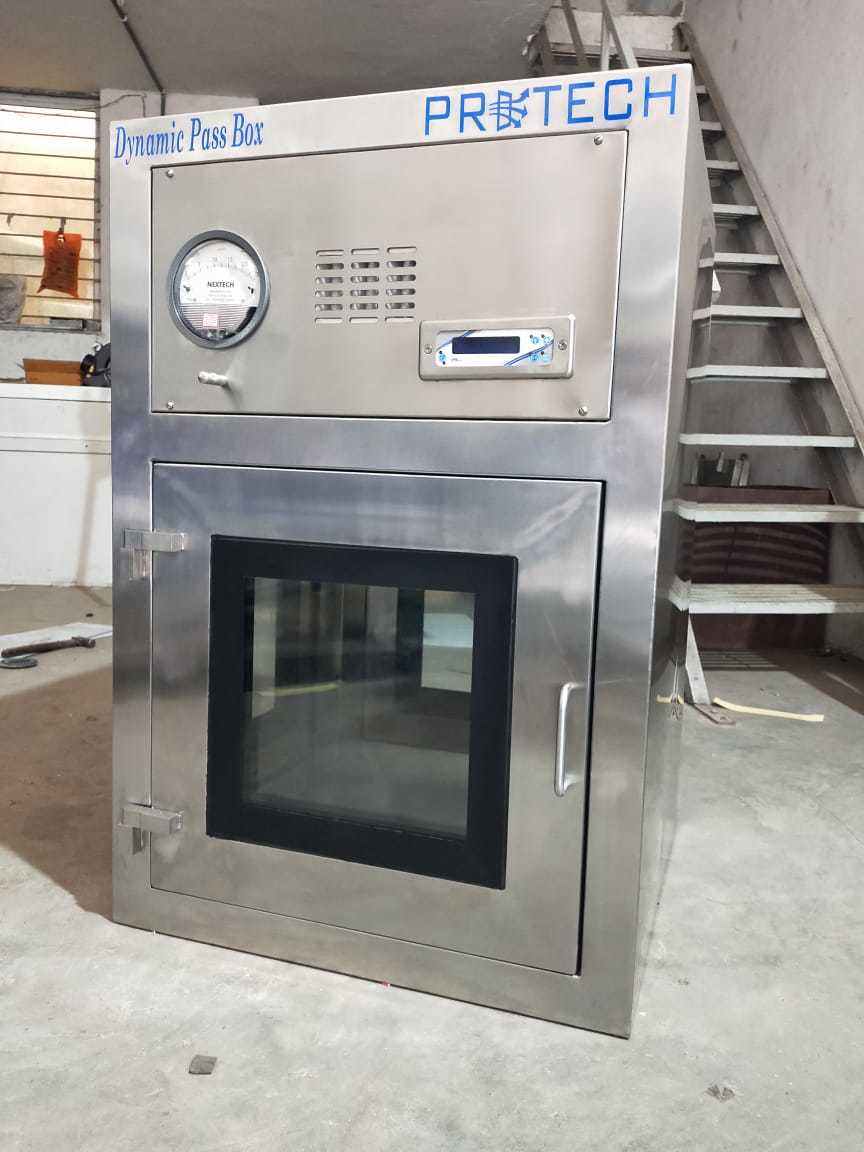

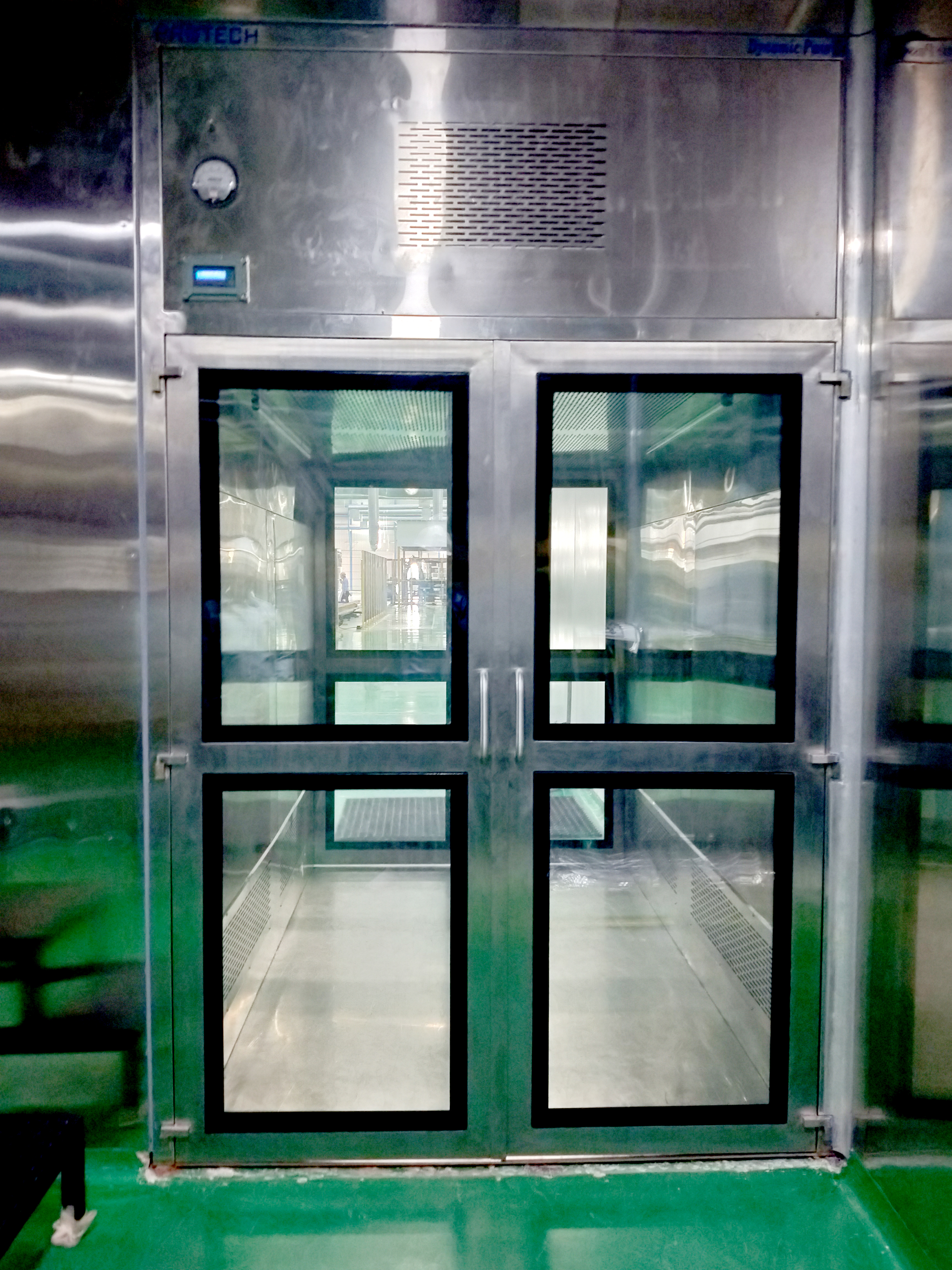

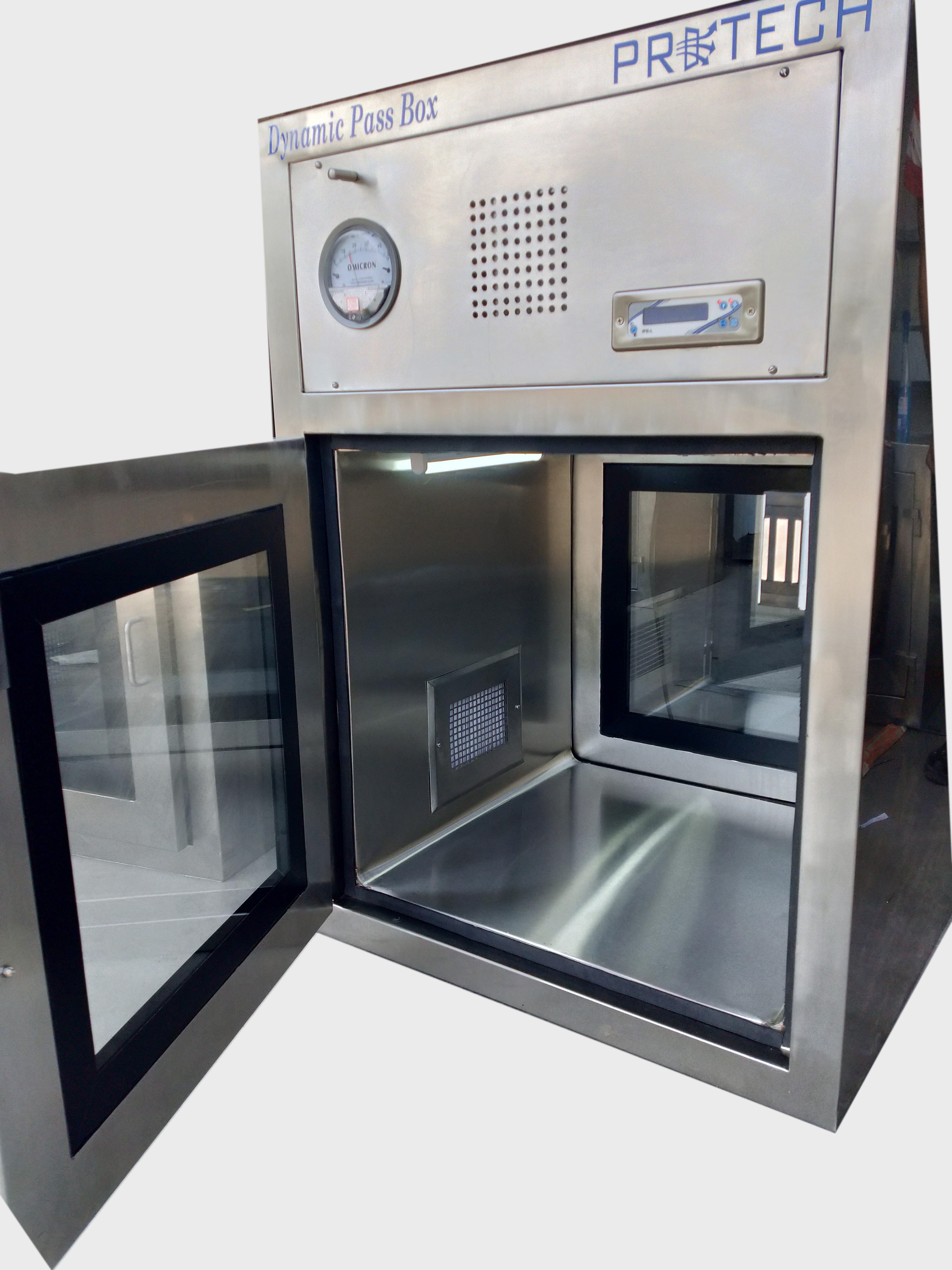

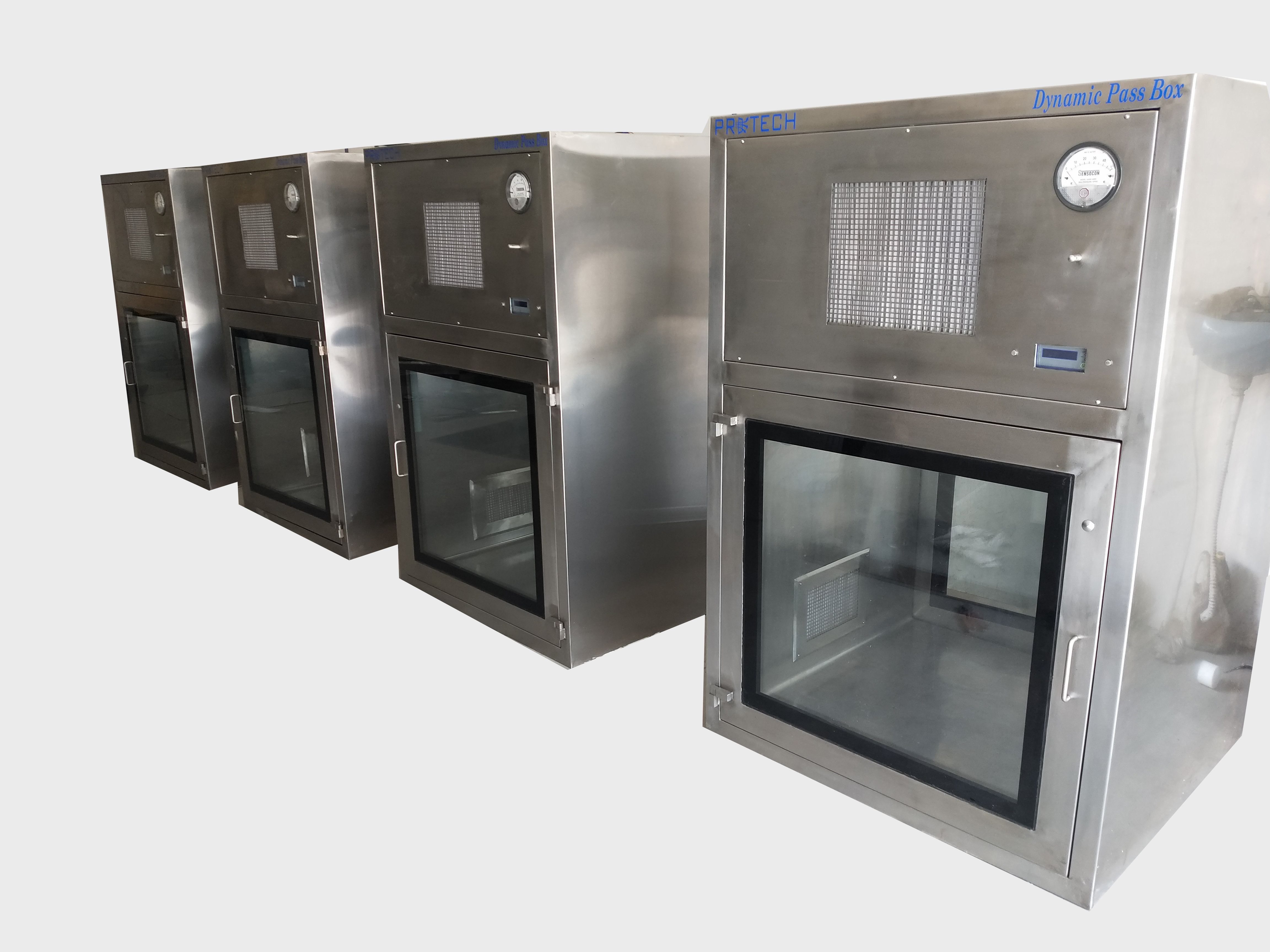

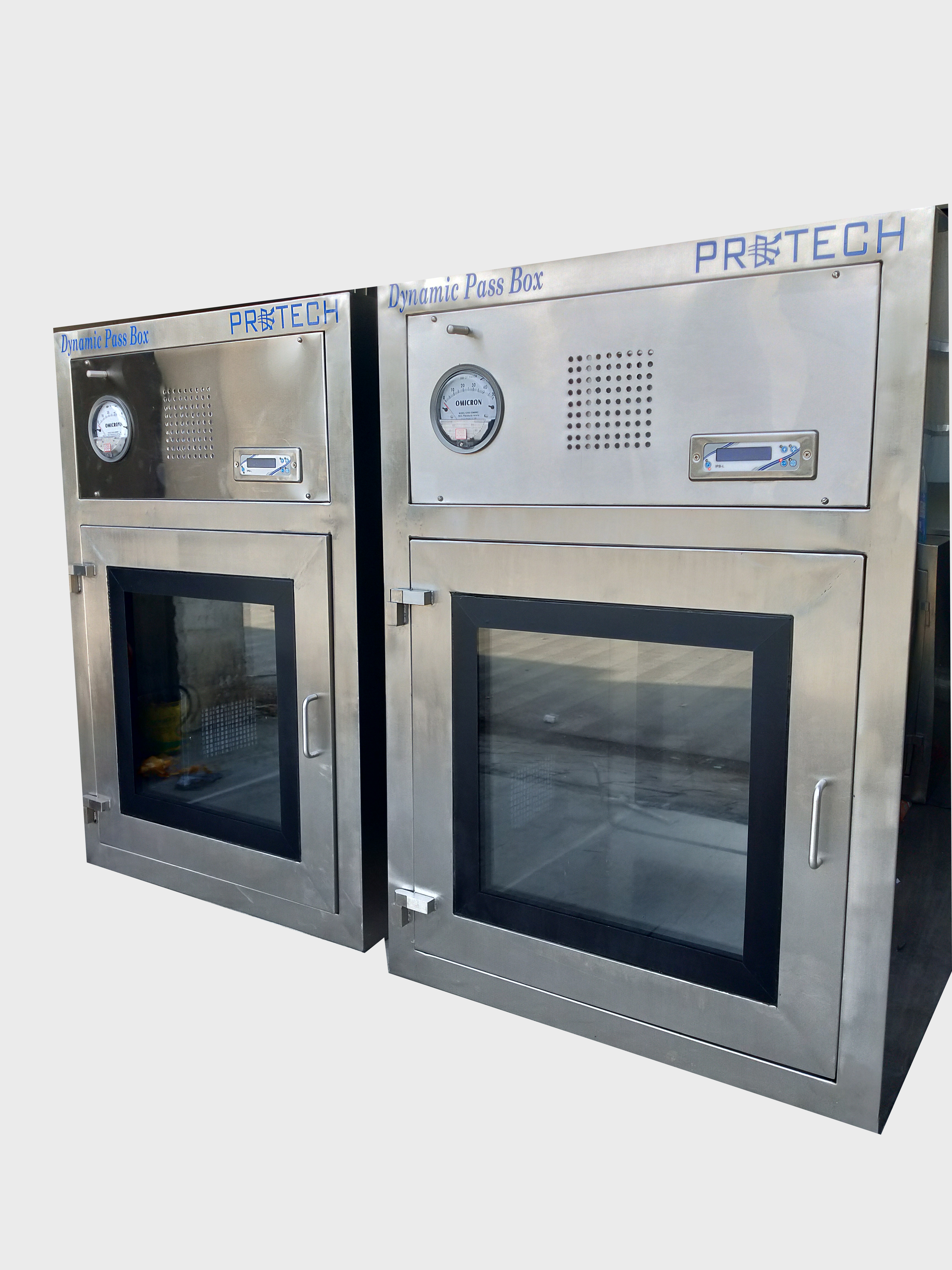

Dynamic Pass BoxÃÆâ are designed in conformation to the international standards and are used for transferring the material from and into the classified clean room without contaminating the air of clean room. In the process, room door is not require to open, these can be easily installed on the wall between the classified room and unclassified room.
- Door Opening With Solid State Electronic Inter Locking Mechanism.
- When both door closed; both are electrically Magnet locked.
- For open press touch screen to release the door.
- At A Time Only One Door Opened.
- Audio Indication for material is kept inside the pass box.
- In close condition of both door : UV Light will be on.
- When open any one door : UV will off and Fluorescent lights will on.
- Differential Pressure Gauge: 01 no. (HEPA Filter).
|Main Body - SS-304 |
Door - Double Skinned Swing Type Double Door with View Panel
Internal & External with SS-304 (Except Motor & Blower & Door Interlocking)
Micro Fiberglass Paper Media pleated HEPA Filters down to 0.3mic. Particulate at an efficiency of 99.997% (H14) duly tested on DOP tested Filter Casing is made up of Aluminum extrusion.
Non-woven synthetic media Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU6) Door - Double Skinned Swing Type Double Door with View Panel
Dynamically and statically balanced motor and blower
|1) On/Off Switch for BL |
2) Door Open / Release : Feather touch Digital Display Pane
U V Light
|Door Opening With Solid State Electronic Inter Locking Mechanism |
1No. Meghnehalic Pressure Gauge to check the pressure drop across the HEPA filter (Range : 0-25mm WG)
230 V, 50Hz, Single Phase
Technical specification :
- Air cleanliness : ISO class 5 / class 10 / m 3.5
- Area A velocities : 0.45ÃÆÆÃâÆÃÆâÃâÂ¢ÃÆÆÃâÂ¢ÃÆâÃââÃÆâÃâÂ¬ÃÆÆÃââ¦ÃÆâÃâÂ¡ÃÆÆÃâÆÃÆâÃââÃÆÆÃââÃÆâÃâÂ± 0.05mps (9 0 ÃÆÆÃâÆÃÆâÃâÂ¢ÃÆÆÃâÂ¢ÃÆâÃââÃÆâÃâÂ¬ÃÆÆÃââ¦ÃÆâÃâÂ¡ÃÆÆÃâÆÃÆâÃââÃÆÆÃââÃÆâÃâÂ± 20FPM)
- Air flow : horizontal / vertical
- Noise level : less than 65db
- Vibration level : minimum
- POWER SUPPLY : 230V AC, 1,50HZ
- MOC : GI Powder coated / SS-304 / SS-316 / COMBINATION
- Door swing type double door ( double skinned ) with view panel with SS hinges &ÃÆÆÃâÆÃÆâÃââÃÆÆÃââÃÆâÃâÂ¸ Handle internal coving for easy cleaning Two stage filtration
- EU7- intermediate filter (95% down to 0.3 micron)
- EU14- HEPA FILTER ÃÆÆÃâÆÃÆâÃâÂ¢ÃÆÆÃâÂ¢ÃÆâÃââÃÆâÃâÂ¬ÃÆÆÃââ¦ÃÆâÃâÂ¡ supply / exhaust (99.999% to 0.3 micron)
- Statically & dynamically balanced motor- blower with isolator to reduce noise level fluorescent lights ( interlocked with door )
- UV light ( interlocked with door)
- Differential pressure gauge: 01 no. (HEPA FILTER)
- Door opening with solid state electronic inter locking mechanism
- When both door closed ; both are elec. Magnet locked ;
- For open press touch screen to release the door ,
- At a time only one door opened ;
- Audio / visual indication for material is kept inside the pass box
- In close condition of both door ; UV light will be on ,
- When open any one door : UV will off and FL will on
- DOP port
- DQ, IQ, OQ, PQ documentation.
Options and accessories
A wide range of configuration to suit any containment application :
- Bottom with heavy roller base for drum / material transfer flush level with ground level
- Flange for one side flush mount in clean room partition / wall
- FLP electrical goods for explosion area
Overall dimension (WxDxH)
