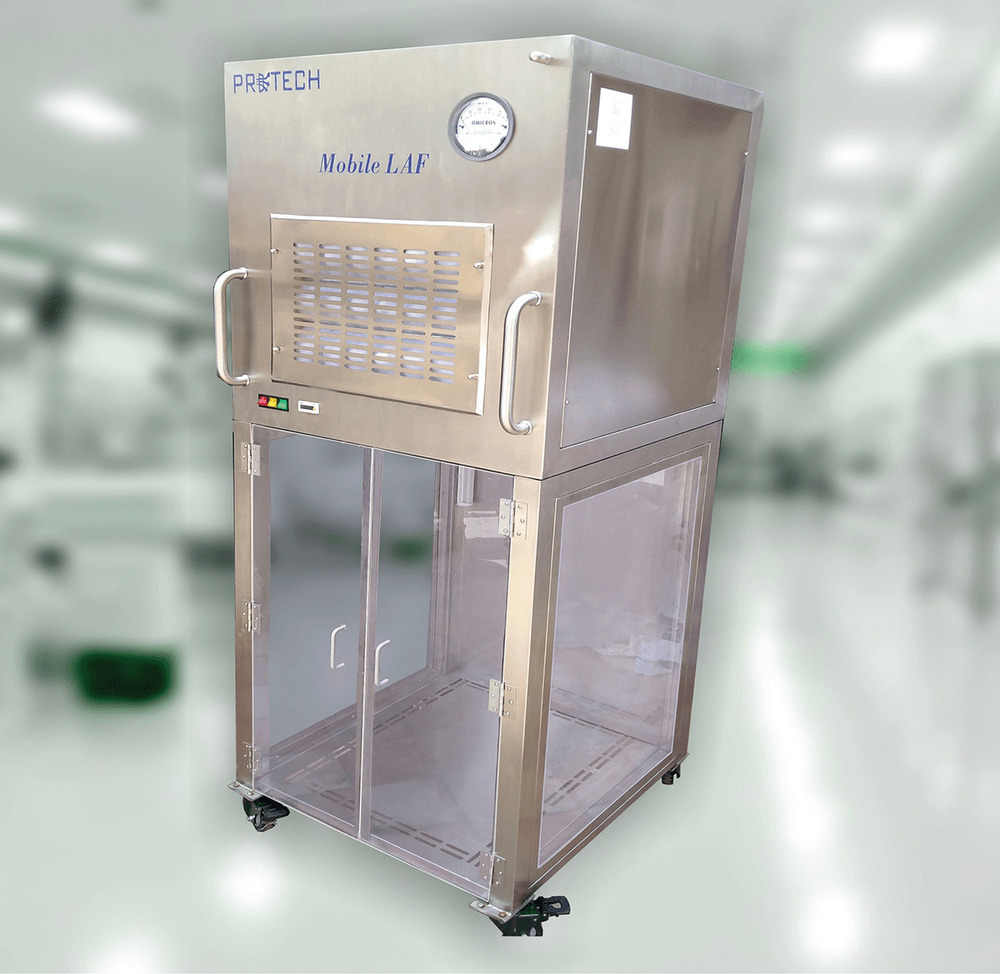

BATTERY OPERATED VERTICLE LAMINAR AIR FLOW UNIT
WORKING AREA: AS SPECIFIED (ISO CLASS 5 OR CLASS 100 AREA)
|
|
|
|
|
|
|
Working Area
|
:
|
As specified
|
|
Cleanliness
|
:
|
Class 100
|
|
Velocity at Grill
|
:
|
90 20 FPM
|
|
Material of Construction
|
:
|
External : SS-304, Internal : M. S. Powder Coated
|
|
HEPA Filter
|
:
|
Minipleat HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% duly tested on DOP
|
|
Pre-Filters
|
:
|
Pre-Filter down to 5mic. Particulate at an efficiency of 95% enclosed in frame with epoxy sealing
|
|
Castor Wheel
|
:
|
MOC : S.S.-304
|
|
Work Top
|
:
|
Work Platform with Perforated S.S.-304 Sheet
|
|
Side Panel & Door
|
:
|
Side Panel Do with Glass & Front door with acrylic sheet
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced in-built motor and blower
|
|
Electrical
|
:
|
1) Feather Touch On/Off Panel
2) Fluorescent Light
3) U V Light
|
|
Pressure Measurement
|
:
|
Meghnehalic Pressure Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Powder supply
|
:
|
230 V, 50Hz, Single Phase
|
|
|
|
Battery Back-Up (100 AH-SMF) and Inverter Mechanism (850 VA)
|
|
|
|
Battery Operation - Max. 1 Hour
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our Factory Tested Only)
|
