Product Description
|
HEPA Area
|
:
|
As aspecified
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Velocity at Grill
|
:
|
90 20 FPM
|
|
MOC
|
:
|
AS SPECIFIED BELOW
|
|
HEPA Filter
|
:
|
Micro fiberglass paper media MINI pleated HEPA Filters down to 0.3mic. Particulate at an efficiency of 99.99% (H 14) duly tested on DOP.
|
|
Pre-Filters
|
:
|
Non-woven synthetic Pre-Filter down to 5mic. Particulate at an efficiency of 95% sandwiched between 2 layers of HDP Media.
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced motor and blower
|
|
Electrical
|
:
|
3MT. WIRE WITH PLUG SOCKET
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our Factory Tested Only)
|

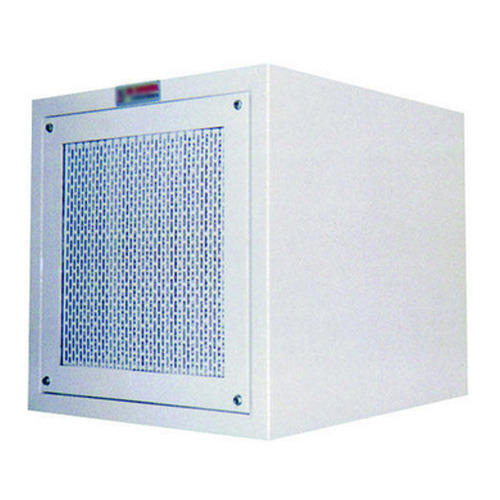

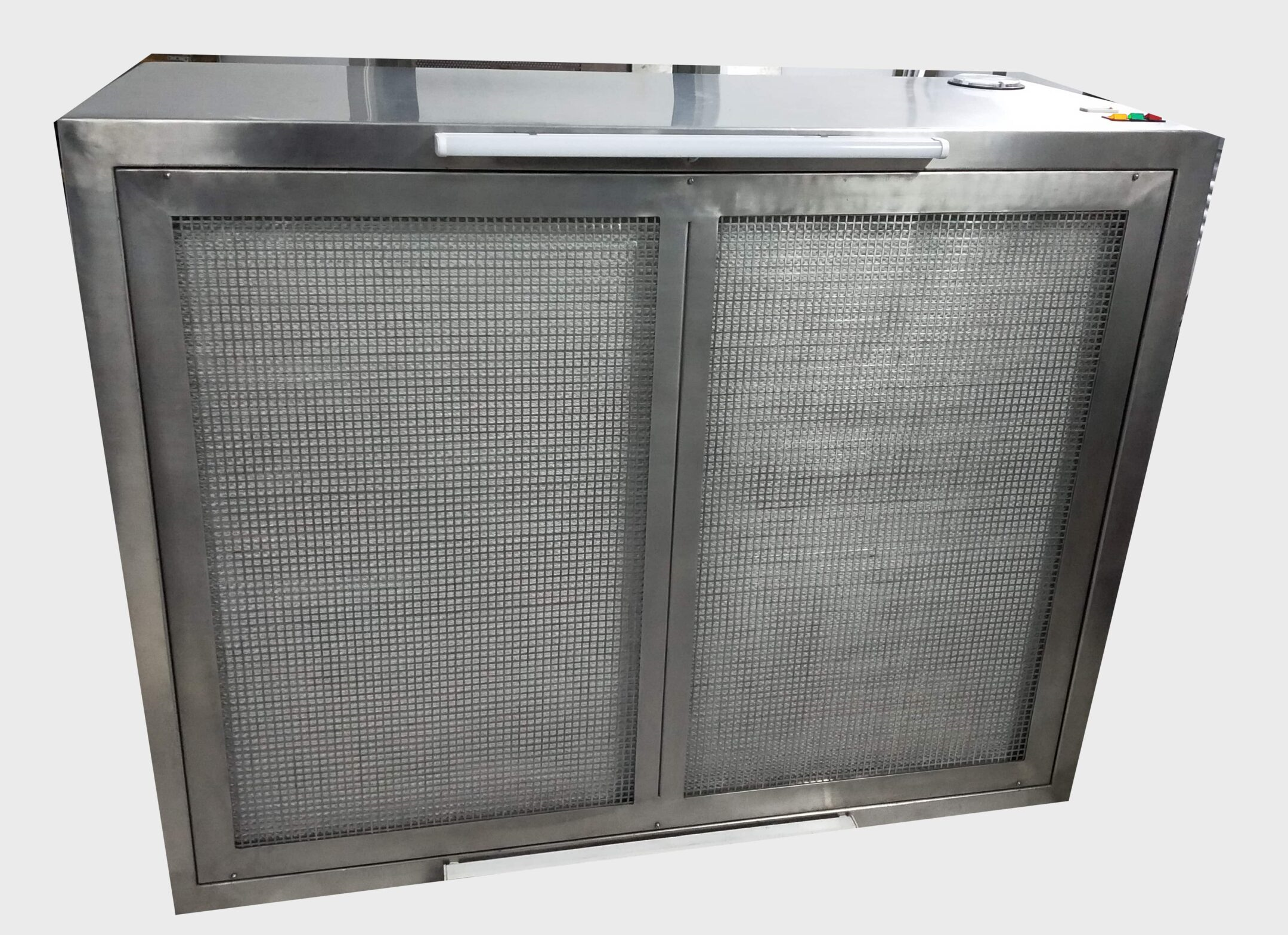

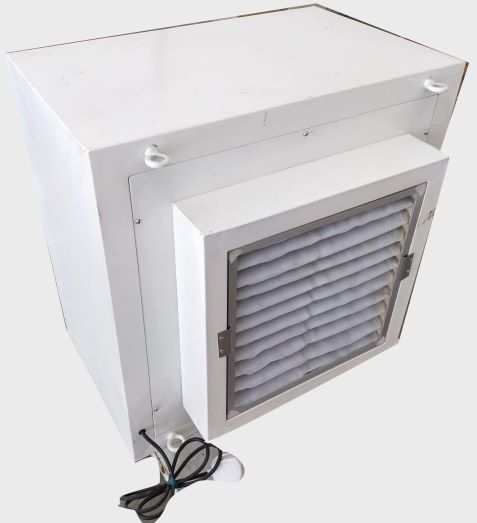

Positive Pressure ModulePositive Pressure Module that we are offering are used to provide the clear and purified air in small chamber or enclosure. Typically, these modules are the advanced equipment, which is provided with the machines, filter like HDPE filter, etc. responsible for air purification. Having assembled using the advanced tools and machines at our full-fledged production site, these pressure modules are sure to function for the long time period. Specification/Additional Details Weight30 kg Frequency50 Hz Voltage230 V Size915 mm x 610 mm PhaseSingle Phase Air Volume0.45+/- 0.05 m/s
FAQs of Positive Pressure Module:
Q: What materials are used in the construction of the Positive Pressure Module?
A: The Positive Pressure Module is constructed using stainless steel for both the main material and its frame material.
Q: What type of filter does this module use?
A: The module is equipped with Mini pleated HEPA filters that filter down to 0.3 microns at an efficiency of 99.997% (EU14). These filters are DOP-tested for performance.
Q: What are the power specifications for this module?
A: The Positive Pressure Module operates on a power consumption of 230V, 50Hz, 1-phase supply.
Q: Is the lighting feature customizable for this module?
A: Yes, the lighting feature can be customized as per specific requirements.
Q: What industries and applications is the Positive Pressure Module suitable for?
A: The module is suitable for use in pharmaceutical industries, laboratories, microbiology, and life science laboratories.
