Product Description

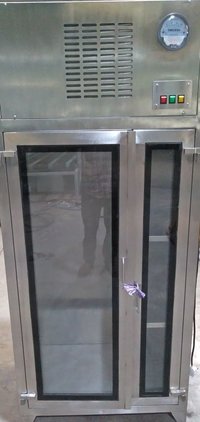

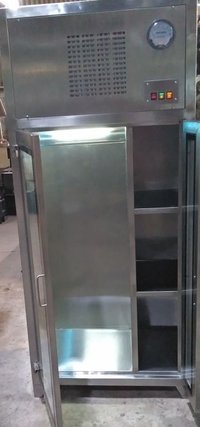

PROTECH" Sterile Garment Storage Cabinet , which is used for storage of Clean apparel for clean rooms as these are equipped with HEPA filter and UV germicidal tube. There for these are safe and ensure that the garments completely free from bacterial contamination.
Technical Specifications
- Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
- Air Velocities : 0.45 0.05 mps (90 20 FPM)
- Air Flow : Horizontal / Vertical
- Noise Level : Less than 65 dB
- Vibration Level : Minimum
- POWER SUPPLY : 230V AC, 1-, 50HZ
- MOC : GI Powder Coated / SS-304 / SS-316
- Two Stage filtration
- EU7 - Intermediate Filter (95% down to 3 micron)
- EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
- Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
- Fluorescent Lights
- UV Light with house meter (interlocked with Door)
- When Door will be Open, UV OFF; Door in Close, UV will ON
- Differential Pressure Gauges : 01 No. (HEPA Filter)
- ON/OFF Switches (BL / FL)
- DOP Port
- DQ, IQ, OQ, PQ Documentation
Options and Accessories
A wide range of configurations to suit any containment application: -
- Rigid Barrier (Flexible PVC Strip / Poly carbonate / Acrylic Sheet)
- Velocity display with High / Low Alarms
- Filter chocking alarms
|
Model
|
Working Area( wxdxh)
|
Overall dimension WXDXH
|
|
PGSC-35
|
900 x 450 x 1220
|
915 x 460 x 1680 (Wall Mount)
|
|
PGSC-36
|
900 x 450 x 1830
|
915 x 460 x 2400 (Floor Mount)
|
