Product Description
|
Working Area
|
:
|
As Spc. Below
|
|
|
Cleanliness
|
:
|
Class 100000 / ISO 8
|
|
Material of Construction
|
:
|
Main Structure do with GI Powder Coated construction / S.S. 304
Inside Working Area : GI Powder Coated / S.S 304
Bottom do with Aluminum Checker Plate
Both Side Entry / Exit Door : S.S / GI Powder Coated duly Double Skinned
|
|
Bottom Base
|
:
|
Do with MS Painted Channel
|
|
Velocity at Nozzle
|
:
|
15 5 M/S
|
|
Blower Assembly
|
:
|
Statically and dynamically balanced Motor & Blower, designed for supply of sufficient capacity and static pressure to take care of airflow
|
|
Doors
|
:
|
Swing Door, Micro-processor controlled electromagnetic inter locking doors with glass panels. (Comprising with Door Closure, D Handle, Ball Bearing Hinges)
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.999% (H14) duly tested on PAO tested
|
|
Make-up Air Filter
|
:
|
Pre-Filter down to 10 mic. Particulate at an efficiency of 90% (EU4) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Return Air Filter
|
:
|
Fine-Filter down to 5mic. Particulate at an efficiency of 95% (EU5) enclosed in aluminum frame with epoxy sealing (Disposable Type)
|
|
Nozzle
|
:
|
With S.S. 304
|
|
Door Interlocking
|
:
|
Door Opening with Solid State Electronic Inter Locking Mechanism
|
|
Power supply
|
:
|
440 V, 50Hz, Three Phase
|
|
Operation Sequence
|
:
|
Detail of logic Sequence:
|
|
|
|
First Cycle of operation : -
|
|
|
|
v When D1 & D2 are Closed (Both Door are in locked condition)
Blower in off condition
|
|
|
|
v When D1 is Opened (Door D2 gets locked condition)
Blower in off condition
|
|
|
|
v When D1 is closed (Door D2 still in locked condition)
Blower will be on when both doors are in locked condition
|
|
|
|
v Blower motor (As per timer setting) gets off and then Door D2 gets opened / unlocked, D1 in locked condition
|
|
|
|
v Door D2 is closed condition
|
|
|
|
v Door D1 / D2 gets opened / unlocked
|
|
|
|
v At a time only one door can opened
|
|
|
|
v Emergency Stop/Unlock Button provided at Entry/Exit/Inside chamber
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our Factory Tested Only)
|

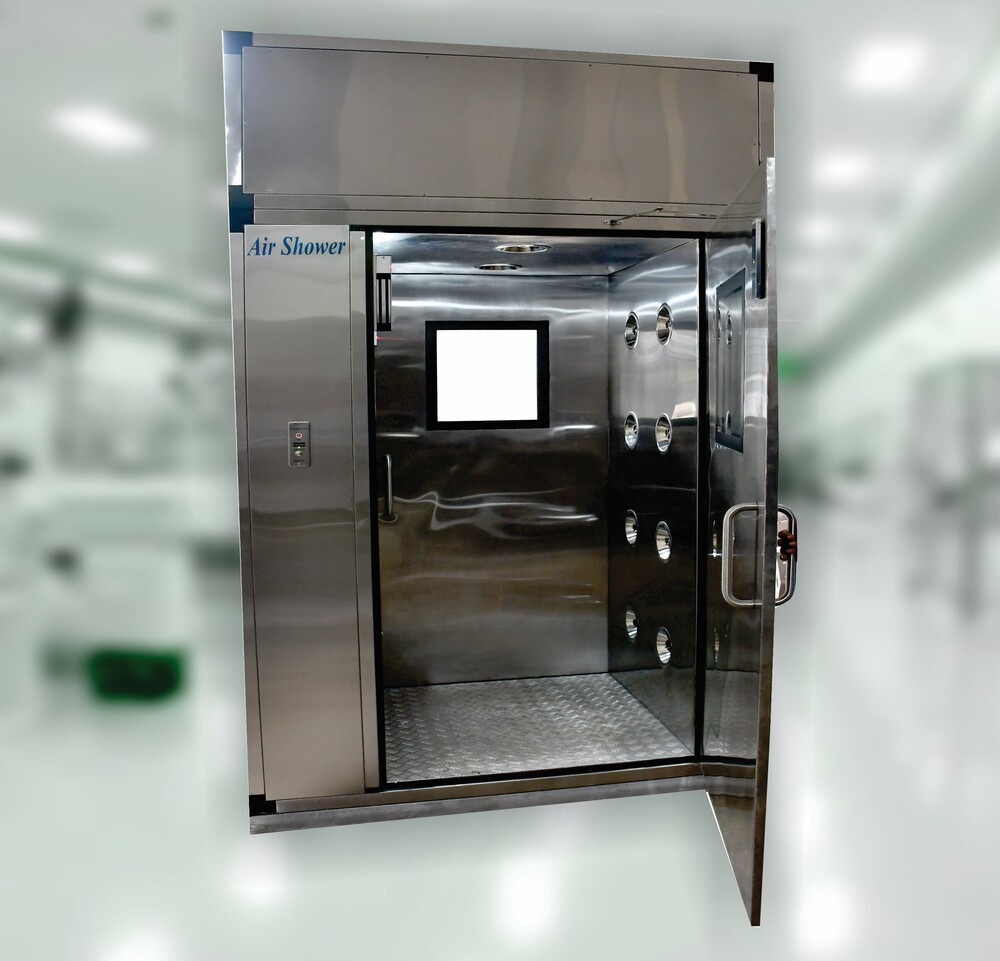

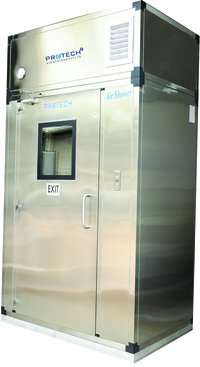

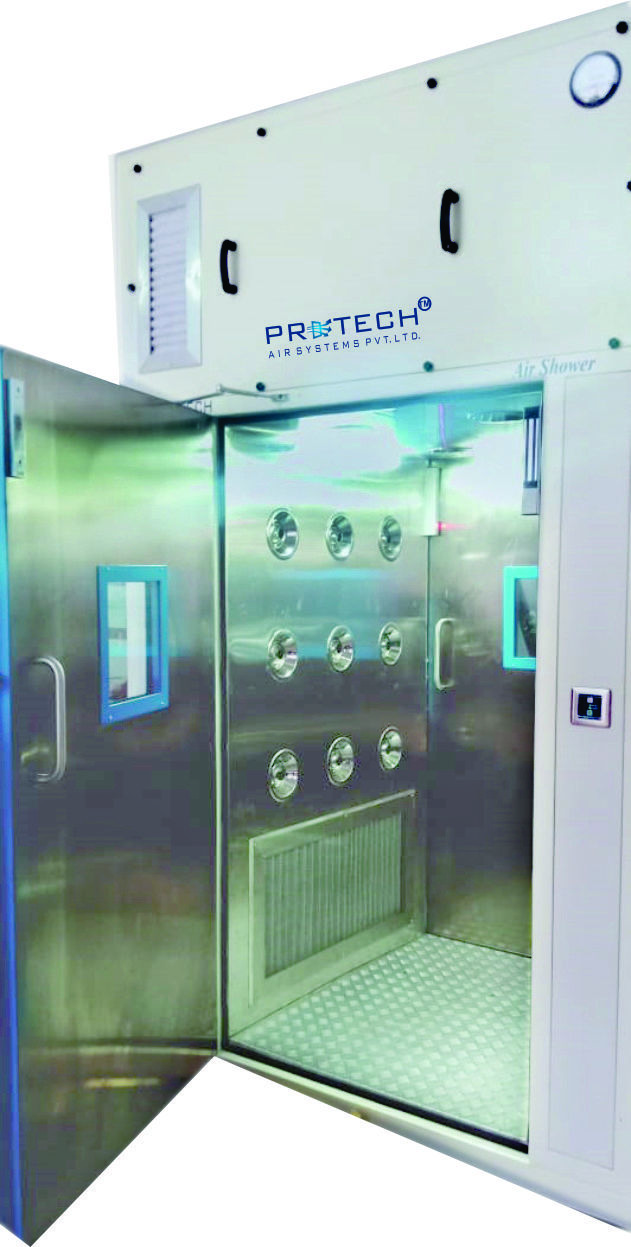

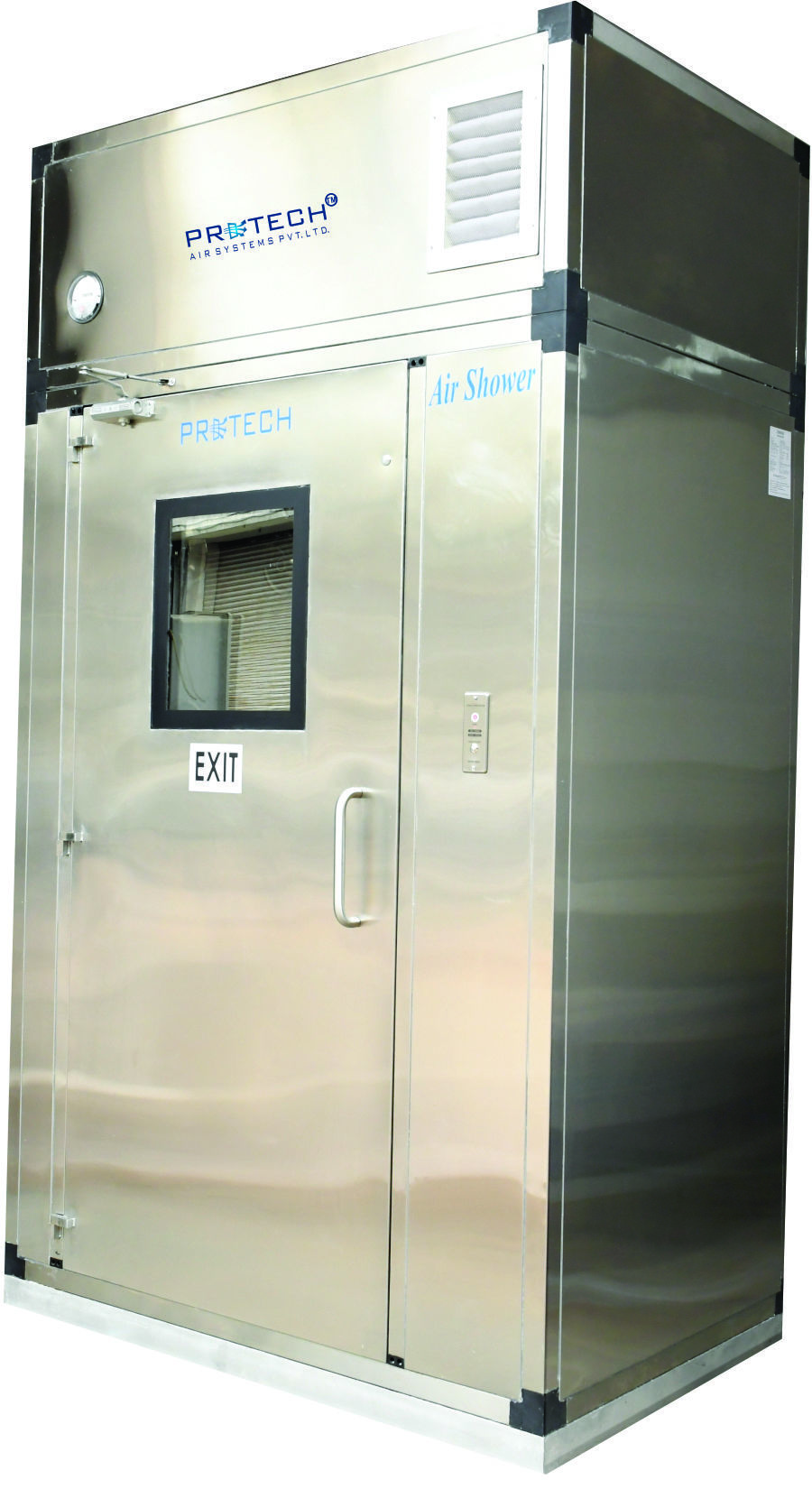

Air Shower that we are offering is widely appreciated owing to its top-notch design and extended durability. The shower is used in several industrial applications in order to purify the air by filtering out the unwanted particles and contaminants present in the filter. The equipment is used with industrial air purifiers and AHU (air handling unit), which are employed in buildings like warehouses, office, industry, etc to regulate the air conditions such as moisture level, and humidity. Furthermore, we are offering Air Shower to our patrons at the market leading price. Technical Specifications Air cleanliness : ISO class 5 / class 100 / M 3.5 AREA Air velocities : 20 5 mps (4000 1000 FPM) Air flow : horizontal / vertical Noise level : minimum Vibration level : minimum POWER SUPPLY : 440V AC, 3-,50HZ MOC : GI powder coated /SS -304 / SS-316 / combination Structure : all external panel are double skinned duly PUF insulated Door : double skinned with view panel, door closer & handle Two stage filtration EU7- intermediate filter (95% down to 0.3 micron ) EU14 - hepa filter - supply / exhaust (99.999% down to 0.3 micron) Statically & dynamically balanced motor-blower with isolator to reduce noise level Fluorescent lights Differential pressure gauge : 01 No.(hepa filter ) Auto / manual operation ON/OF switches (BL / FL) DOP port DQ, IQ,OQ, PQ Documentation Options and accessories A wide range of configurations to suit any containment application: Once side entry / both side entry Top blower / side blower arrangement (height consul) velocity display with high / low alarms filter chocking alarms FLP electrical goods for explosion Model Nos. Of person Working area Overall dimension (WxDxH) AUS-30/36 01 760x900x2000 1360x1000x2850 AUS-36/36 01/02 900x900x2000 1500x1000x2850
FAQs of Air Shower:
Q: What material is used for the frame and body of the Air Shower?
A: The frame and body of the Air Shower are made of stainless steel.
Q: What type of filters are included in the Air Shower?
A: The Air Shower includes a HEPA Filter, Suction Pre Filter, Fresh Air Pre Filter, and Supply HEPA Filter.
Q: What is the airflow capacity of the Air Shower?
A: The Air Shower provides nozzle-through airflow with a capacity of 1200 ft3/min (CFM).
Q: What are the dimensions of the Air Shower, and how many people can use it at a time?
A: The Air Shower has dimensions of 900 x 900 x 1830 millimeters (mm) and is suitable for one to two persons at a time.
Q: What type of door is included in the Air Shower?
A: The Air Shower is equipped with a double-skinned swing-type double door with a view panel.
Q: What are the lighting options included in the Air Shower?
A: The Air Shower features UV lighting and FL (fluorescent) lighting.
Q: What industries or applications is the Air Shower designed for?
A: The Air Shower is designed for clean room applications in industries such as pharmaceutical companies, hospitals, and engineering companies.
