Product Description
|
Working Area
|
:
|
As Spc. Below
|
|
|
Cleanliness
|
:
|
Class 100000 / ISO 8
|
|
Material of Construction
|
:
|
Main Structure do with GI Powder Coated construction / S.S. 304
Inside Working Area : GI Powder Coated / S.S 304
Bottom do with Aluminum Checker Plate
Both Side Entry / Exit Door : S.S / GI Powder Coated duly Double Skinned
|
|
Bottom Base
|
:
|
Do with MS Painted Channel
|
|
Velocity at Nozzle
|
:
|
15 5 M/S
|
|
Blower Assembly
|
:
|
Statically and dynamically balanced Motor & Blower, designed for supply of sufficient capacity and static pressure to take care of airflow
|
|
Doors
|
:
|
Swing Door, Micro-processor controlled electromagnetic inter locking doors with glass panels. (Comprising with Door Closure, D Handle, Ball Bearing Hinges)
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.999% (H14) duly tested on PAO tested
|
|
Make-up Air Filter
|
:
|
Pre-Filter down to 10 mic. Particulate at an efficiency of 90% (EU4) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Return Air Filter
|
:
|
Fine-Filter down to 5mic. Particulate at an efficiency of 95% (EU5) enclosed in aluminum frame with epoxy sealing (Disposable Type)
|
|
Nozzle
|
:
|
With S.S. 304
|
|
Door Interlocking
|
:
|
Door Opening with Solid State Electronic Inter Locking Mechanism
|
|
Power supply
|
:
|
440 V, 50Hz, Three Phase
|
|
Operation Sequence
|
:
|
Detail of logic Sequence:
|
|
|
|
First Cycle of operation : -
|
|
|
|
v When D1 & D2 are Closed (Both Door are in locked condition)
Blower in off condition
|
|
|
|
v When D1 is Opened (Door D2 gets locked condition)
Blower in off condition
|
|
|
|
v When D1 is closed (Door D2 still in locked condition)
Blower will be on when both doors are in locked condition
|
|
|
|
v Blower motor (As per timer setting) gets off and then Door D2 gets opened / unlocked, D1 in locked condition
|
|
|
|
v Door D2 is closed condition
|
|
|
|
v Door D1 / D2 gets opened / unlocked
|
|
|
|
v At a time only one door can opened
|
|
|
|
v Emergency Stop/Unlock Button provided at Entry/Exit/Inside chamber
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our Factory Tested Only)
|

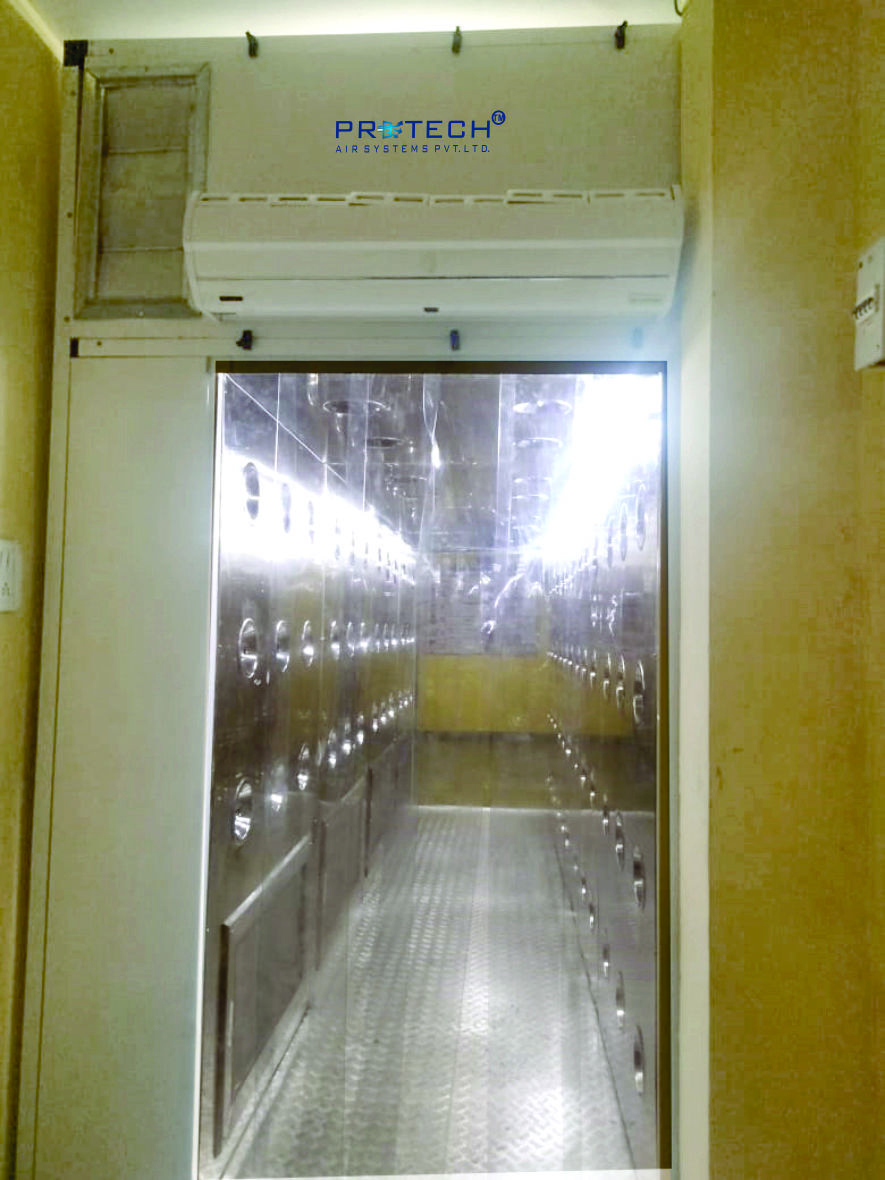

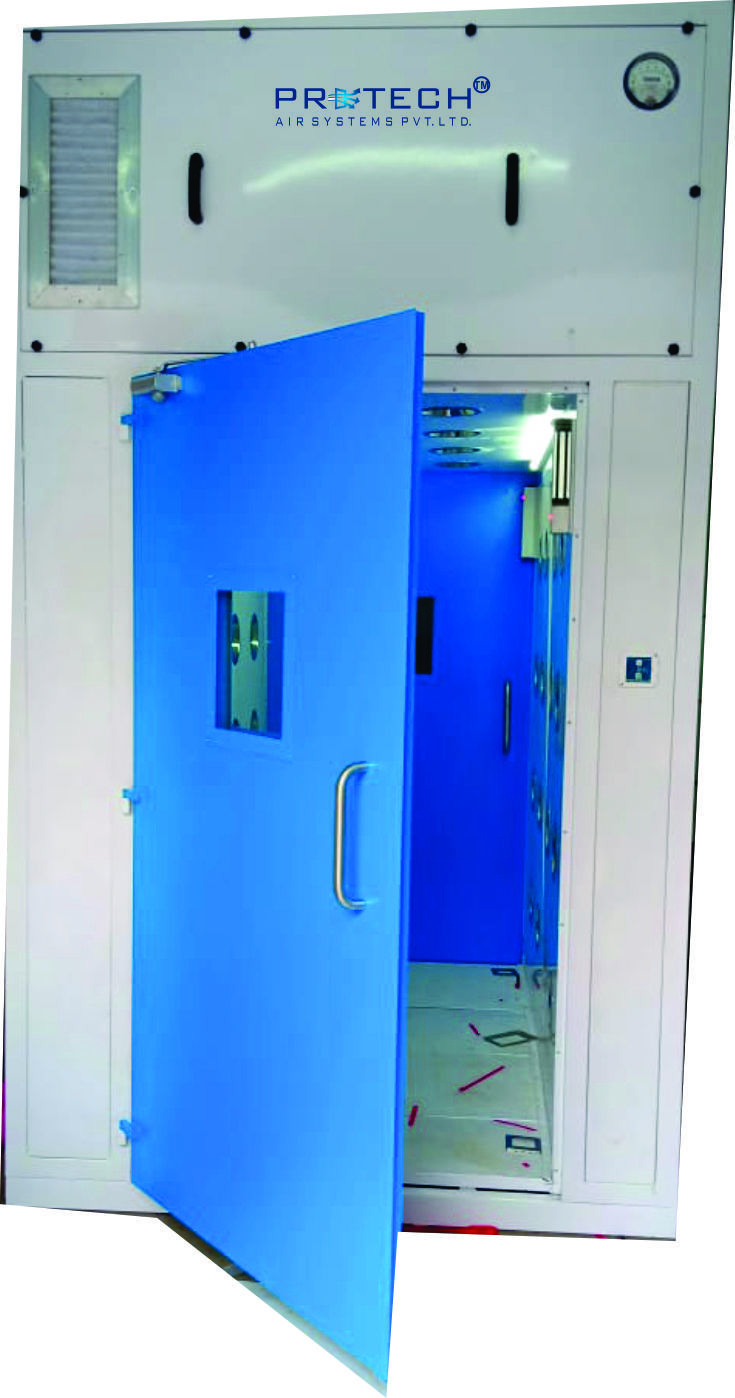

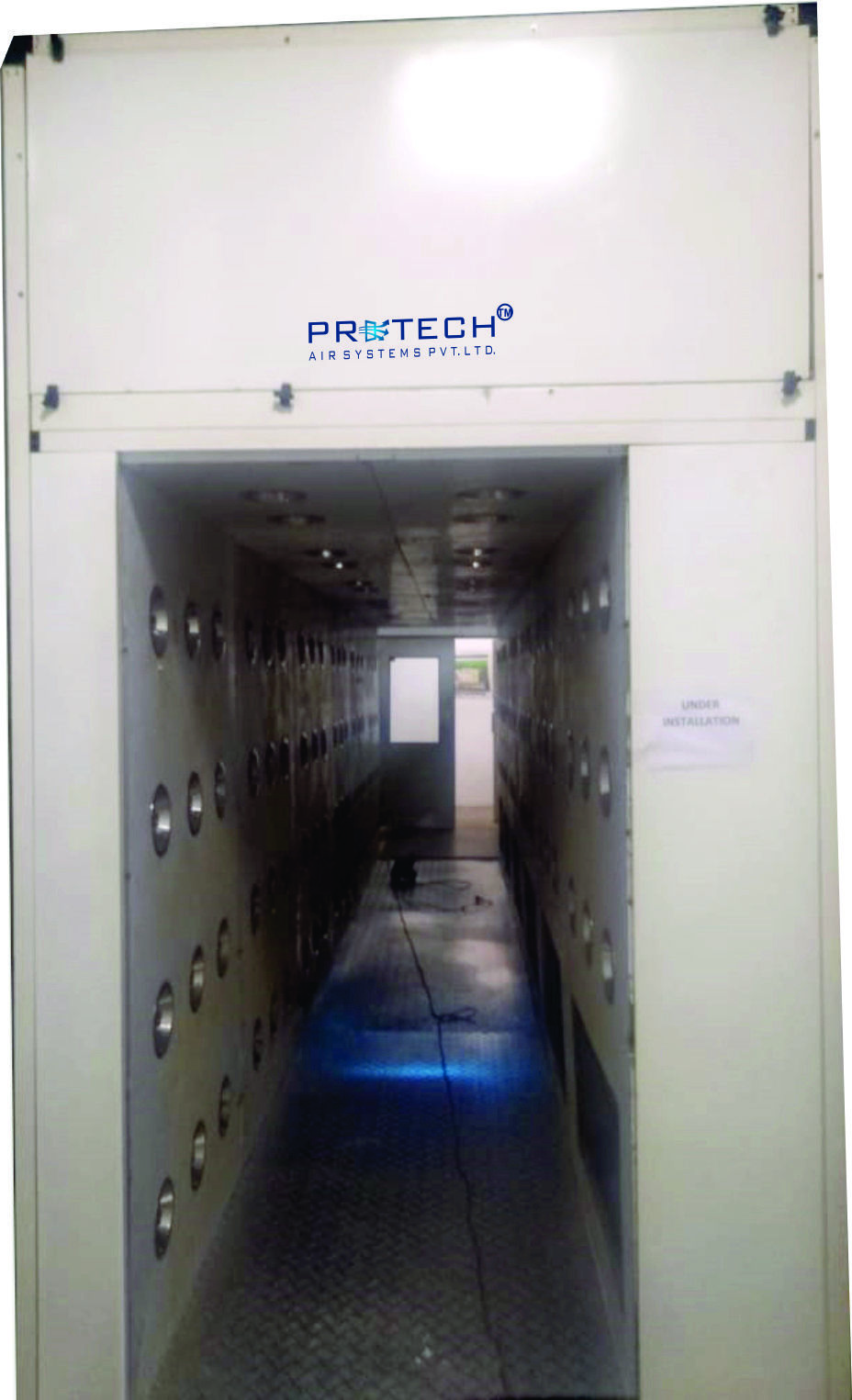

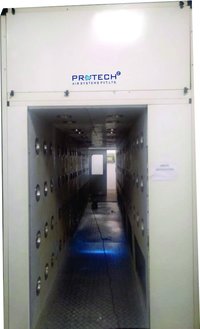

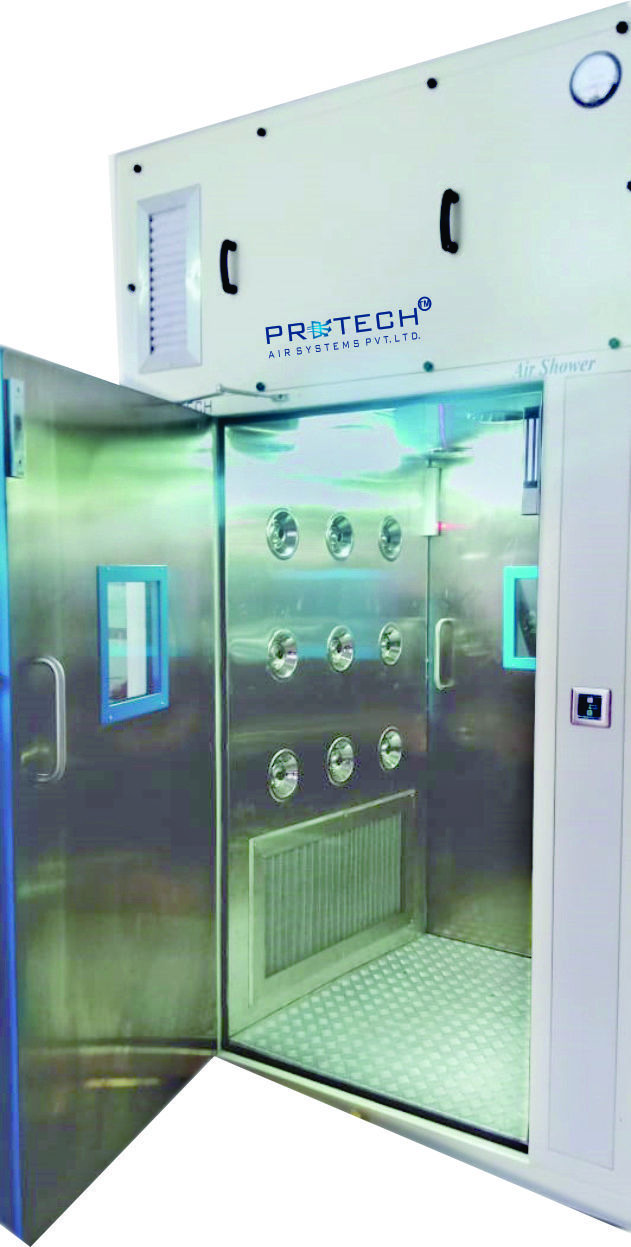

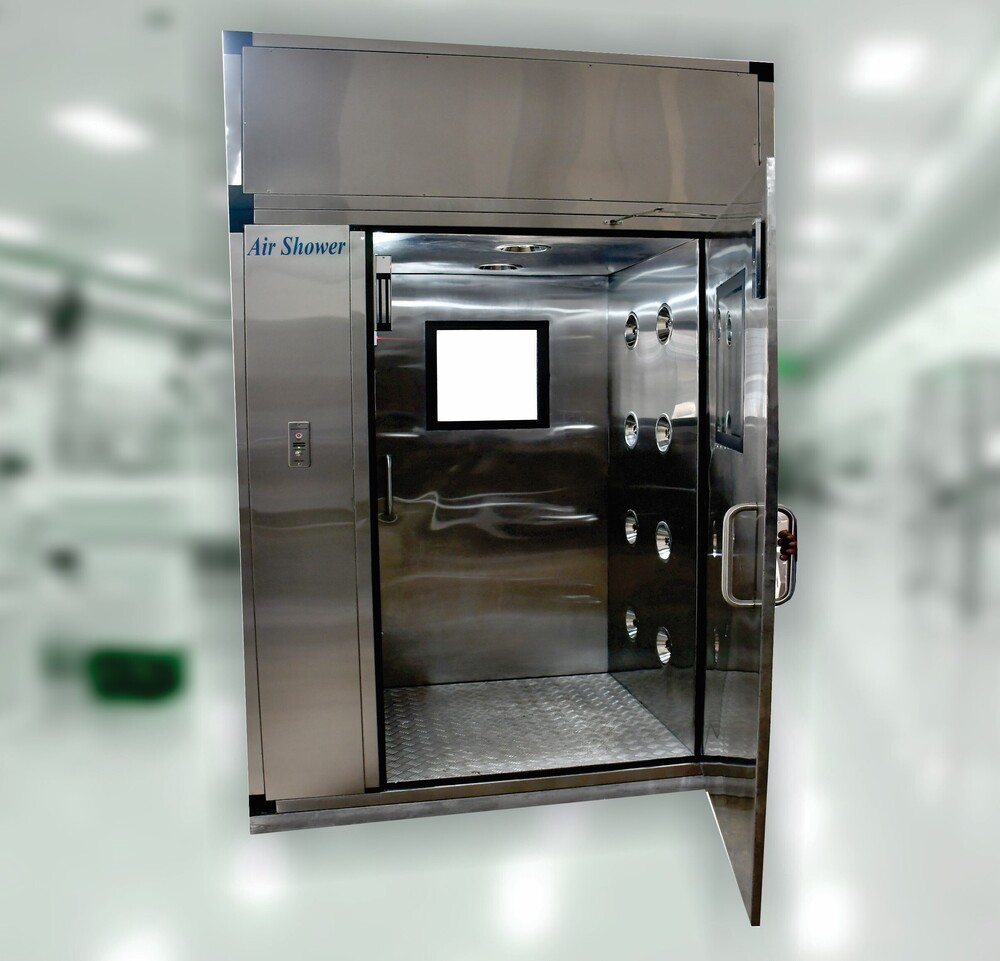

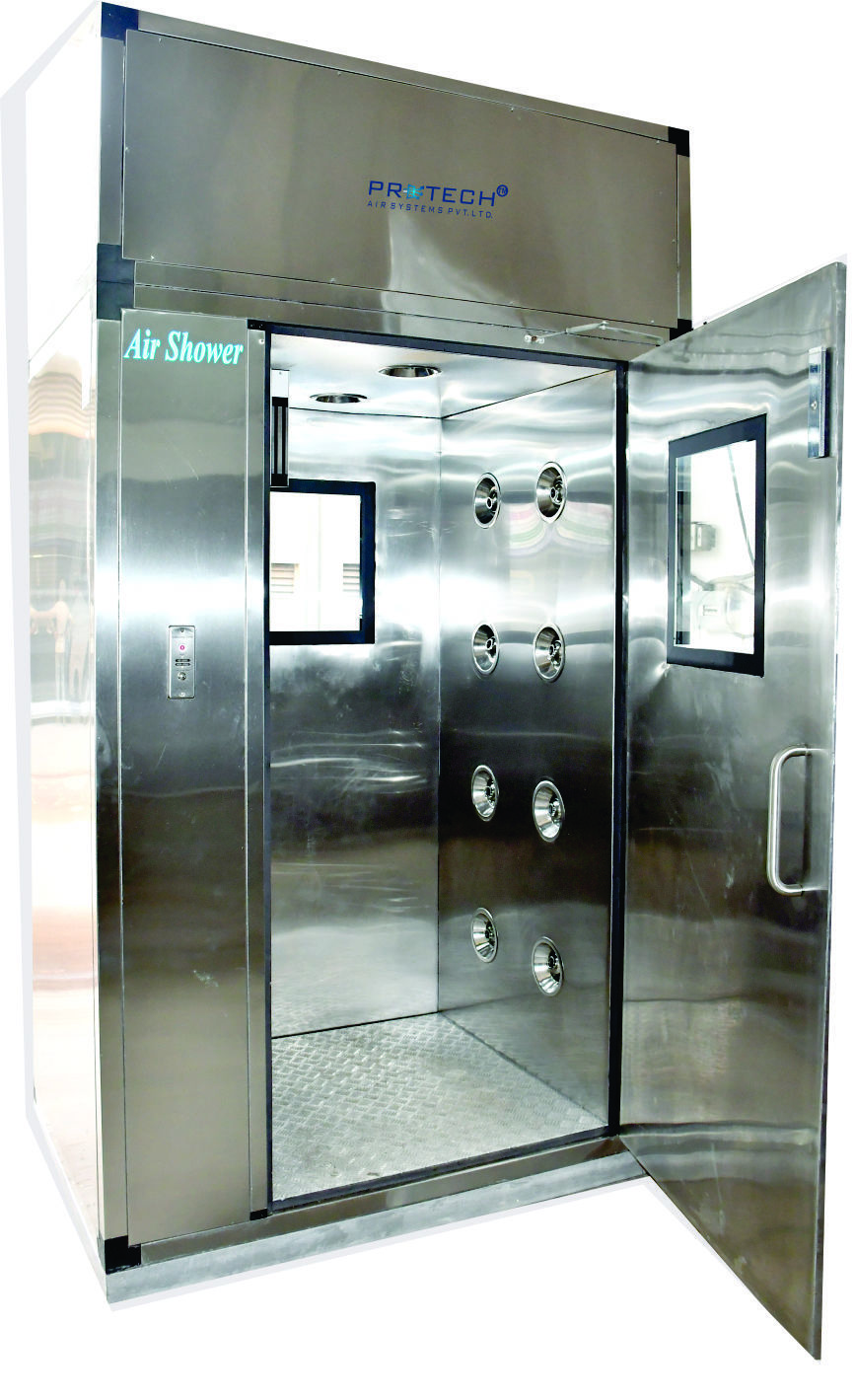

The Air Shower Unit is a sophisticated clean room solution designed for applications in pharmaceutical industries and laboratories. Constructed from durable stainless steel, it features a compact dimension of 900 mm X 900 mm X 1830 mm for effective integration into various spaces. Equipped with powerful vertical airflow and advanced HEPA filters, it ensures optimum particle removal for contamination control. The unit operates on 440V, 50Hz, three-phase power and comes with stainless steel nozzles for consistent air distribution. With a robust weight of 200 kilograms, this highly efficient air shower structure provides reliability and durability. Customizable door designs accommodate specific requirements, ensuring seamless adaptability to unique operational needs. This unit is essential for maintaining stringent cleanliness standards in controlled environments.
FAQs of Air Shower Unit:
Q: What material is the Air Shower Unit made of?
A: The Air Shower Unit is constructed from durable stainless steel, ensuring long-lasting performance and reliability.
Q: What type of filters does the unit feature?
A: The unit is equipped with advanced HEPA filters, designed to efficiently remove airborne particles and maintain clean environments.
Q: What is the power supply requirement for this unit?
A: The Air Shower Unit operates on a 440V, 50Hz, three-phase power supply.
Q: Can the doors of the Air Shower Unit be customized?
A: Yes, the doors can be designed as per specific requirements to suit operational needs.
Q: What industries is this unit suitable for?
A: The Air Shower Unit is ideal for pharmaceutical industries and laboratories where contamination control is critical.
