Product Description
|
Working Area
|
:
|
As Specified Below
|
|
|
Bio safety Type
|
:
|
70% Air Re-Circulated & 30% Air Exhaust
|
|
Cleanliness
|
:
|
ISO CLASS 5 OR CLASS 100
|
|
Velocity at Grill
|
:
|
90 20 FPM
|
|
MOC
|
:
|
S.S. 304
|
|
Grill for HEPA
|
:
|
Made out of SS 304
|
|
HEPA Filter
|
:
|
HEPA Filters down to 0.3 Mic. Particulate at an Efficiency of 99.99% duly tested on DOP aerosol method
|
|
Exhaust HEPA Filter
|
:
|
SEMI HEPA Filters down to 0.3 Mic. Particulate at an Efficiency of 99.99% duly tested on DOP aerosol method
|
|
Work Top
|
:
|
Perforated Work (SS-304) Top
|
|
Front Sash
|
:
|
Sash Door Provided with Toughen Glass
|
|
Blower Assembly
|
:
|
Statically and Dynamically Balanced Motor Blower, Designed for Exhaust of sufficient capacity and Static Pressure to take care of airflow requirement for entire life of HEPA.
|
|
Electrical
|
:
|
1) On/Off Panel (BL / UV / FL)
2) Diffused Fluorescent Light
3) U.V. Light with Hour Meter
4) Auxiliary Socket
|
|
Pressure Gauge
|
:
|
MEGNAHELIC GAUGE (Analog)
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our Factory Tested Only)
|

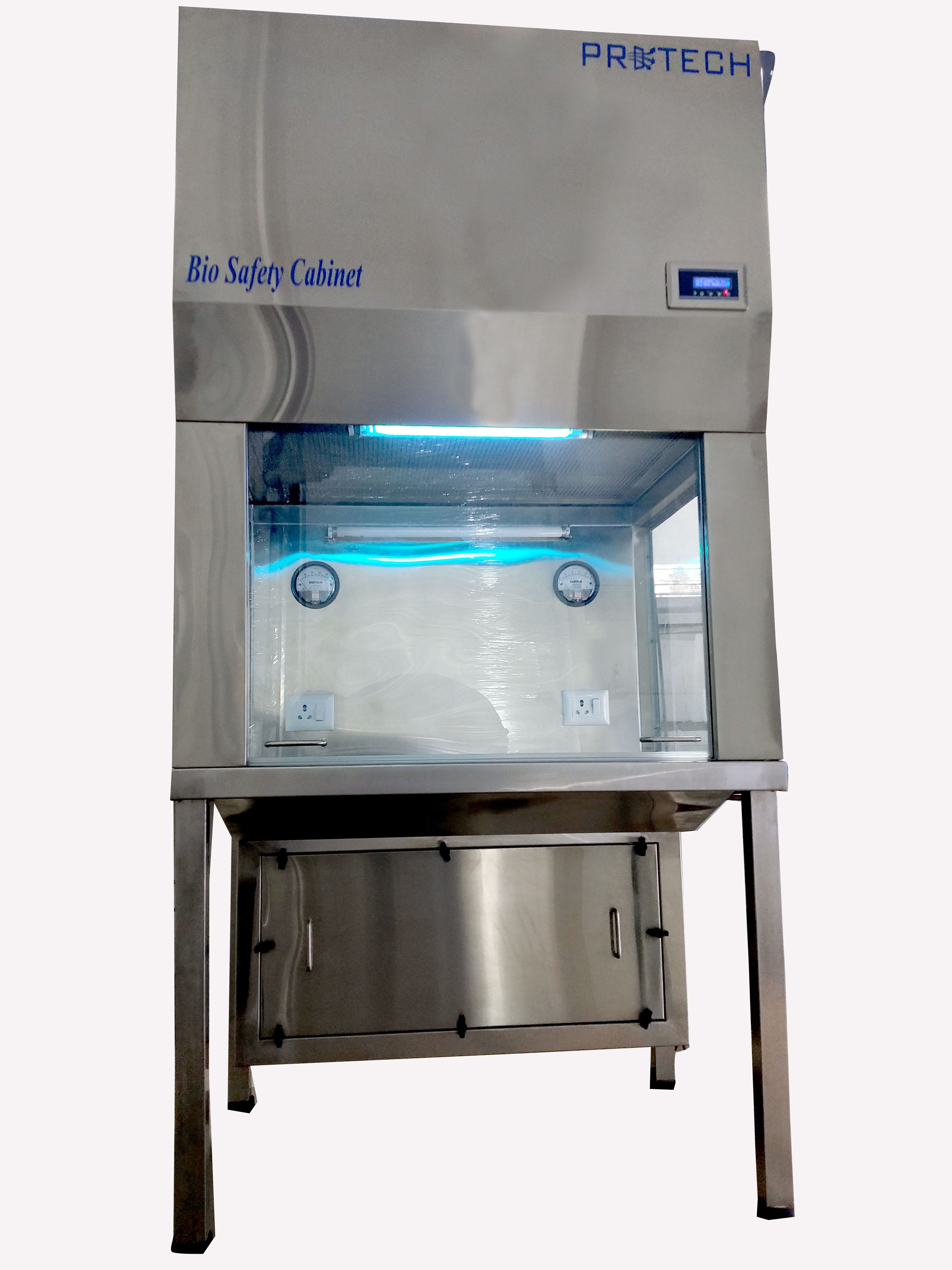

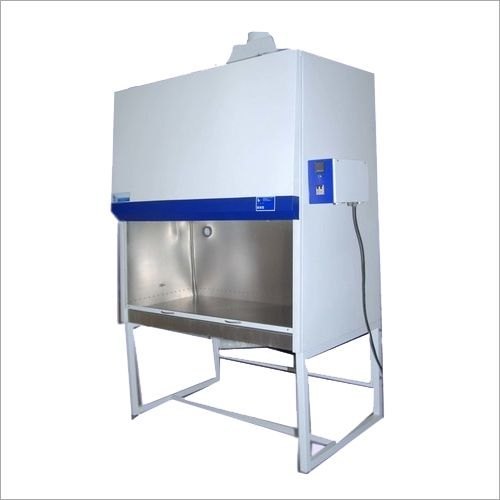

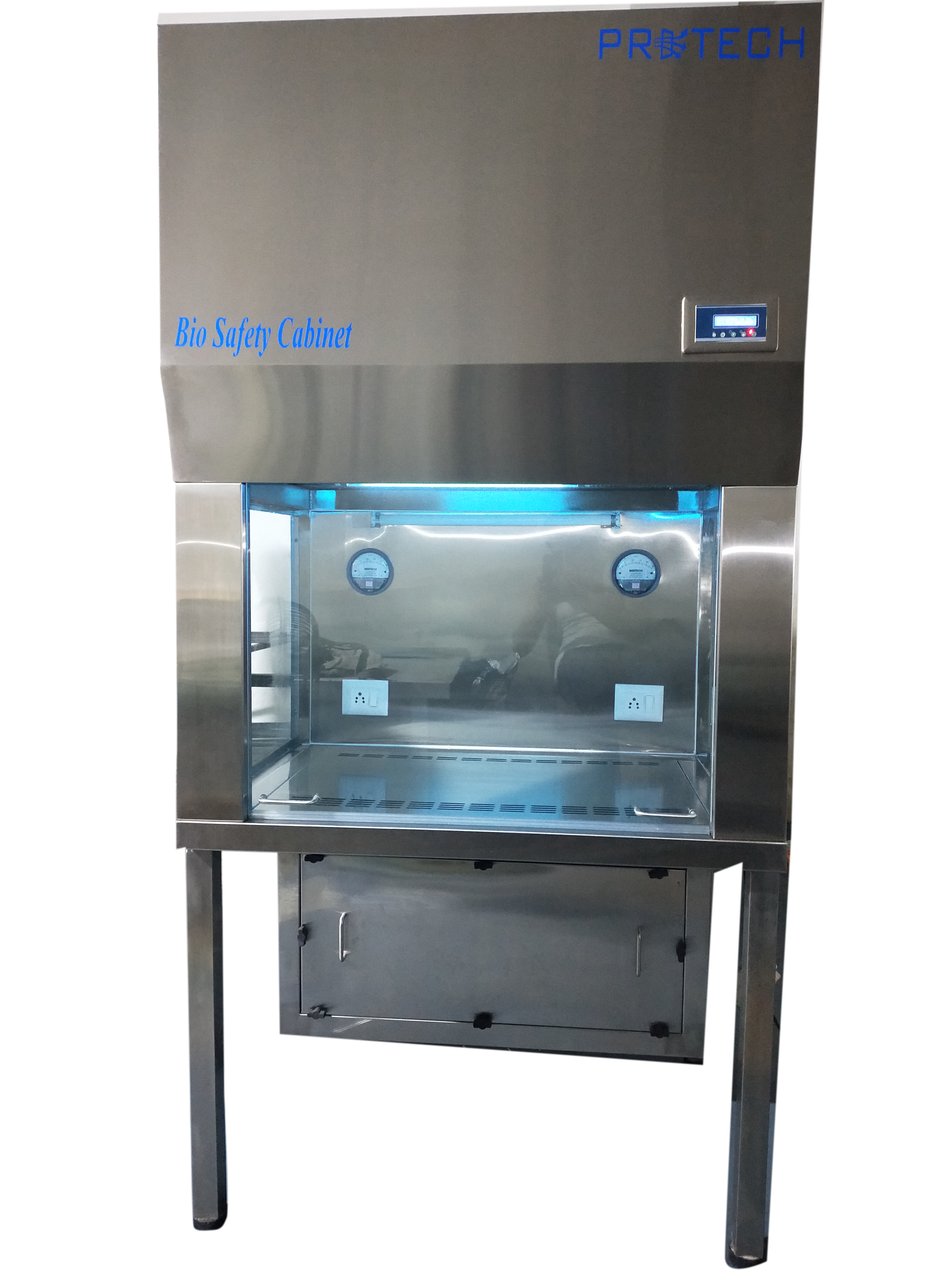

The company offers the bio safety cabinet to the customers. The cabinet has been manufactured using the high quality material. The cabinet is installed in the laboratories for ensuring the safety and hygiene of the environment. They are easily installed. Generally, it is observed in the pharmaceutical and microbiology labs. The provided bio safety cabinet is essentially resistant against the rust and cracks, which enhances the strength and durability of the cabinet, making it a popular and preferable option.Bio Safety Cabinet Working Area 3 Ft., 4 Ft., 5 Ft., 6 Ft. Bio safety Type Class II (Type: A2 / Type: B1 / Type: B2) Cleanliness ISO CLASS 5 OR CLASS 100 Velocity at Grill 90 + 20 FPM MOC S.S.-304, HEPA Filter HEPA Filters down to 0.3mic. particulate at an efficiency of 99.999% duly tested Work Top Perforated Work (SS-304) Top Front Sash Sliding Door with Counter weight Accessories 1. GAS / AIR Cock2. DOP Port Blower Assembly Dynamically and statically balanced in-built motor and blower Electrical 1) On/Off Panel2) Diffused Fluorescent Light3) U V Light with Hour Meter4) Auxiliary Socket 15 Amp. Leveling Pads For leveling and Positioning of the Unit Noise Level Less than 65db1.5mtr. distance Powder supply 230 V, 50Hz, Single Phase
FAQs of Bio Safety Cabinet:
Q: What is the frame material used in the Bio Safety Cabinet?
A: The frame material of the Bio Safety Cabinet is stainless steel.
Q: What type of filter does the Bio Safety Cabinet use?
A: The Bio Safety Cabinet is equipped with HEPA filters that remove particulates down to 0.3 microns with an efficiency of 99.999%, duly tested.
Q: What are the dimensions available for the Bio Safety Cabinet?
A: The Bio Safety Cabinet is available in dimensions of 3, 4, 5, and 6 feet (ft).
Q: What industries or applications is the Bio Safety Cabinet suitable for?
A: The Bio Safety Cabinet is suitable for Pharmaceutical Industries, Laboratories, and Microbiology applications.
Q: What is the power requirement for the Bio Safety Cabinet?
A: The Bio Safety Cabinet operates on 230 V, 50Hz, Single Phase.
