Product Description
|
Working Area
|
:
|
As specified below
|
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Flow Direction
|
:
|
HORIZONTAL / VERTICAL
|
|
Velocity at Grill
|
:
|
90 20 FPM (0.45 20 m/sec)
|
|
Material of Construction
|
:
|
External & Internal part with : MS Powder Coated / S.S. 304
Working top with SS-304
Centrifugal Blower & Filter housing : MS Powder Coated
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested
|
|
Pre-Filters
|
:
|
Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Side Wall
|
:
|
Do with Glass
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced blower and motor
|
|
Electrical
|
:
|
1) On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV)
2) FL Light
3) U V Light
|
|
Pressure Measurement
|
:
|
Magnehalic Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our factory tested only)
|

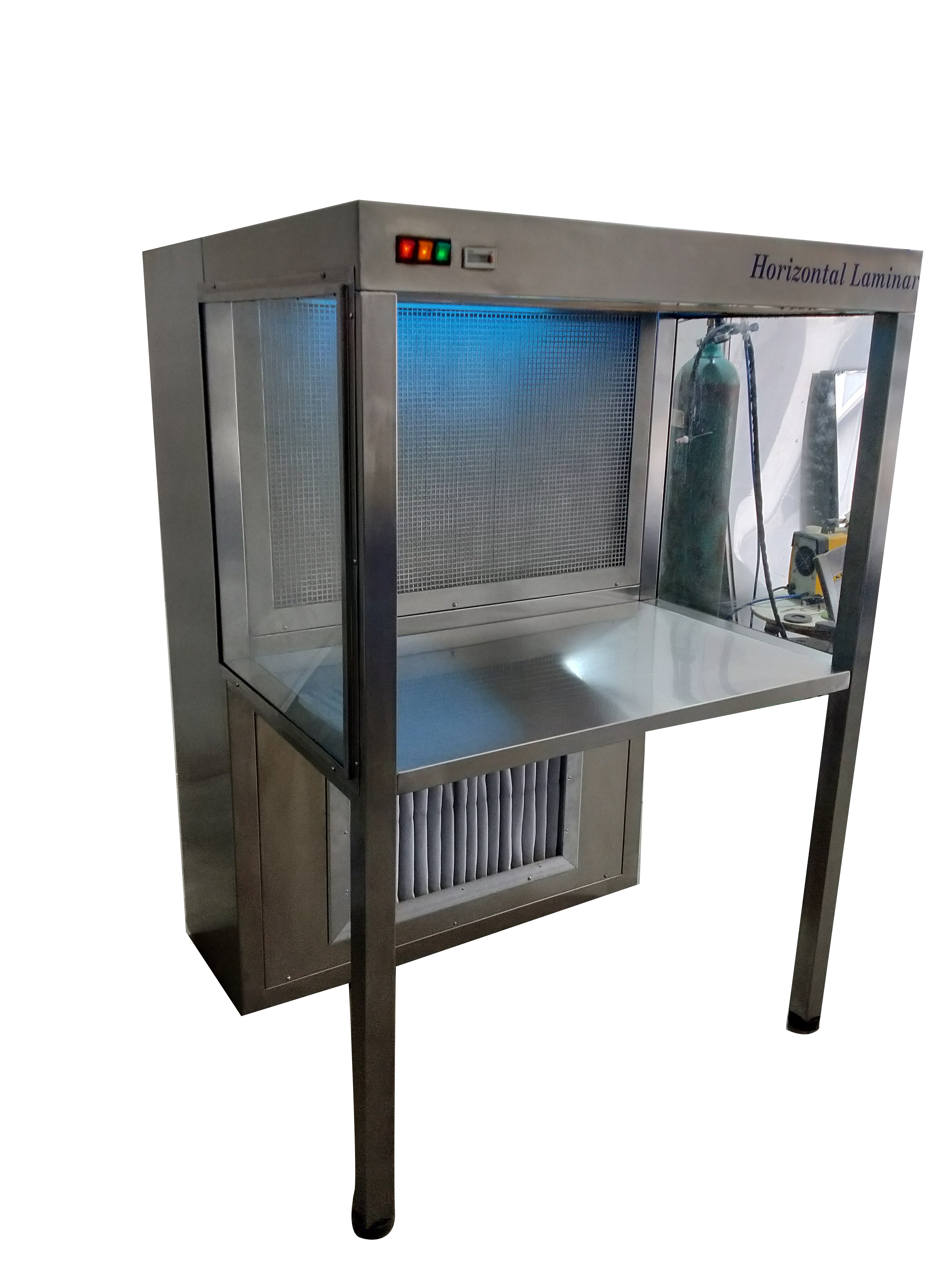

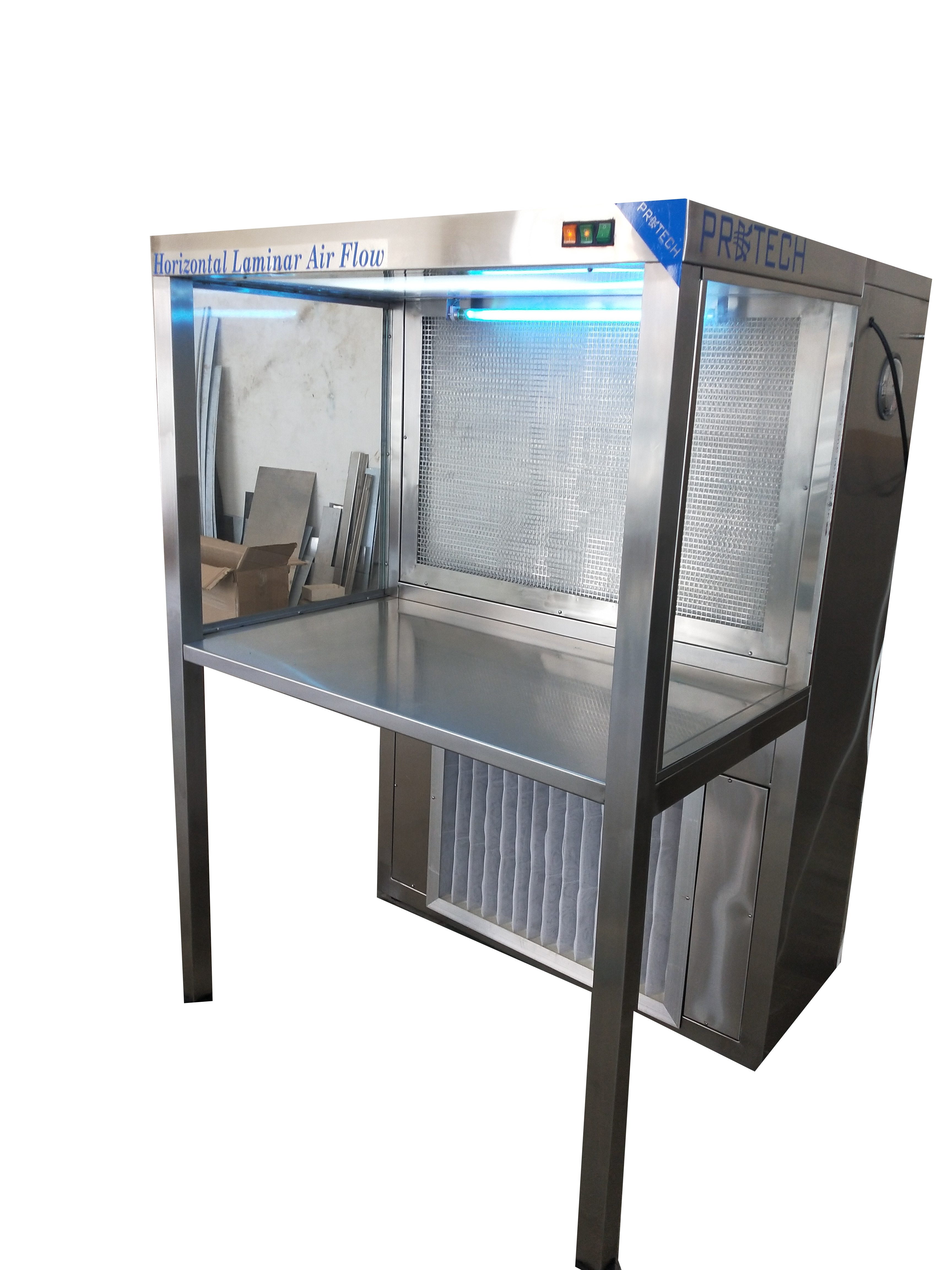

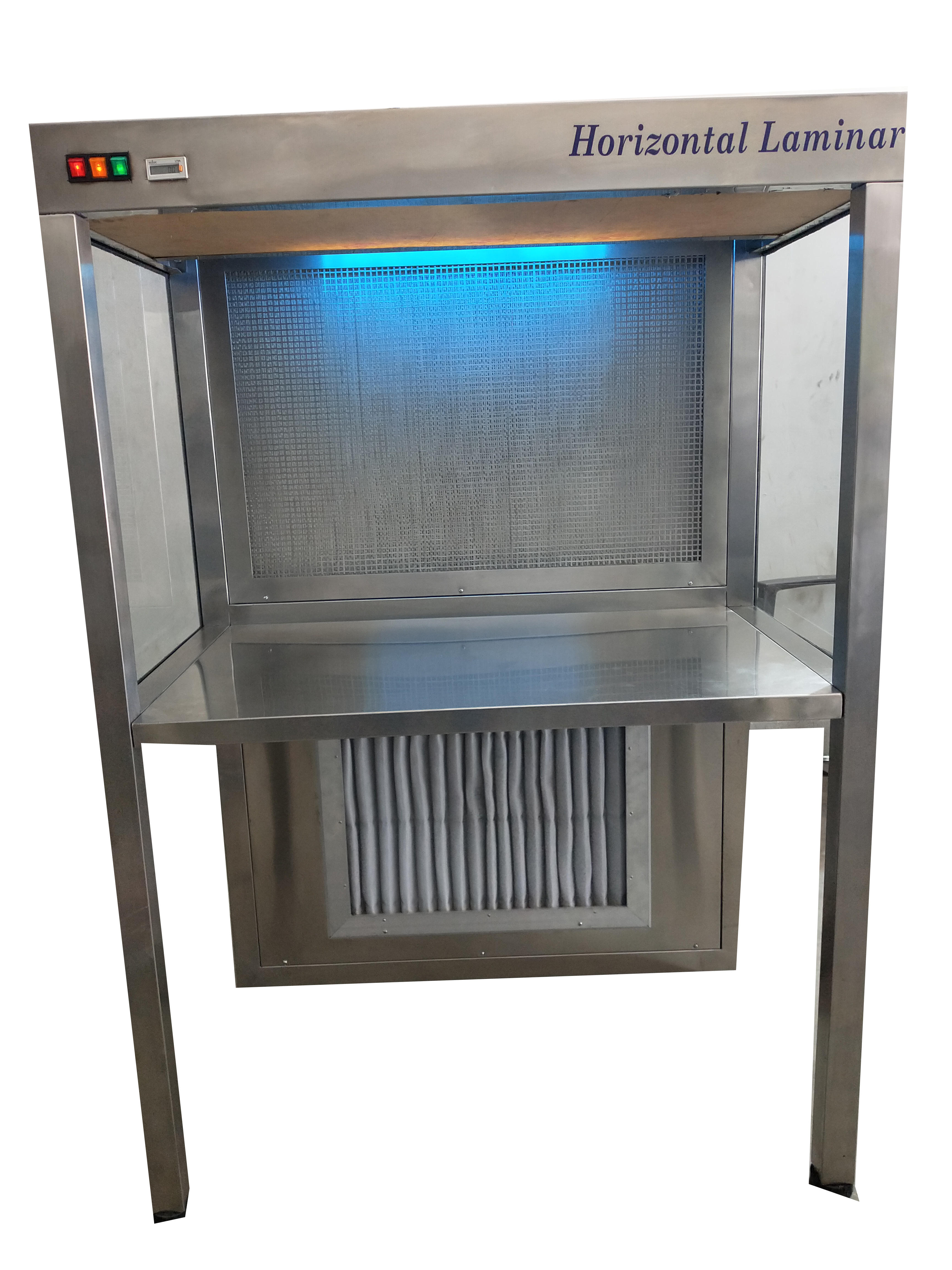

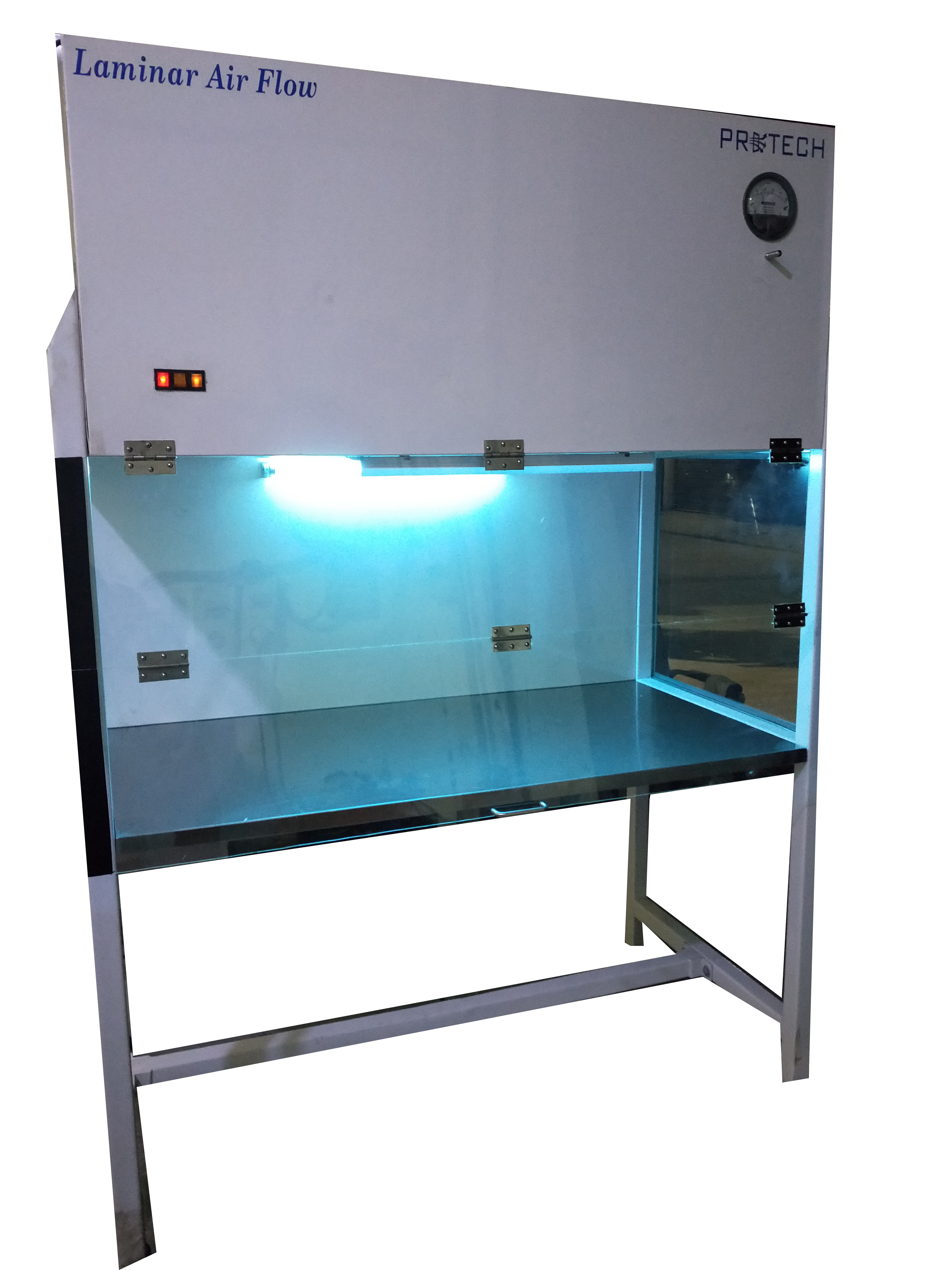

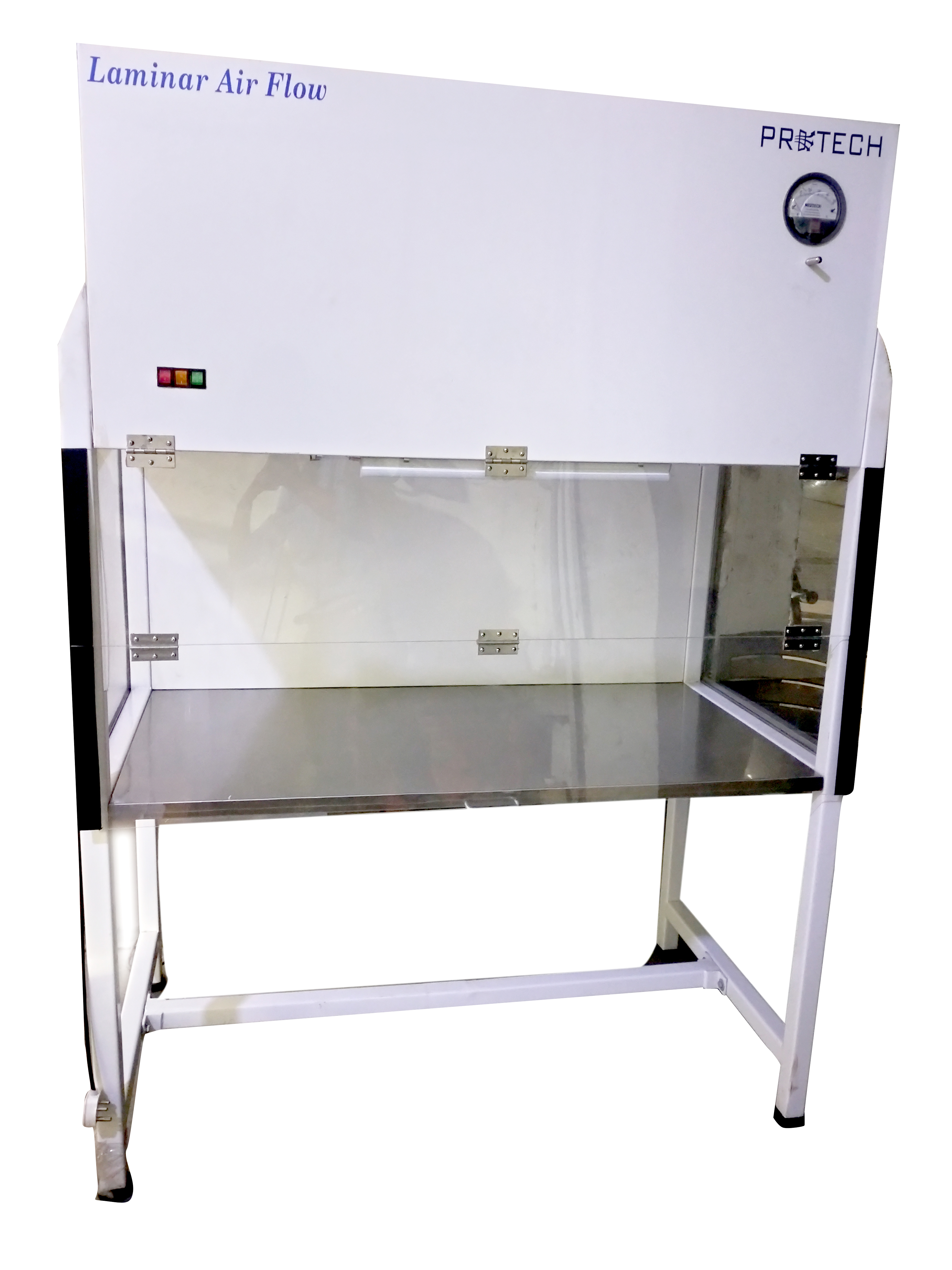

Laminar Airflow Benchoffered by us is extensively used in several industries including medicine, healthcare, pharmaceutical, electronic devices manufacturing, etc. This bench us carefully designed to prevent the contamination of the biological and semiconductor samples. It is equipped with a HEPA filter that provides clean and uncontaminated air in a smooth and laminar flow towards the users. Apart from this, our offered Horizontal Laminar Airflow Bench can be availed from us at the market leading price range.
FAQs of Laminar Air Flow Unit:
Q: What type of material is used for the construction of the Laminar Air Flow Unit?
A: The Laminar Air Flow Unit is constructed using stainless steel, including the frame material, ensuring durability and corrosion resistance.
Q: What type of filter is equipped in the Laminar Air Flow Unit?
A: The unit is equipped with Mini Pleated HEPA Filters that can filter particles down to 0.3 microns with an efficiency of 99.997% (EU14), duly tested on DOP tests.
Q: What are the dimensions available for the Laminar Air Flow Unit?
A: The unit is available in the following dimensions: 610 x 610 x 610 mm, 915 x 610 x 610 mm, and 1220 x 610 x 610 mm.
Q: What voltage and frequency does the Laminar Air Flow Unit operate on?
A: The Laminar Air Flow Unit operates on 230 Volt (V) and 50 Hertz (Hz) frequency with single-phase power consumption.
Q: Where can the Laminar Air Flow Unit be utilized?
A: The unit is suitable for usage in pharmaceutical industries, laboratories, and microbiology applications.
Q: Does the Laminar Air Flow Unit come with a warranty?
A: Yes, the Laminar Air Flow Unit is backed by a 1-year warranty.
Q: Is the Laminar Air Flow Unit automatic or manual?
A: The Laminar Air Flow Unit operates automatically.
