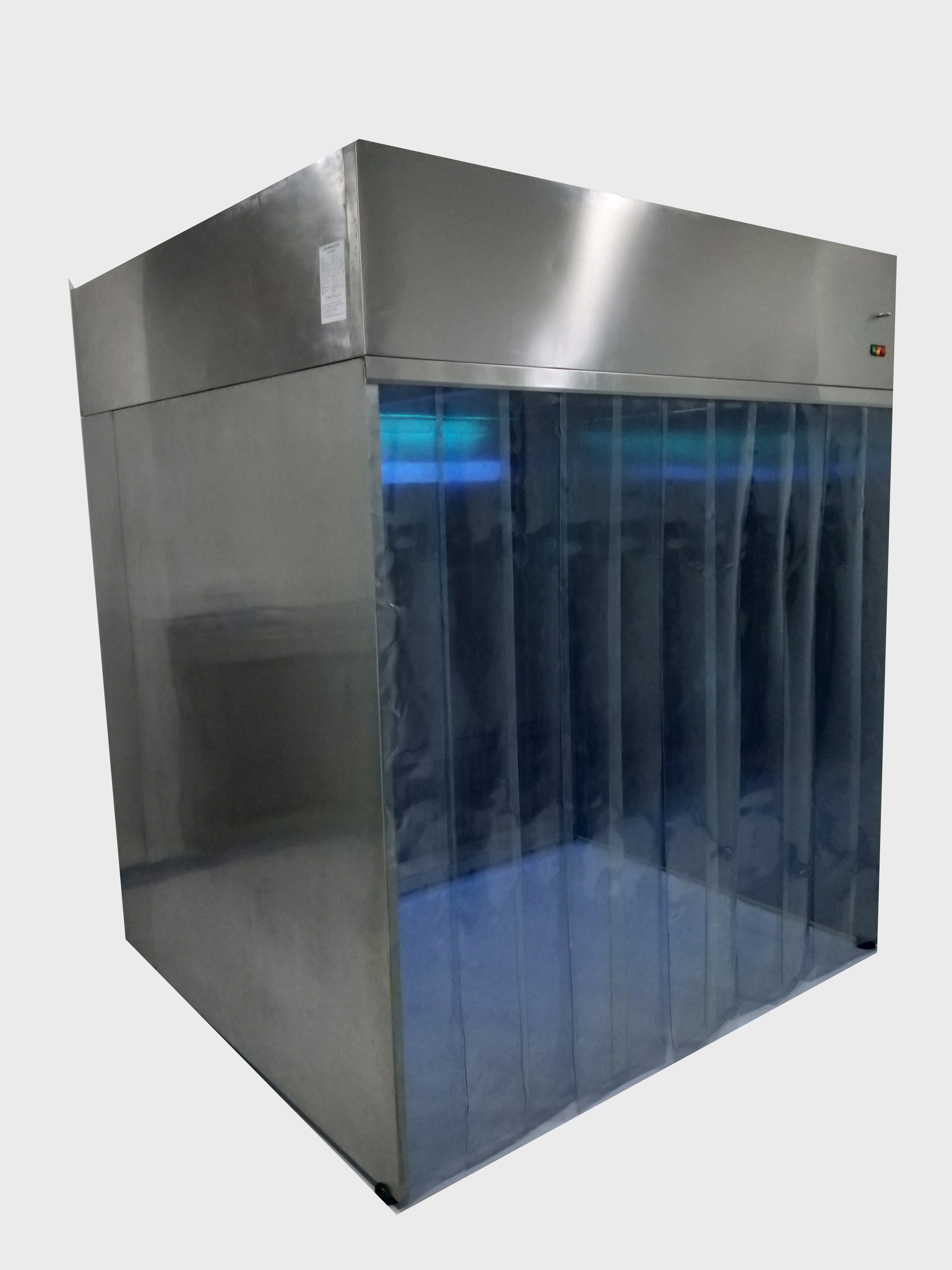

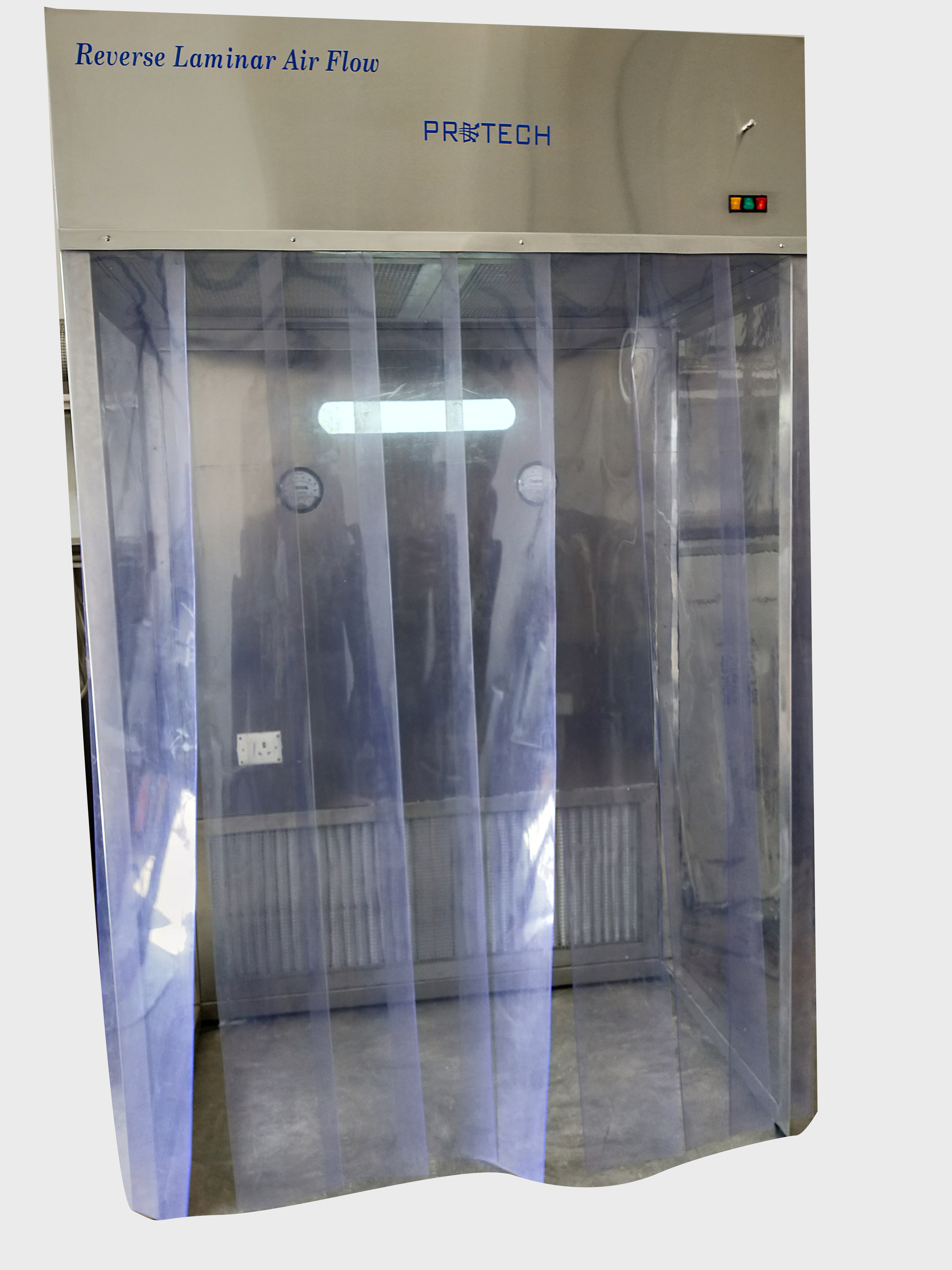

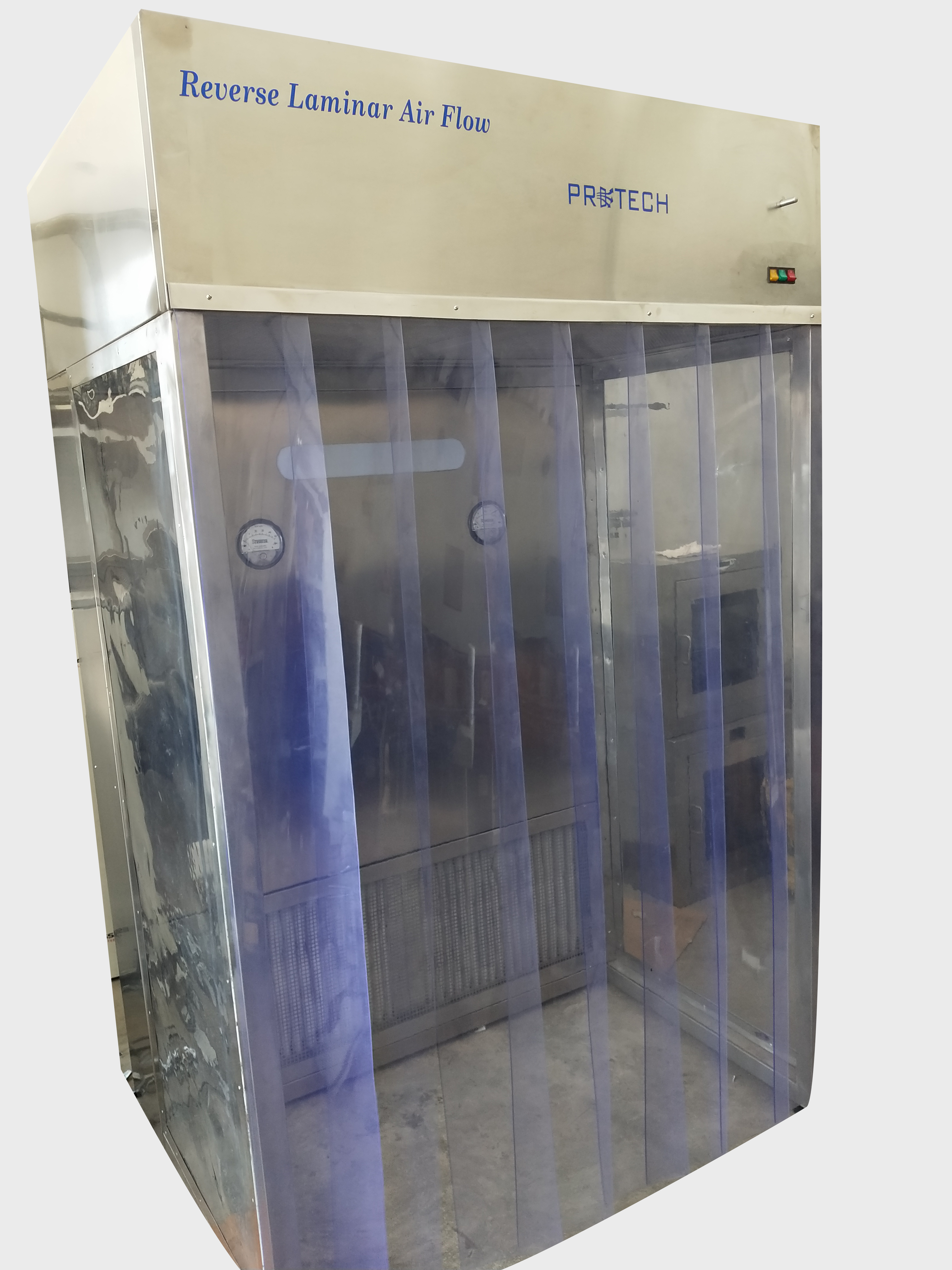

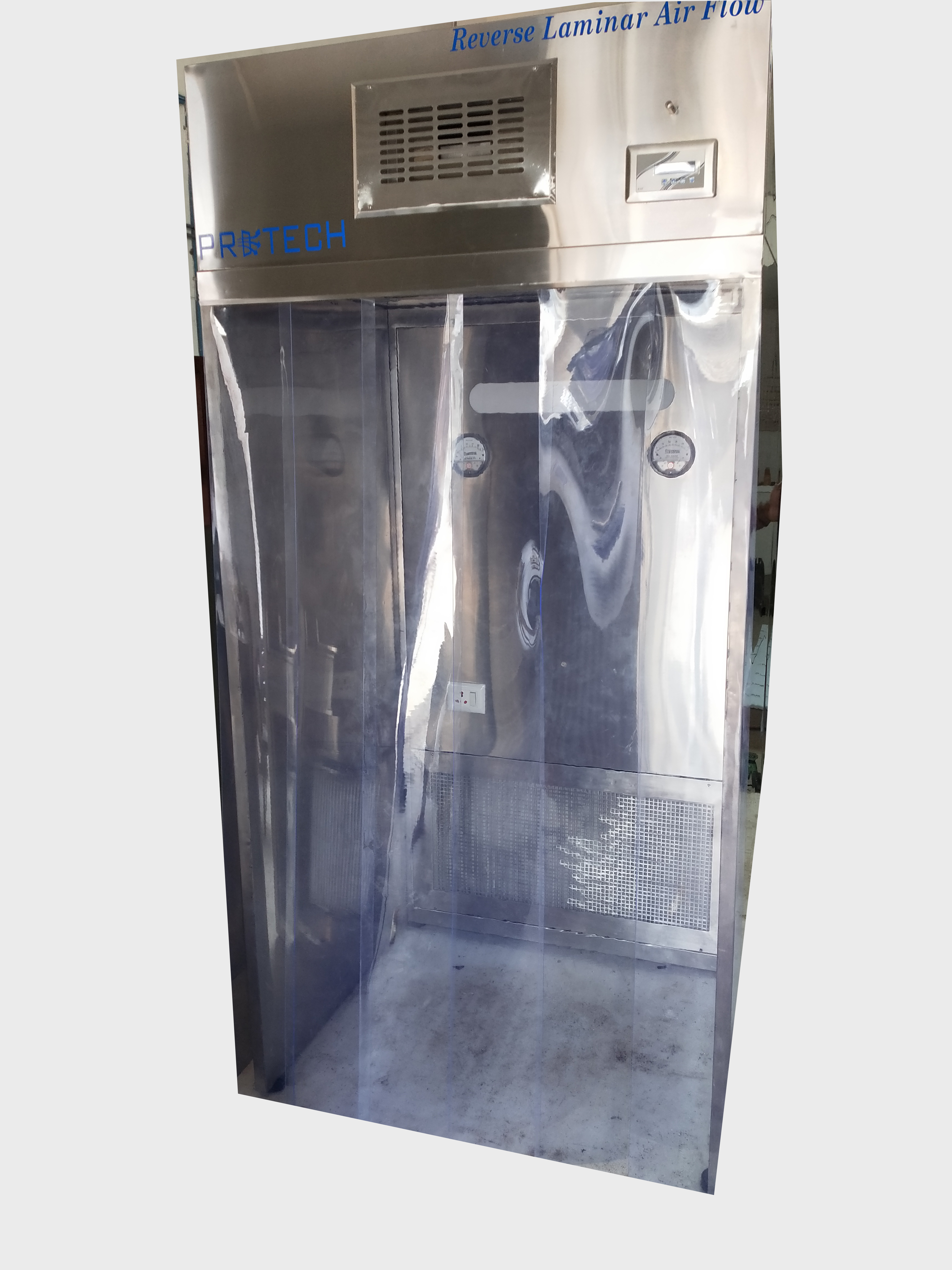

Reverse Laminar Air Flow Unit (RLAF)

Product Description

Reverse Laminar Air Flow Unit (RLAF)is a type of industrial filtering equipment, which is extensively used for the filling, weighing, refilling, and sampling of raw material. It is equipped with HEPA filter, which is responsible for the preventions of the airborne dust by down draught technique. Besides, in its assembling, we have utilized advanced techniques, and tools responsible for the top-notch quality and extended durability of the Reverse Laminar Air Flow Unit (RLAF). Moreover, our patrons can obtain the product at the budget-friendly price range.

• Air cleanliness : ISO class 5 / class 100 / M .5
• Area air velocities : 0.450.05 mps (9020FPM)
• Air flow : vertical
• Noise level : less than 65db
• Vibration level : minimum
• POWER SUPPLY : 230V AC, 1-, 50HZ

MOC: GI Powder Coated/ SS-304/ SS-316

Inside: Side panel with all three side with coving

Three stage filtration

EU4- Pre filter (90% down to 10micron)

EU7-Intermediate filter (95% down to 0.3 micron)

EU14- HEPA filter- Supply/ Exhaust (99.999% down to 0.3 micron)

Statically & dynamically balanced motor- blower with isolator to reduce noise level

Fluorescent lights (Vpore proof)

Differential pressure gauge : 02 No.( Intermediate @ Hepa filter )

ON/OFF switches on front facia (BL / FL/UV)

Auxilliary power socket: 5/15 AMP For external equipment

Dop Port

DQ,IQ,OQ,PQ Documentation

Options And Accessories

• Double skinned PUF insulated side panels with/without view window
• Stainless steel perforated grille for HEPA fILTER
• Front Flexible Strip PVC Curtain
• Velocity display with High/ Low Alarms
