Product Description
|
Working Area
|
:
|
As specified below
|
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Flow Direction
|
:
|
HORIZONTAL
|
|
Velocity at Grill
|
:
|
90 20 FPM (0.45 20 m/sec)
|
|
Material of Construction
|
:
|
External & Internal part with : MS Powder Coated / S.S. 304
Working top with SS-304
Centrifugal Blower & Filter housing : MS Powder Coated
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested
|
|
Pre-Filters
|
:
|
Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Side Wall
|
:
|
Do with Glass
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced blower and motor
|
|
Electrical
|
:
|
1) On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV)
2) FL Light
3) U V Light
|
|
Pressure Measurement
|
:
|
Magnehalic Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our factory tested only)
|

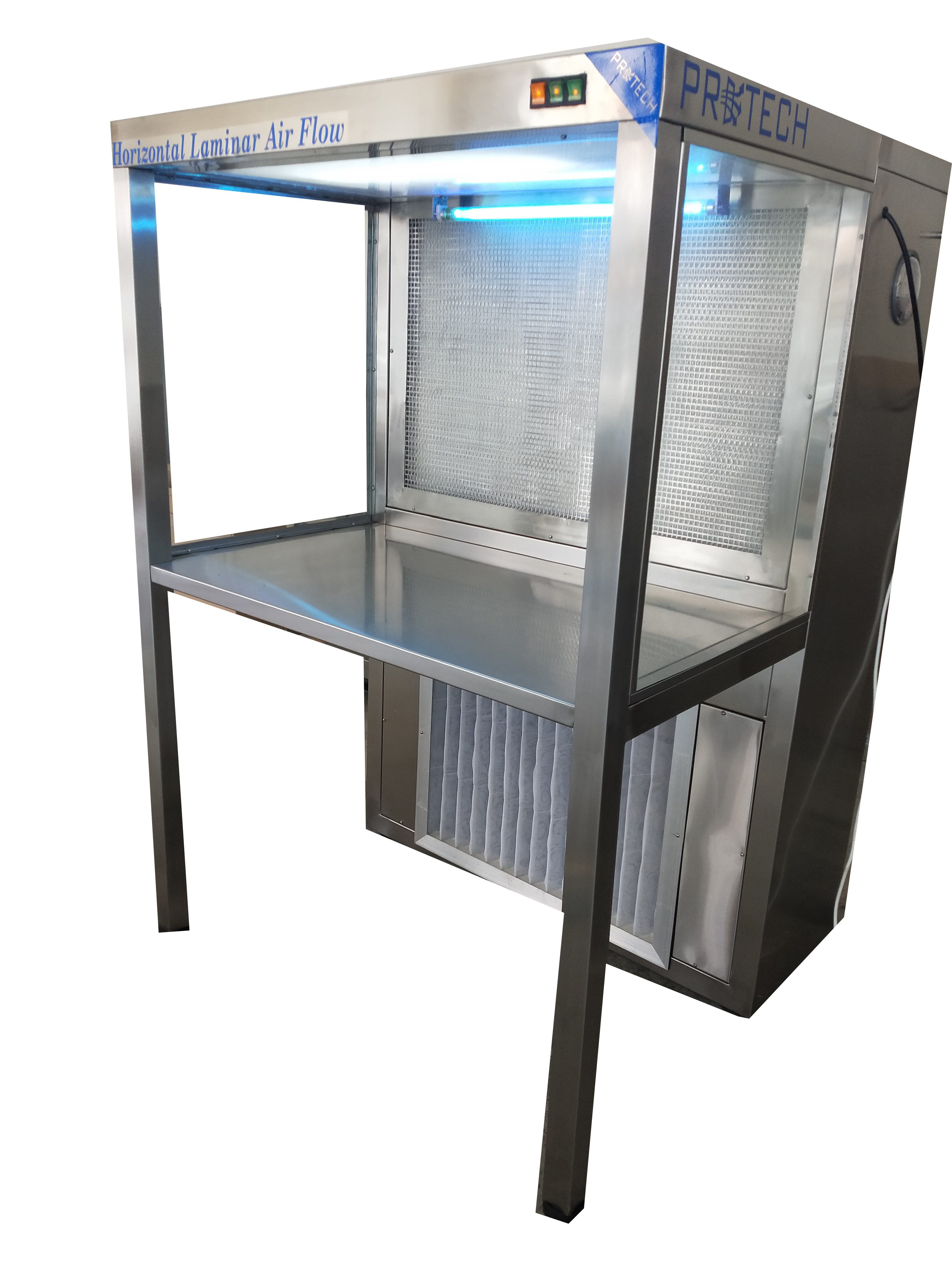

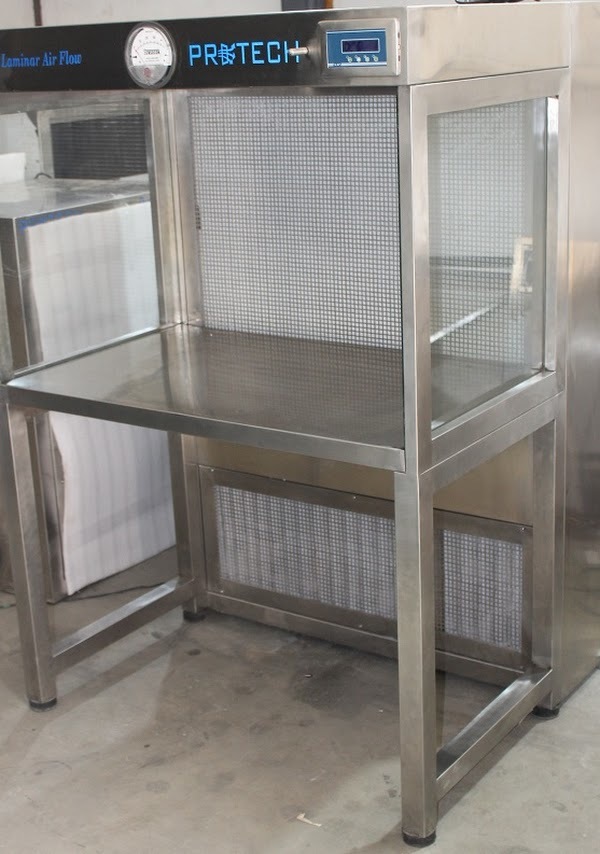

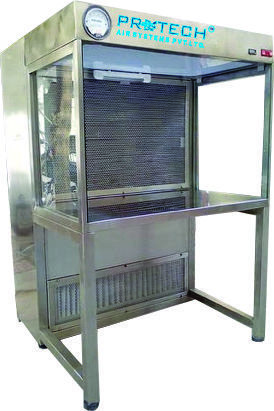

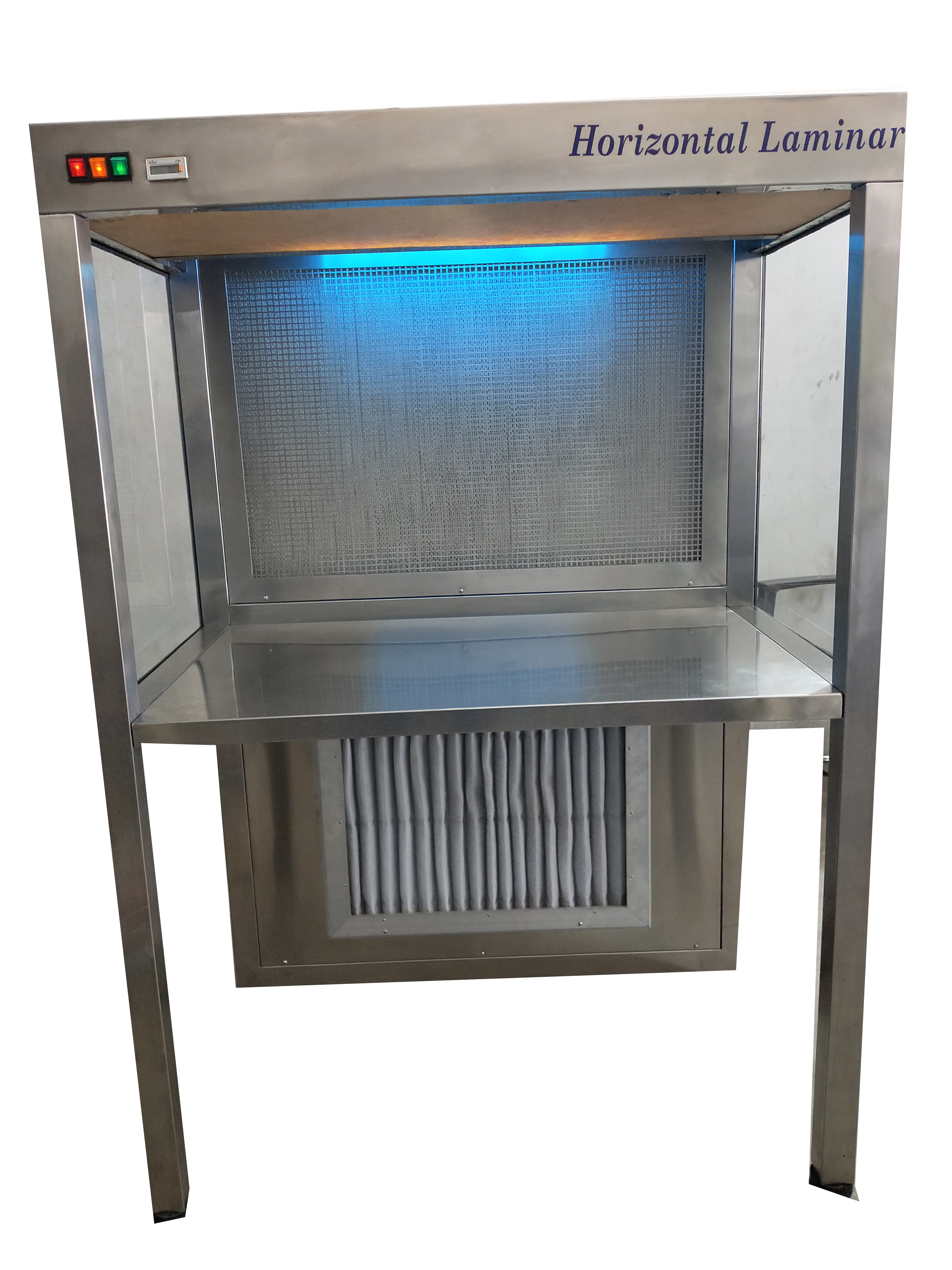

Horizontal Laminar Airflow Benchoffered by us is extensively used in several industries including medicine, healthcare, pharmaceutical, electronic devices manufacturing, etc. This bench us carefully designed to prevent the contamination of the biological and semiconductor samples. It is equipped with a HEPA filter that provides clean and uncontaminated air in a smooth and laminar flow towards the users. Apart from this, our offered Horizontal Laminar Airflow Bench can be availed from us at the market leading price range. Technical Specification : Air cleanliness : ISO class 5 / class 100 / M 3.5 AREAAir velocities : 0.45 0.05 mps (9020 FPM)Air flow : horizontalNoise level : less than 67 dbVibration level : minimumPower supply : 230V AC ,1-, 50Hz MOC : GI powder coated / SS 304 /SS-316 side panel with glass /polycarbonate / acrylic two stage filtrationEU5 intermediate filter (95% down to 5 micron )EU14 Hepa filter supply exhaust (99.999% down to 0.3 micron)Statically & dynamically balanced motor blower with isolate to reduce noise levelFluorescent lights with milky white diffuserDifferential pressure gauge: 01 no. (hepa filter ) on/off switches (BL/FL/UV)Auxiliary powder socket : 5/15 amp for external equipment DOP portDQ,IQ,OQ,PQ Documentation Optional and accessories : A wide range of configurations to suit any containment applicationFront door (counter weighted / hinged) hour meter for UV air / gas cockVelocity display with high / low alarms filter chocking alarmsVelocity display with High / Low AlarmsFilter chocking alarms
FAQs of Horizontal Laminar Airflow Bench:
Q: What is the efficiency level of the Horizontal Laminar Airflow Bench?
A: The Horizontal Laminar Airflow Bench has an efficiency of 99.999%.
Q: Which filter types are used in the Horizontal Laminar Airflow Bench?
A: The Horizontal Laminar Airflow Bench uses HEPA filters, Mini Pleat HEPA filters, Pre filters, and Fine filters.
Q: What is the noise level of the Horizontal Laminar Airflow Bench during operation?
A: The noise level is less than 65dB at a 1.5-meter distance.
Q: What materials are used for the frame and construction of the Horizontal Laminar Airflow Bench?
A: The frame is made of stainless steel, and the construction materials include Stainless Steel (SS-304, SS-316) and MS Powder Coated material.
Q: What are the dimensions available for the Horizontal Laminar Airflow Bench?
A: Dimensions are customizable as per specific requirements, with sizes including 610 x 610 x 610 mm, 915 x 610 x 610 mm, 1220 x 610 x 610 mm, 1830 x 610 x 610 mm, and 1220 x 915 x 610 mm.
Q: What industries and applications is the Horizontal Laminar Airflow Bench suitable for?
A: It is suitable for pharmaceutical industries, laboratories, microbiology, and life science laboratories.
Q: What is the warranty period for the Horizontal Laminar Airflow Bench?
A: The product comes with a 1-year warranty.
