Product Description
|
Working Area
|
:
|
As specified below
|
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Flow Direction
|
:
|
HORIZONTAL
|
|
Velocity at Grill
|
:
|
90 20 FPM (0.45 20 m/sec)
|
|
Material of Construction
|
:
|
External & Internal part with : MS Powder Coated / S.S. 304
Working top with SS-304
Centrifugal Blower & Filter housing : MS Powder Coated
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested
|
|
Pre-Filters
|
:
|
Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Side Wall
|
:
|
Do with Glass
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced blower and motor
|
|
Electrical
|
:
|
1) On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV)
2) FL Light
3) U V Light
|
|
Pressure Measurement
|
:
|
Magnehalic Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our factory tested only)
|
Vertical Laminar Airflow Bench that we are offering is widely appreciated owing to its top-notch quality, rugged construction and ability to provide uniform and a directed stream of pure air. Basically, it contains the latest air filter that removes the contaminants and impurities present in the atmosphere. In its designing, a team of deft professionals has incorporated top quality tools and equipment, for which, we are able to come up with a durable and supreme quality airflow bench. Besides, we have made available the Vertical Laminar Airflow Bench in different technical specifications.Features: Optimal air cleanlinessLow noise operationLonger service lifeTechnical Specifications: Air cleanliness: ISO Class 5 / Class 100 / M 3.5 AREAAir Velocities: 0.45 0.05 mps (90 20 FPM)Air Flow: Horizontal / VerticalNoise Level: Less than 67 dBVibration Level: MinimumPower Supply: 230 V AC, 1-, 50 HzMOC: GI Powder Coated / SS-304 / SS-316Side panel with Glass / Polycarbonate / AcrylicTwo Stage filtration: EU7 - Intermediate Filter (95% down to 3 micron) & EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)Statically & Dynamically balanced Motor-blower with isolator to reduce noise levelFluorescent Lights with Milky White DiffuserDifferential Pressure Gauges: 01 No. (HEPA Filter)ON / OFF Switches (BL / FL / UV)Auxiliary Powder Socket: 5/15 Amp for external equipmentDOP Port: DQ, IQ, OQ, PQ DocumentationOther details: Front Door (Counter weighted / Hinged / Flexible PVC Sheet)Hour Meter for UVAir / Gas cockVelocity display with High / Low AlarmsFilter chocking alarmsFLP Electrical Goods for Explosion

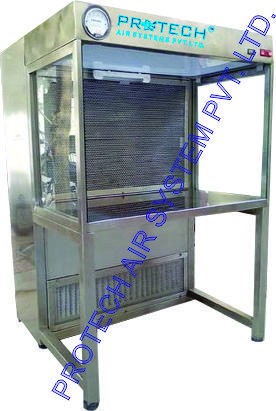

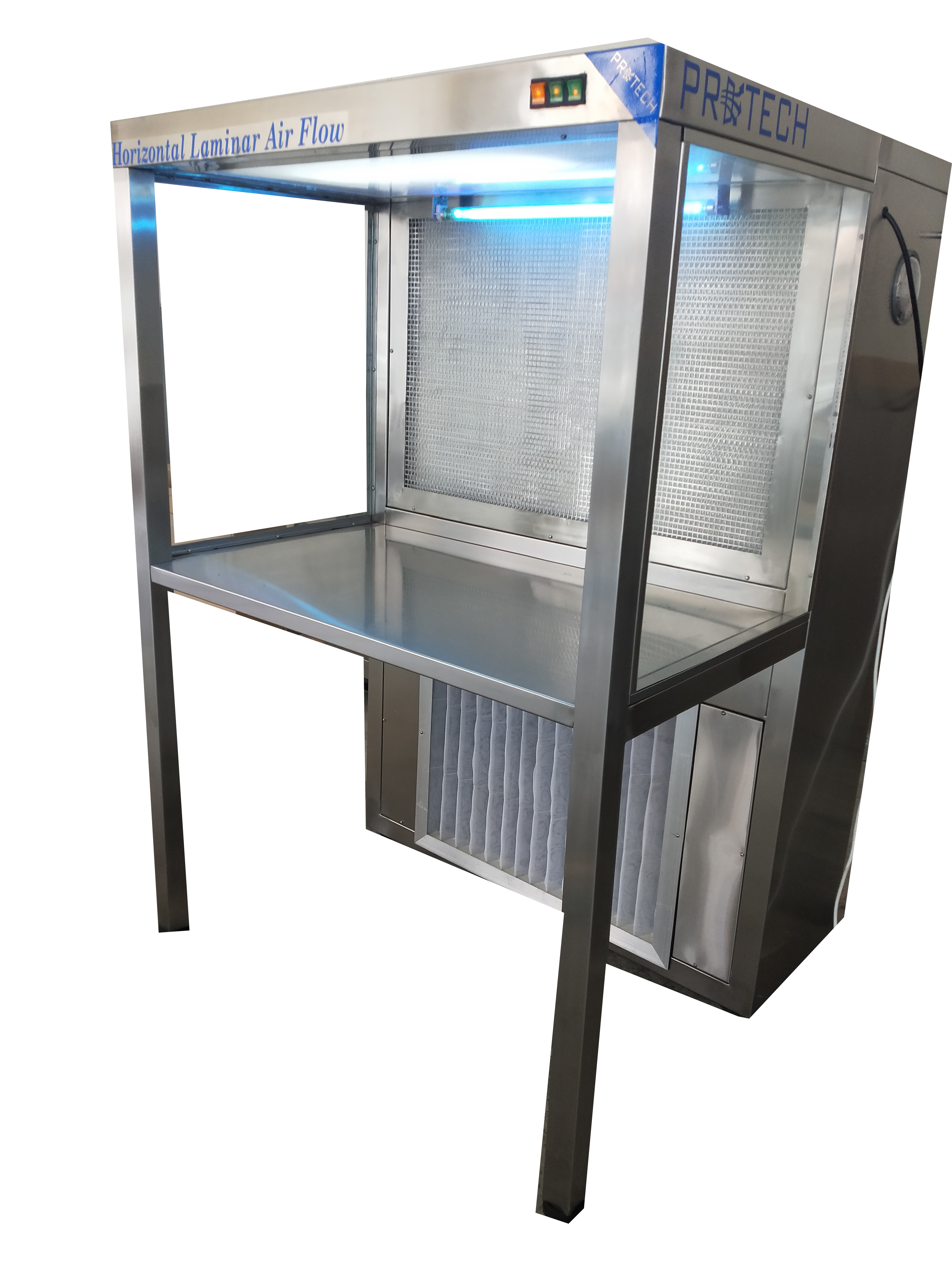

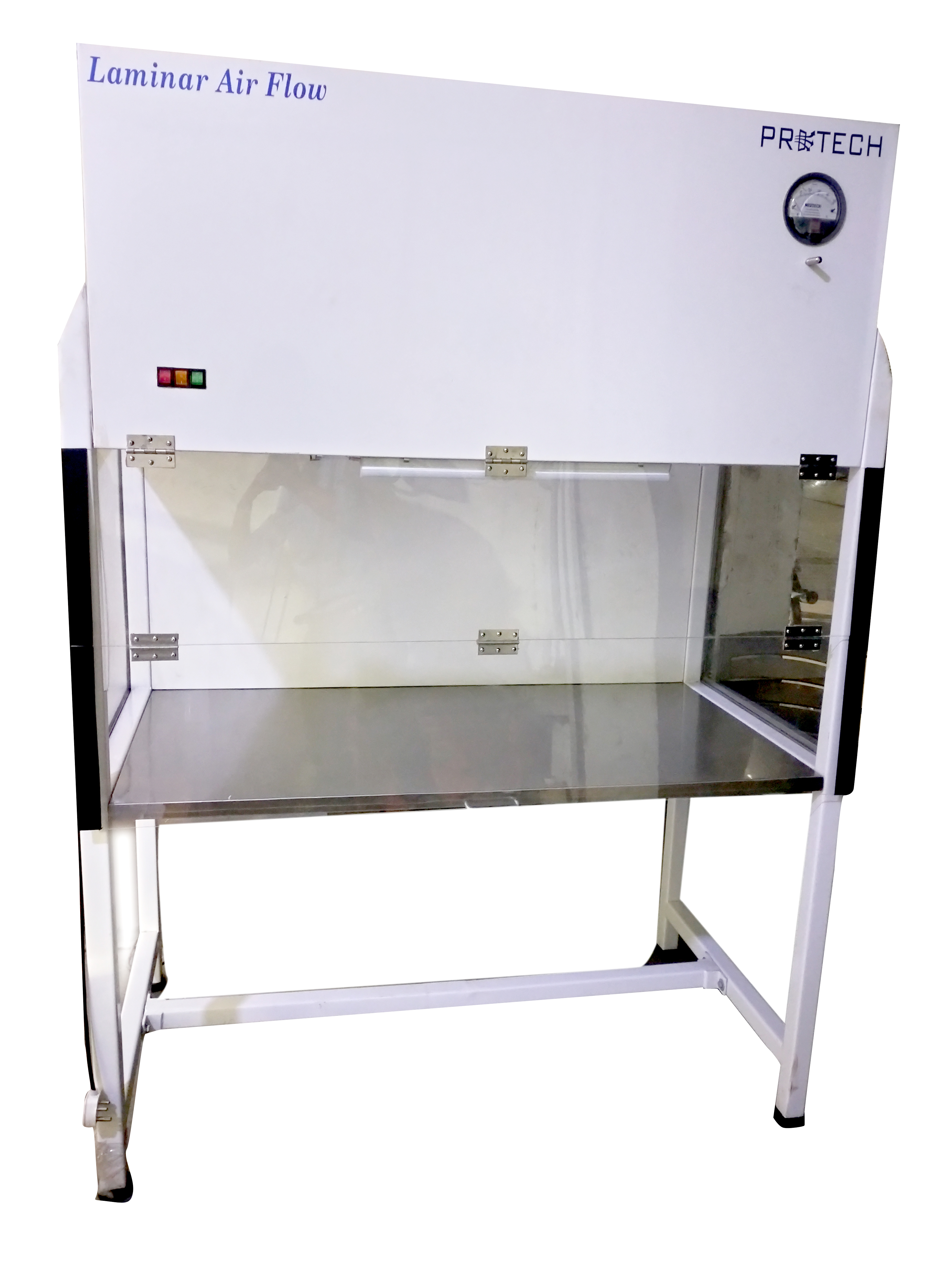

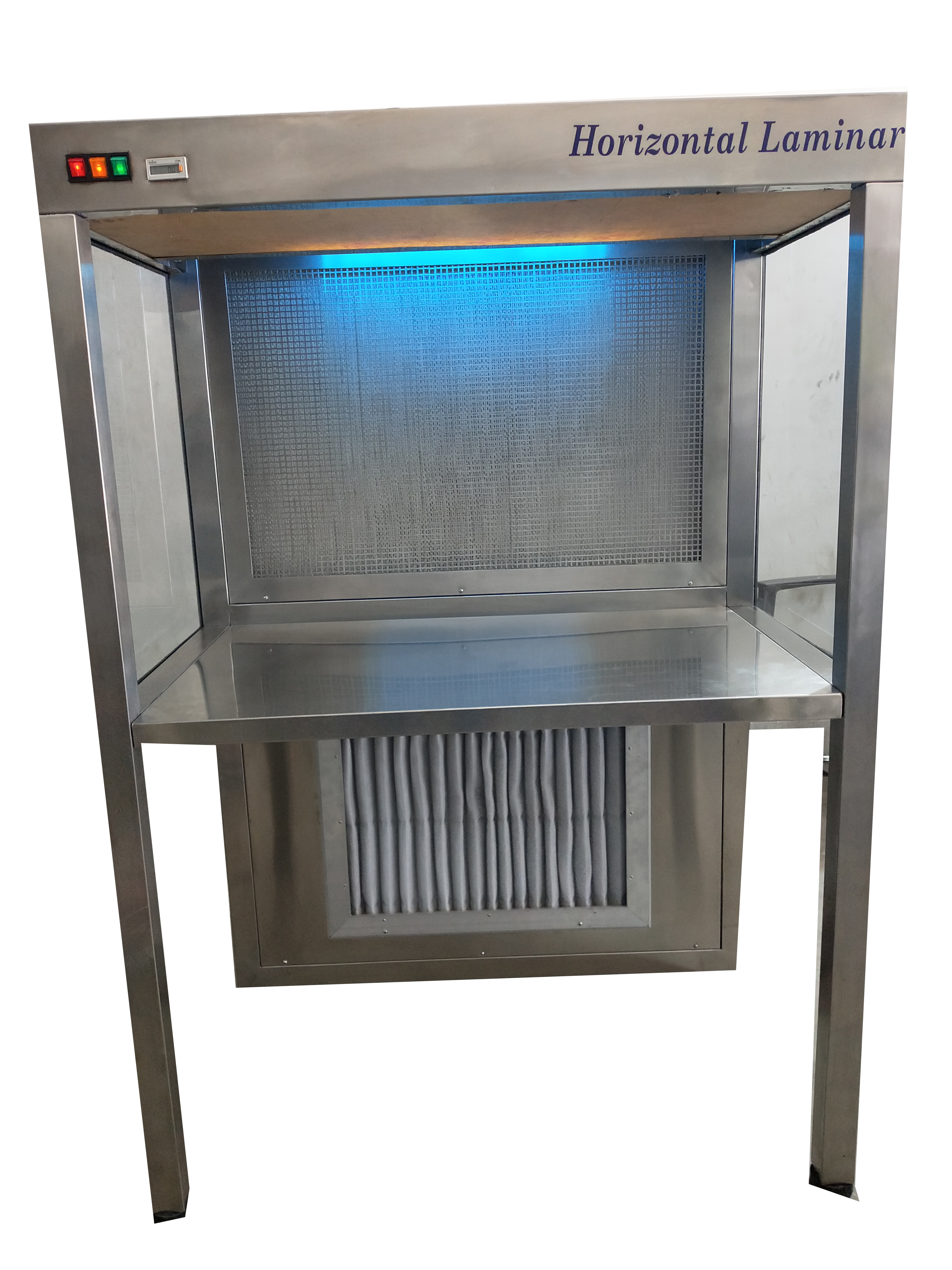

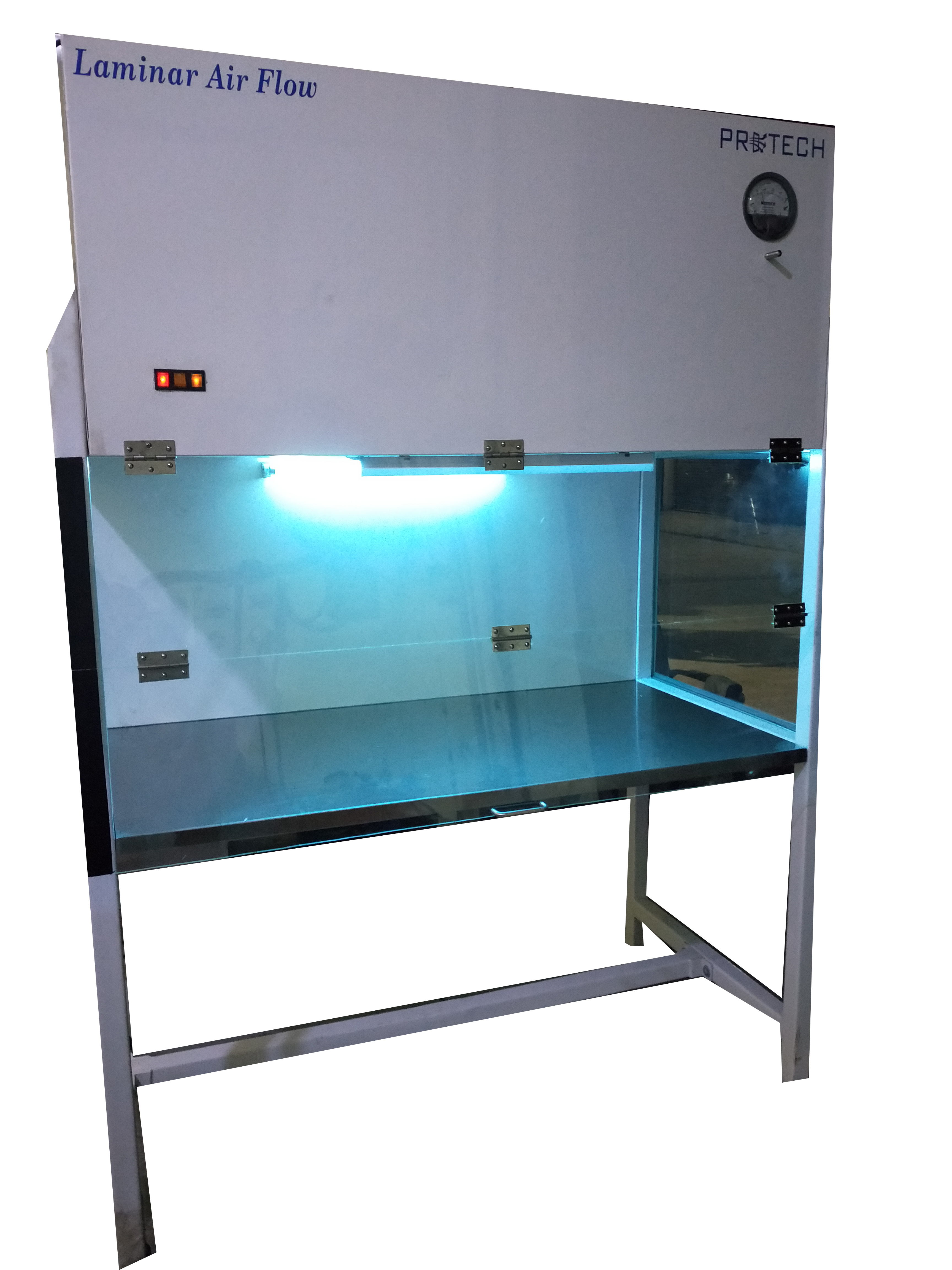

FAQs of Table Top Laminar Air Flow Bench:
Q: What type of filters are used in the Table Top Laminar Air Flow Bench?
A: The Table Top Laminar Air Flow Bench is equipped with Pre Filters and Minipleated HEPA Filters for efficient air purification.
Q: What materials are used to construct the Table Top Laminar Air Flow Bench?
A: The bench is constructed from Stainless Steel-304, Stainless Steel-316, or Mild Steel Powder Coated in various thicknesses (16SWG, 18SWG, 20SWG, 22SWG, 24SWG).
Q: What are the available dimensions for the Table Top Laminar Air Flow Bench?
A: The available dimensions are 610 x 610 x 610 mm, 915 x 610 x 610 mm, 1220 x 610 x 610 mm, and 1830 x 610 x 610 mm.
Q: What kind of doors does the Table Top Laminar Air Flow Bench have?
A: It is equipped with a half-foldable door made of polycarbonate sheet and a sash door provided with toughened transparent glass.
Q: What applications is the Table Top Laminar Air Flow Bench suitable for?
A: The bench is suitable for applications in Tissue Culture, Pharma Companies, and Laboratories.
Q: What power specifications are required to operate the Table Top Laminar Air Flow Bench?
A: The bench operates with a power supply of 230V AC, 1 Phase, 50Hz.
Q: What features are included in the Table Top Laminar Air Flow Bench?
A: The bench includes features like LAF Control System, Hour Meter, UV/FL/BL Switch, PAO Port, and matt finish flooring.
