Product Description
|
Working Area
|
:
|
As specified below
|
|
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
Flow Direction
|
:
|
VERTICAL
|
|
Velocity at Grill
|
:
|
90 20 FPM (0.45 20 m/sec)
|
|
Material of Construction
|
:
|
External & Internal part with : MS Powder Coated / S.S. 304
Working top with SS-304
Centrifugal Blower & Filter housing : MS Powder Coated
|
|
HEPA Filter
|
:
|
Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested
|
|
Pre-Filters
|
:
|
Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type)
|
|
Side Wall
|
:
|
Do with Glass
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced blower and motor
|
|
Electrical
|
:
|
1) On/Off Switch with inbuilt lamp 03 Nos. (BL / FL / UV)
2) FL Light
3) U V Light
|
|
Pressure Measurement
|
:
|
Magnehalic Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Power supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ Report (Our factory tested only)
|

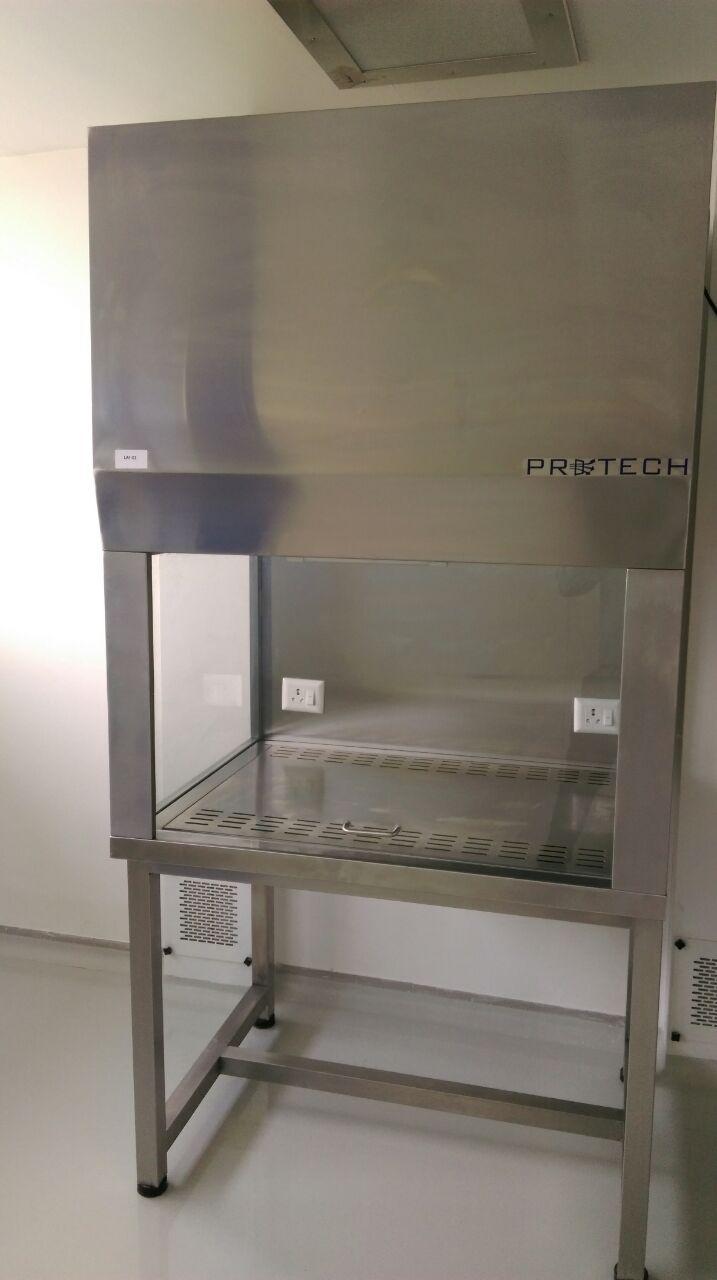

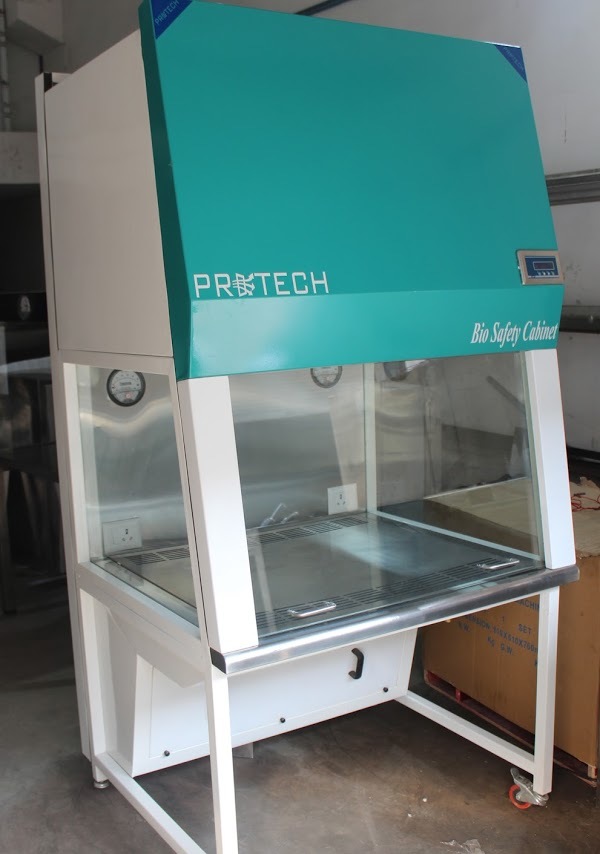

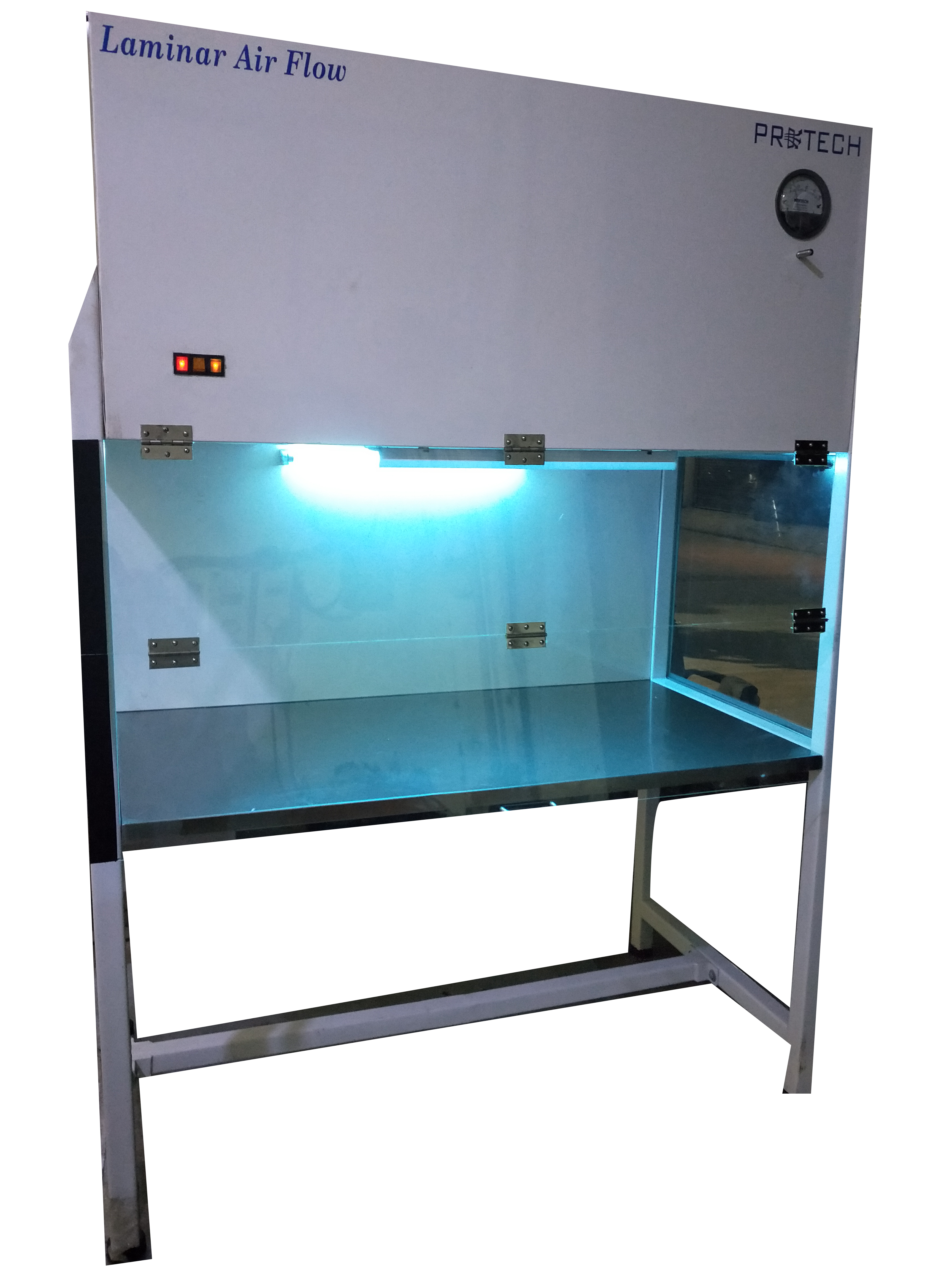

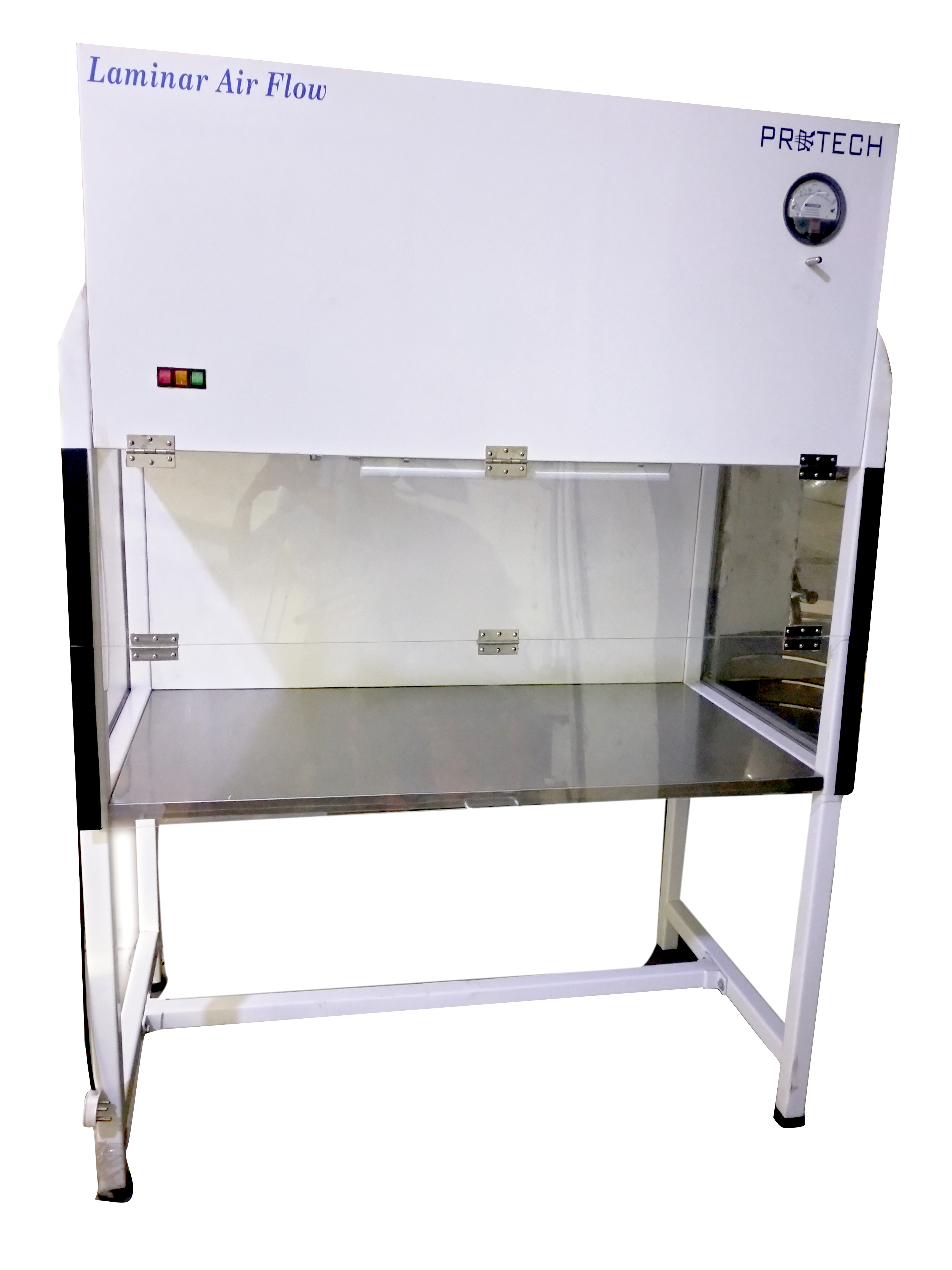

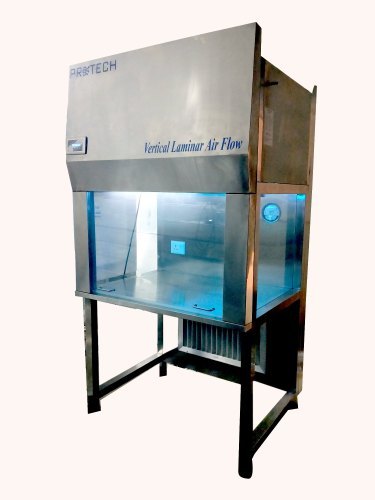

Vertical Laminar air flow Bench provides personnel, environmental and product protection. Air flow is drawn around the operator into the front grille of the cabinet, which provides personnel protection. Because bench air has passed through the exhaust HEPA filter, it is contaminant-free (environmental protection).TECHNICAL SPECIFICATION: - Cleanliness : - Class 100 / ISO CLASS 5/ M 3.5 AREA Flow Direction : - VERTICAL Velocity at Grill : - 90 20 FPM (0.45 20 m/sec) Material of Construction : - MS Powder Coated/ GI Powder Coated/ SS-304/ SS-316 HEPA Filter : - Mini pleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) dulytested on DOP tested Pre-Filters : - Pre-Filter down to5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame withepoxy sealing (Washable Type) Side Wall : -Do with acrylic side panel on both side Accessories : -DOP Port (Up Stream Port of HEPA for DOP Feeding) Blower Assembly : - Dynamically and statically balanced blower and motor Electrical : - 1)On/Off Switch within built lamp. (BL / FL / UV) FL LightUV LightPressure Measurement : -Magnehalic Gauge to check the pressure drop across the HEPA filter Range : 0-50mm WGPower supply : - 230 V, 50Hz, Single PhaseDocumentation : - DQ, IQ Report(Factory Tested)OPTION ACCESSORIES Castor Wheel Half Foldable Door (Polycarbonate) Toughened Glass Sash Door Digital Pressure Gauge with High / Low Pressure Alarm Auxiliary Power Socket (5/15Amp.) Technical Specifications Model HEPA Area Working Area Oveall dimension Horizontal flow Wxdxh Wxdxh LFB-22 610x610 610x610x610 710x1060x1450 LFB-32 915x610 915x610x610 1015x1060x1450 LFB-42 1220x610 1220x610x610 1330x1060x1450 Vertical Flow LFB-22 610x610 610x610x610 710x710x1980 LFB-32 915x610 915x610x610 1015x710x1980 LFB-42 1220x610 1220x610x610 1330x710x1980
FAQs of Vertical Lamina Air Flow Bench:
Q: What is the frame material of the Vertical Lamina Air Flow Bench?
A: The frame material of the Vertical Lamina Air Flow Bench is stainless steel.
Q: What types of filters are included in this air clean bench?
A: The Vertical Lamina Air Flow Bench comes with PRE FILTER and HEPA FILTER.
Q: What is the air volume capacity of the Vertical Lamina Air Flow Bench?
A: The air volume capacity of the Vertical Lamina Air Flow Bench is 1200 m3/hr.
Q: What type of door is included in this product?
A: The Vertical Lamina Air Flow Bench features a half-foldable door made of polycarbonate sheet.
Q: What is the power consumption of the Vertical Lamina Air Flow Bench?
A: The power consumption is 230V, 50HZ, 1PHASE.
Q: What applications is this product suitable for?
A: The Vertical Lamina Air Flow Bench is suitable for tissue culture, pharma companies, laboratories, etc.
Q: Does the product include lighting, and if so, what type?
A: Yes, the Vertical Lamina Air Flow Bench includes UV and FL lighting.
