Product Description
|
Cleanliness
|
:
|
Class 100 / ISO CLASS 5
|
|
|
Velocity at Grill
|
:
|
90 20 FPM
|
|
MOC
|
:
|
Main Body - SS-304, Door - Double Skinned Swing Type Double Door with View Panel, Internal & External with SS-304 (Except Motor & Blower & Door Interlocking,Filter housing), Housing:- MS Powder Coated
|
|
Supply Filter
|
:
|
Micro Fiberglass Paper Media pleated HEPA Filters down to 0.3mic. Particulate at an efficiency of 99.997% (H14) duly tested on DOP tested Filter Casing is made up of Aluminum extrusion
|
|
Suction Filter
|
:
|
Non-woven synthetic media Pre-Filter down to 5mic. Particulate
|
|
Fresh Air Filter
|
:
|
Non-woven synthetic media Pre-Filter down to 10mic. Particulate
|
|
Blower Assembly
|
:
|
Dynamically and statically balanced motor and blower
|
|
Electrical
|
:
|
On/Off Switch for BL / UV / FL
Door Open / Release : Feather touch Digital Display Panel
FL Light 1 No.
U V Light with 1 No.
|
|
Special Features
|
:
|
Door Opening With Solid State Electronic Inter Locking Mechanism
v When both door closed; both are elec. Magnet locked
v For open press touch screen to release the door
v At A Time Only One Door Opened
v Audio Indication for material is kept inside the pass box
v In close condition of both door : UV Light will be on,
v When open any one door: UV will off and FL will on.
|
|
Pressure Measurement
|
:
|
Meghnehalic Pressure Gauge (Analog) to check the pressure drop across the HEPA filter
|
|
Powder supply
|
:
|
230 V, 50Hz, Single Phase
|
|
Documentation
|
:
|
DQ, IQ, OQ,Test (Our Factory Tasted Only)
|

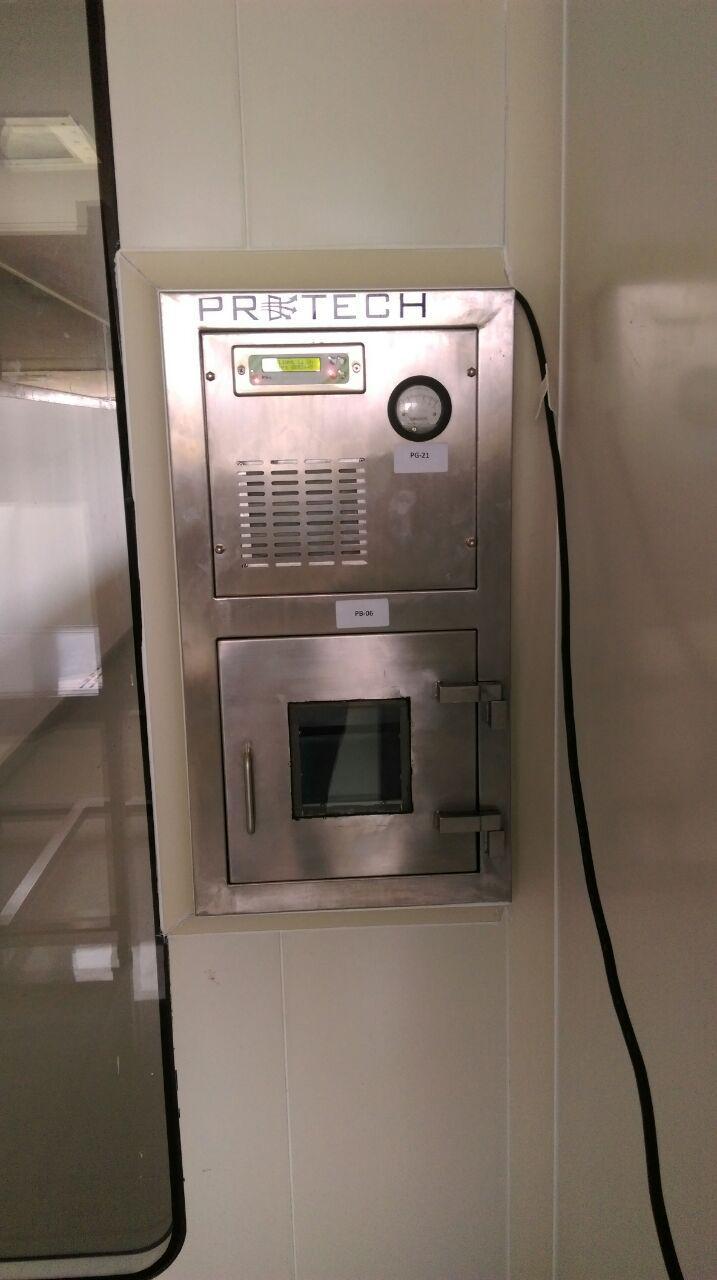

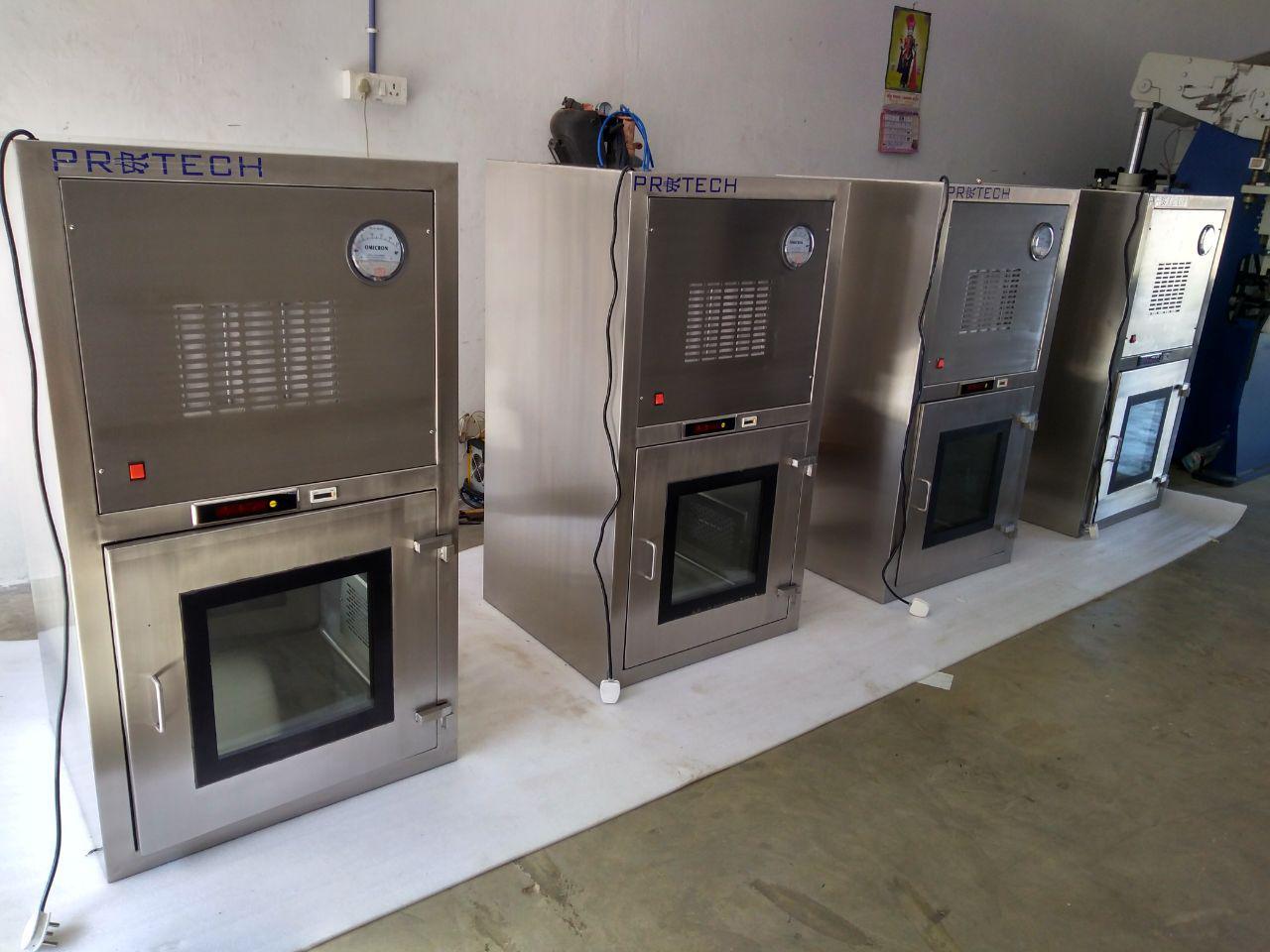

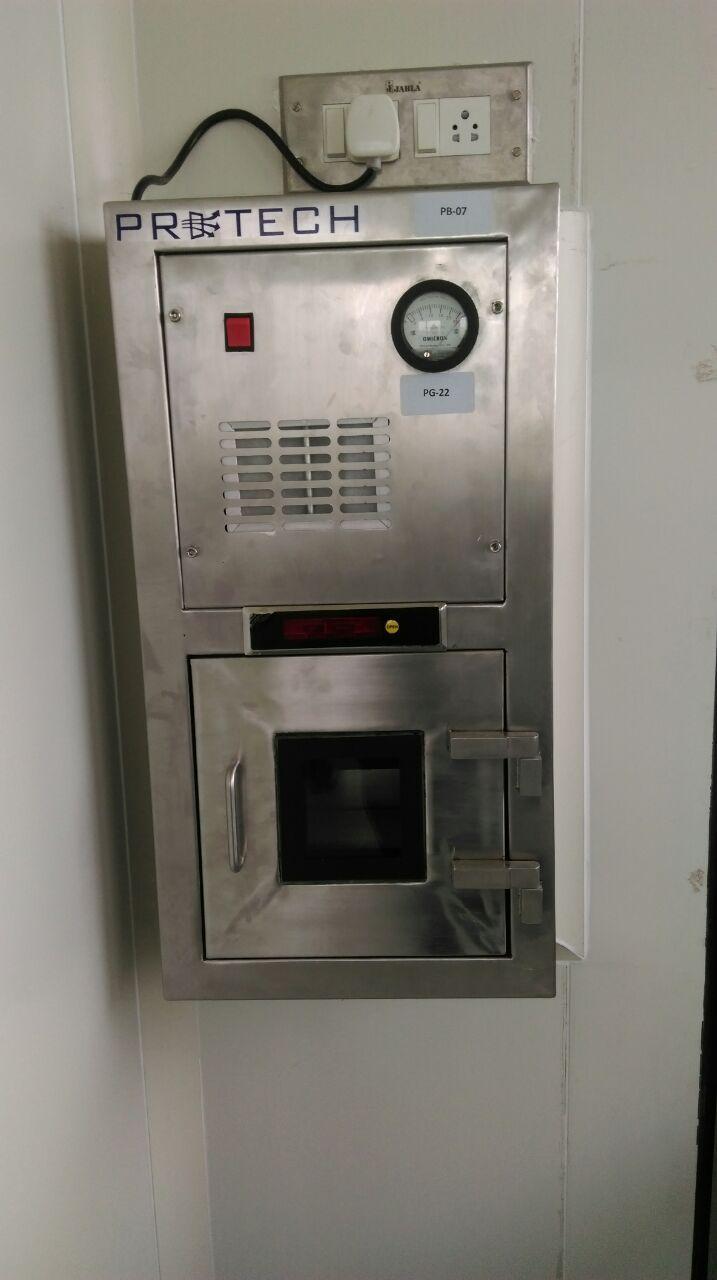

The Dynamic Pass Box is a precision-engineered solution designed for controlled environments, ensuring contamination-free transfer of materials. Constructed entirely from high-grade stainless steel, including its frame, this pass box offers unmatched durability and corrosion resistance. It features a double-skinned swing door with a view panel, providing visibility while maintaining a secure seal. Equipped with solid-state electronic interlocking systems, it prevents cross-contamination during operations. The UV and FL lighting system enhances sterilization and visibility inside the box, ensuring cleanliness for sensitive applications. The unit provides vertical airflow with a high Air Volume capability up to 1200 m3/hr supported by suction pre-filters, fresh air pre-filters, and supply HEPA filters. Configurable dimensions range from 450 x 450 x 450 mm to 1000 x 1000 x 1000 mm, catering to diverse requirements. Its broad application supports industries like pharma, hospitals, chemical companies, microbiology labs, food industries, and tissue culture labs. Operating at 230V and 50Hz, the design ensures efficient power consumption.
FAQs of Dynamic Pass Box:
Q: What is the material used for the Dynamic Pass Box?
A: The Dynamic Pass Box is made entirely of stainless steel, ensuring durability and corrosion resistance.
Q: What type of lighting is provided inside the pass box?
A: The pass box is equipped with UV and FL lighting systems for sterilization and visibility.
Q: How does the airflow system function?
A: The box features a vertical airflow system with an air volume capacity of up to 1200 m3/hr, aided by suction pre-filters, fresh air pre-filters, and supply HEPA filters.
Q: What industries commonly use the pass box?
A: The Dynamic Pass Box is widely used in pharma, hospitals, chemical companies, microbiology labs, tissue culture labs, and food industries.
Q: What is the operating power requirement of the pass box?
A: The pass box operates on 230V, 50Hz, single-phase power.
