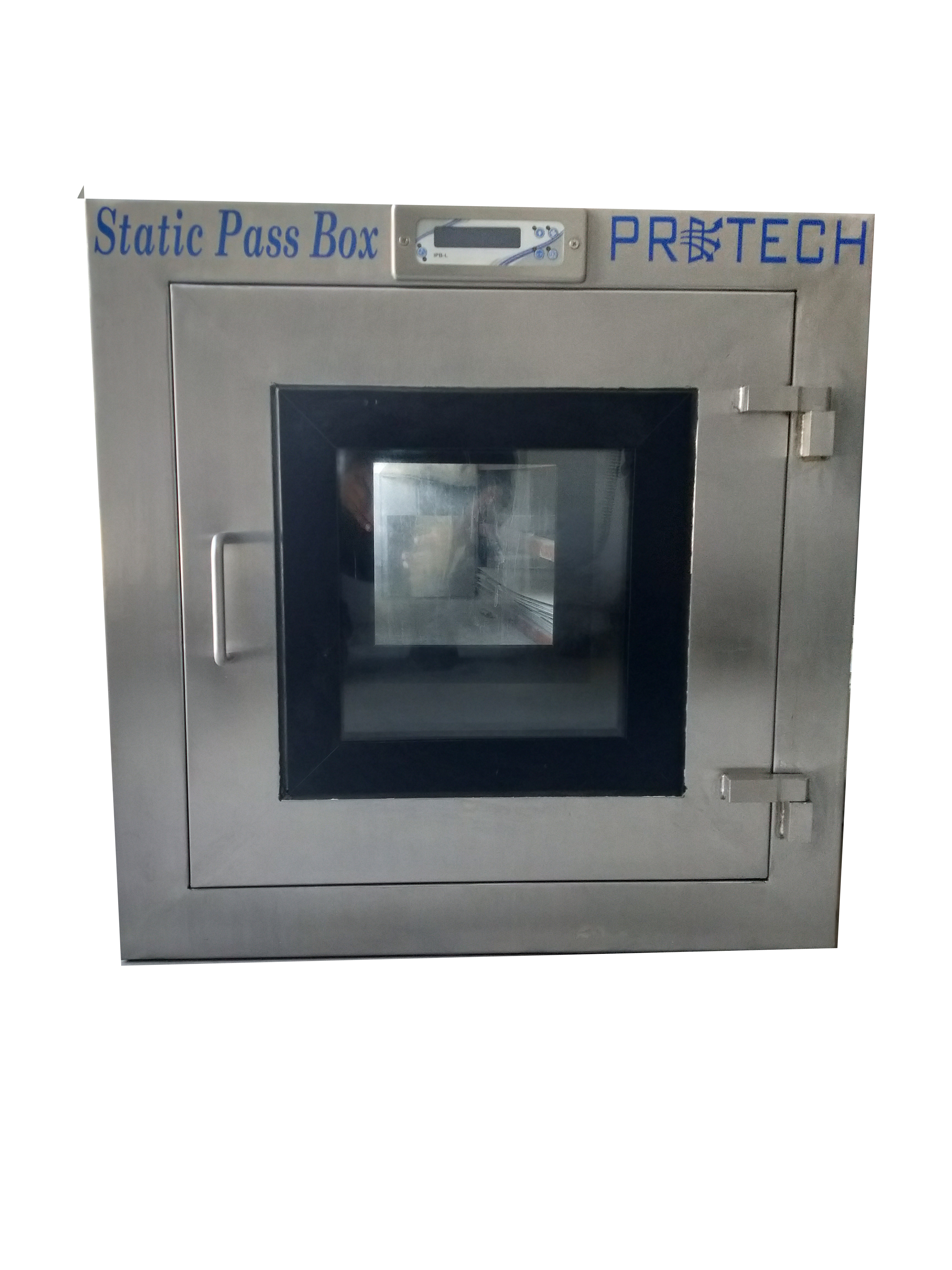

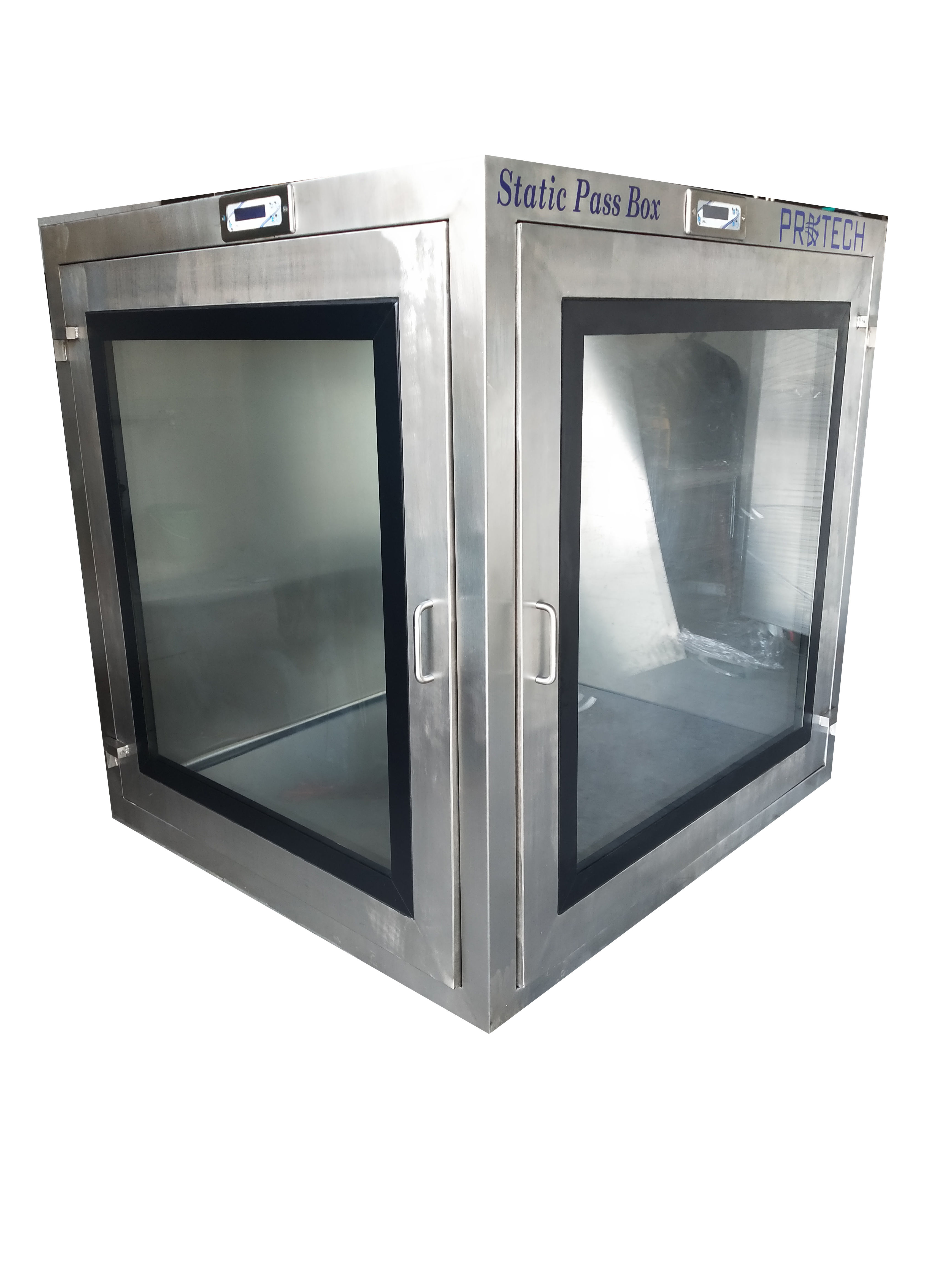

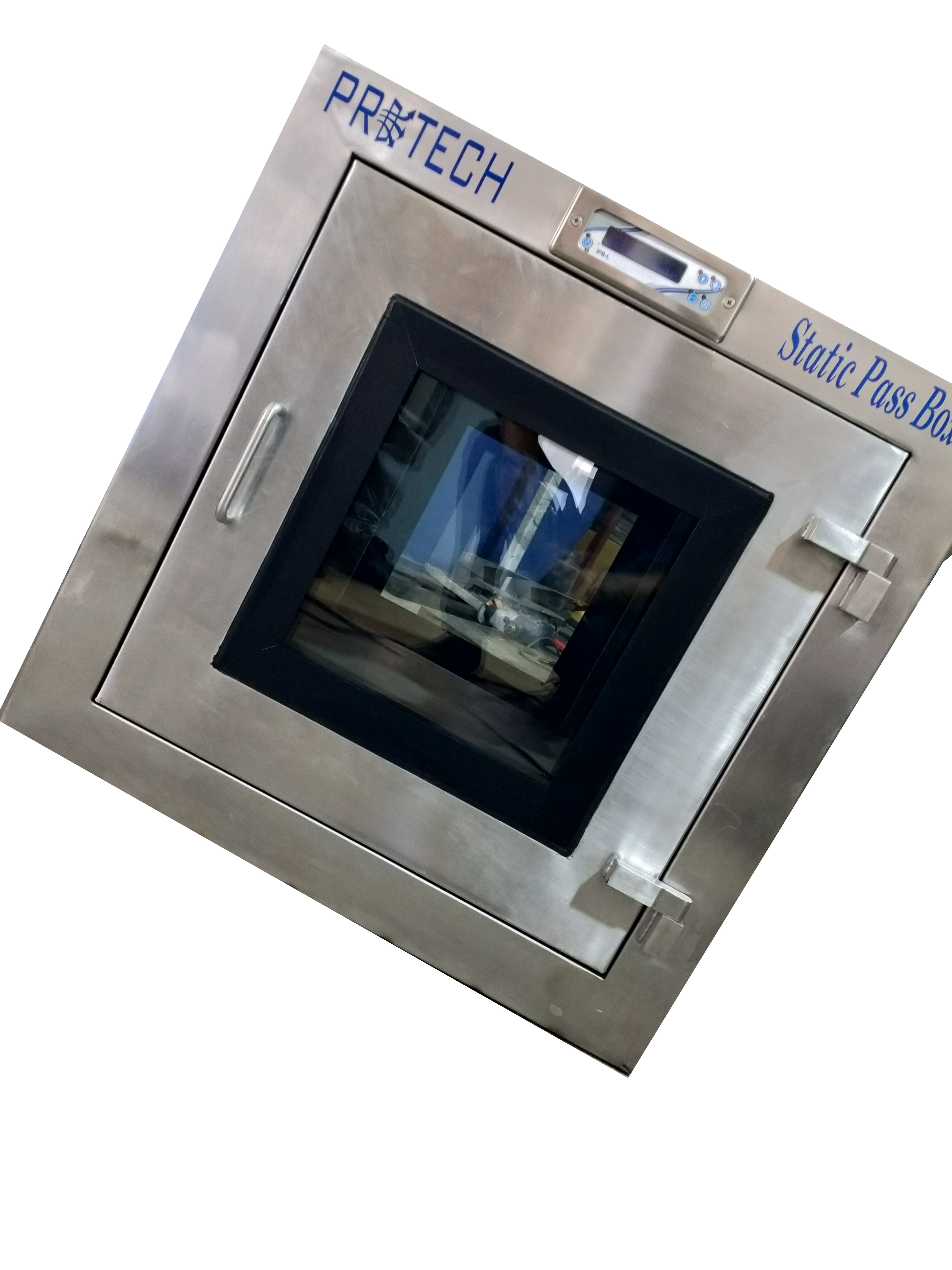

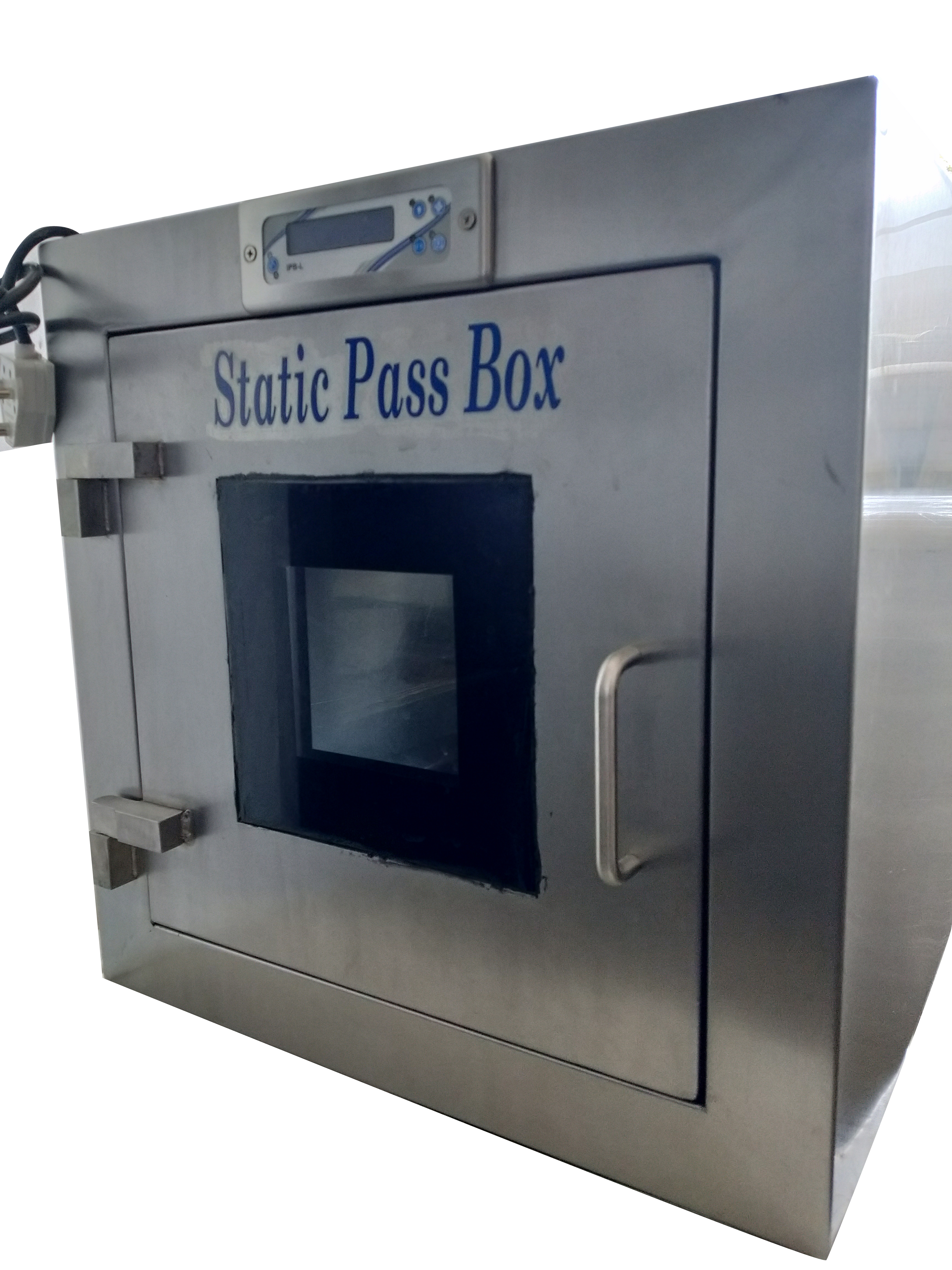

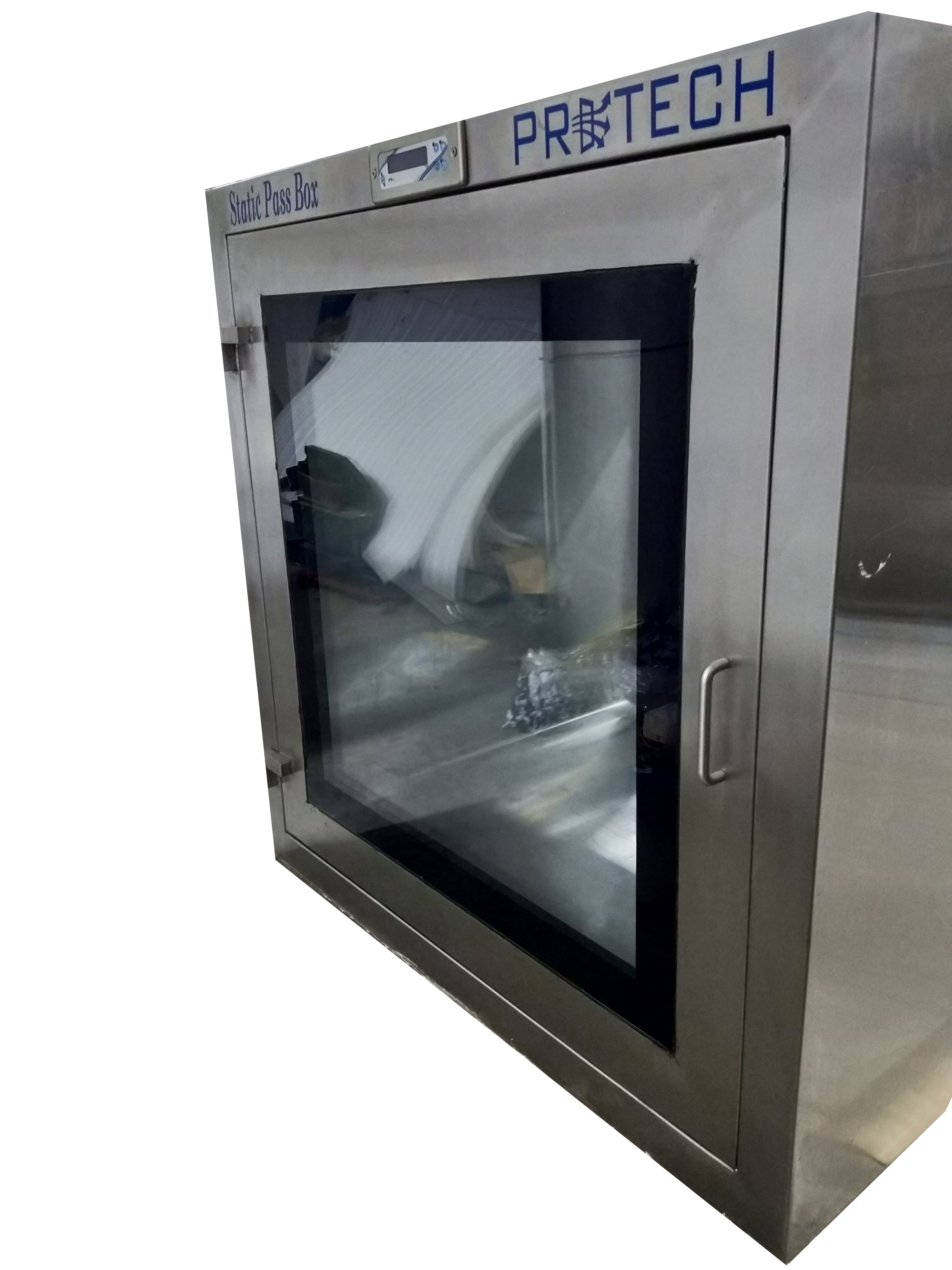

We are providing Static Pass Box that is widely appreciated owing to its top-notch quality, supreme performance and extended durability. Basically, this equipment is used in the lab for research and development works. The box is equipped with a variety of air filters which process the air and removes the contaminants, and pollutants from it. It is highly accurate and precision device, and therefore it is suitable for the biological and pharmaceutical industry. moreover, we are offering Static Pass Box at the market leading price.
MOC : GI Powder coated / SS-304 / SS-316
Construction : single skinned / double skinned
Door : swing type double door (double skinned ) with view panel with SS hinges 7 D Handle
Fluorescent light (interlock with door )
UV light with house meter ( interlock with door ) internal coving for easy cleaning
Door opening with solid state electronic inter locking mechanism
- When both door closed ;both are elec. Magnet locked
- For open press touch screen to release the door.
- At a time only one door opened
- Audio / visual indication for material is kept inside the pass box.
- In case condition of both door : UV light will be on.
- When open any door : UV will off and FL will on
POWER SUPPLY : 230V AC ,1,50HZ
OPTIONS AND ACCESSORIES
A wide range of configurations to suit any containment application :-
- Mechanical interlocking
- Once through LAF module for sterile air
- Bottom with roller base for heavy drum / material transfer
- Flush level with ground level for easy trolley transfer
- Flange for one side flush mount in clean room partition / wall FLP electrical goods for explosion area
| Model | Working area (WxDxH) | Overall dimension (WxDxH) |
| SPB-18/18 | 200x250x200 | 305x305x305 |
| SPB-18/18 | 350x400x350 | 460x460x460 |
| SPB-24/24 | 500x550x500 | 610x610x610 |
| SPB-30/30 | 650x710x650 | 760x760x760 |
