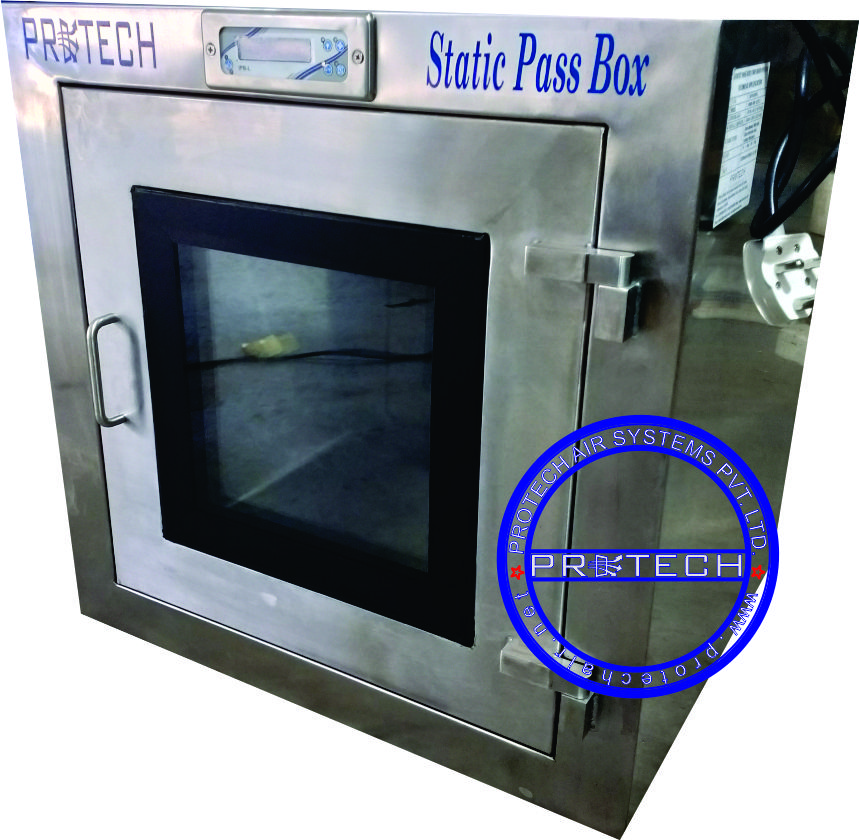

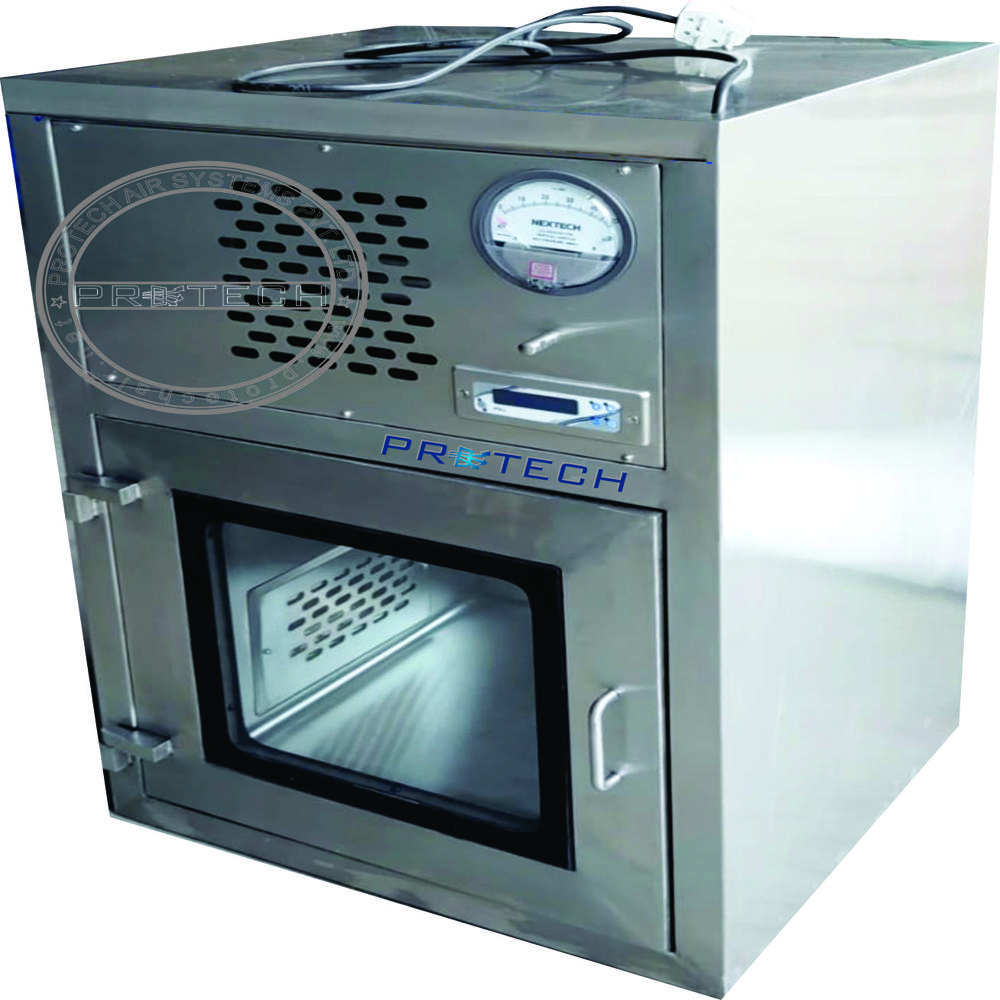

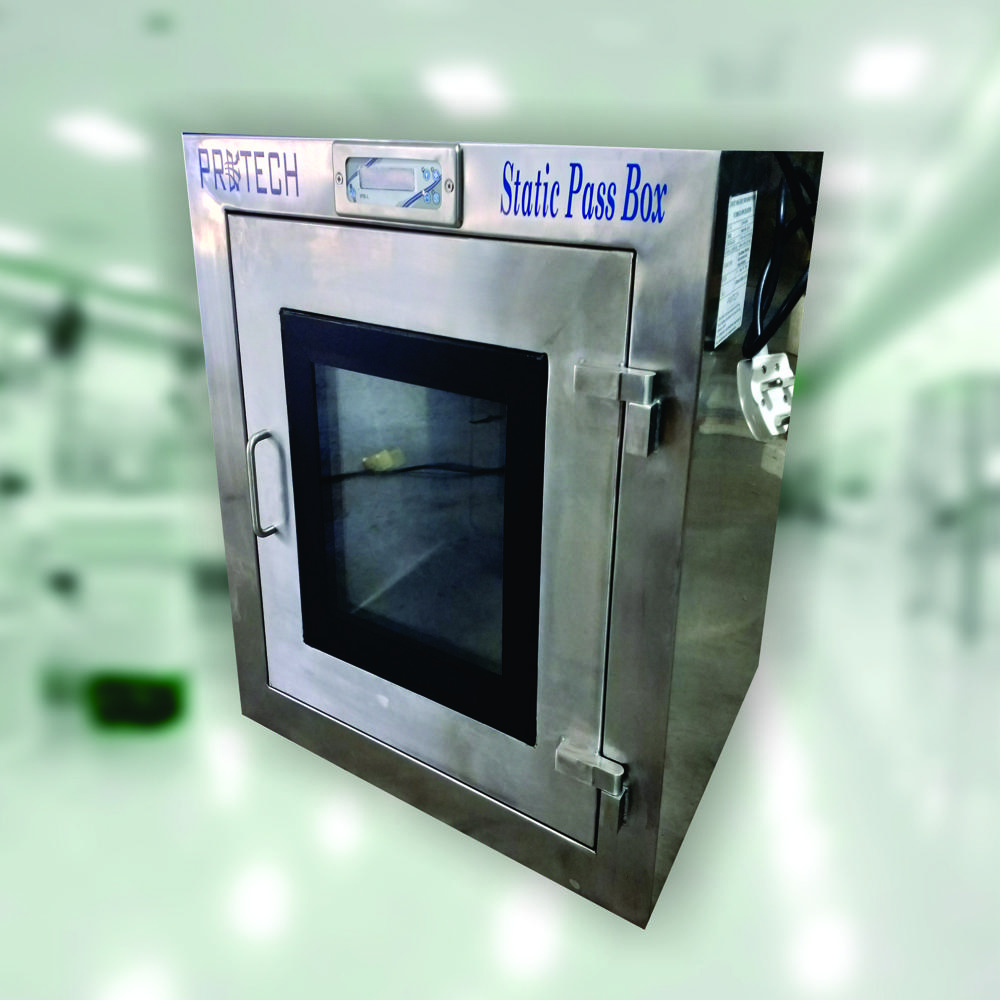

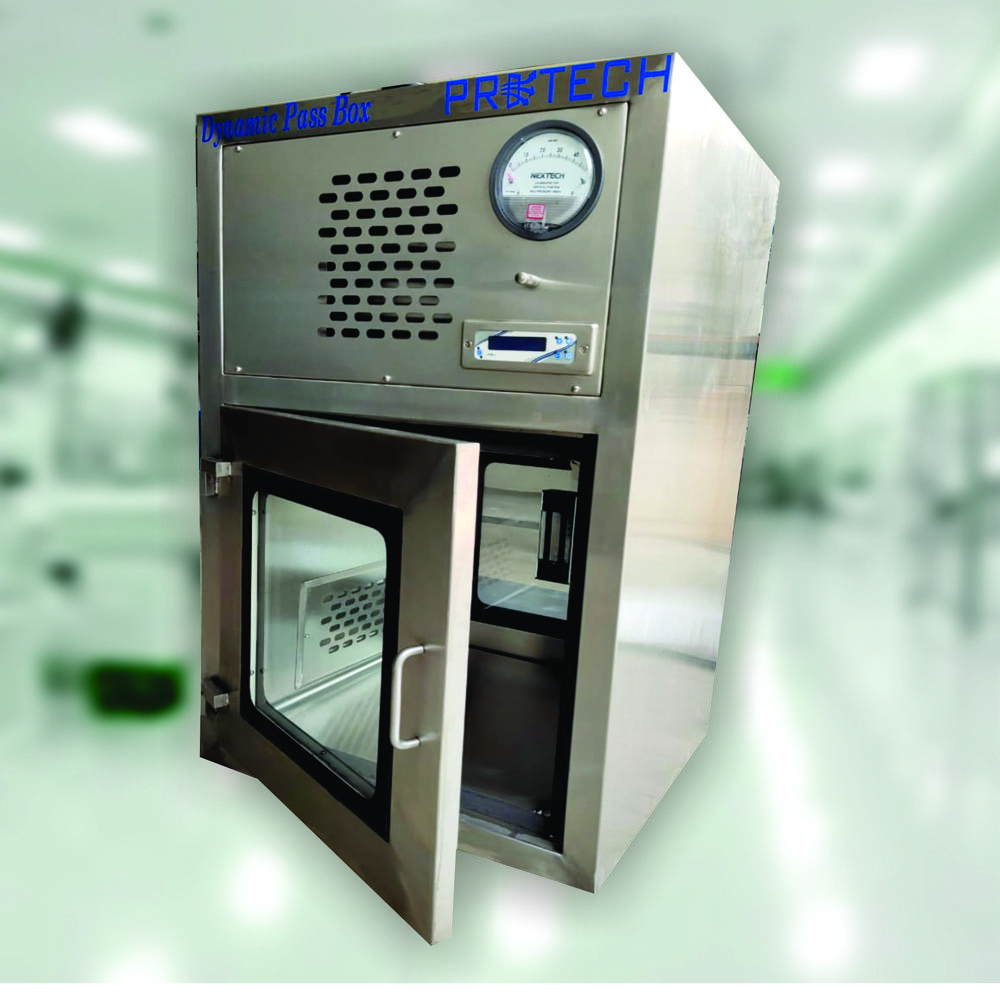

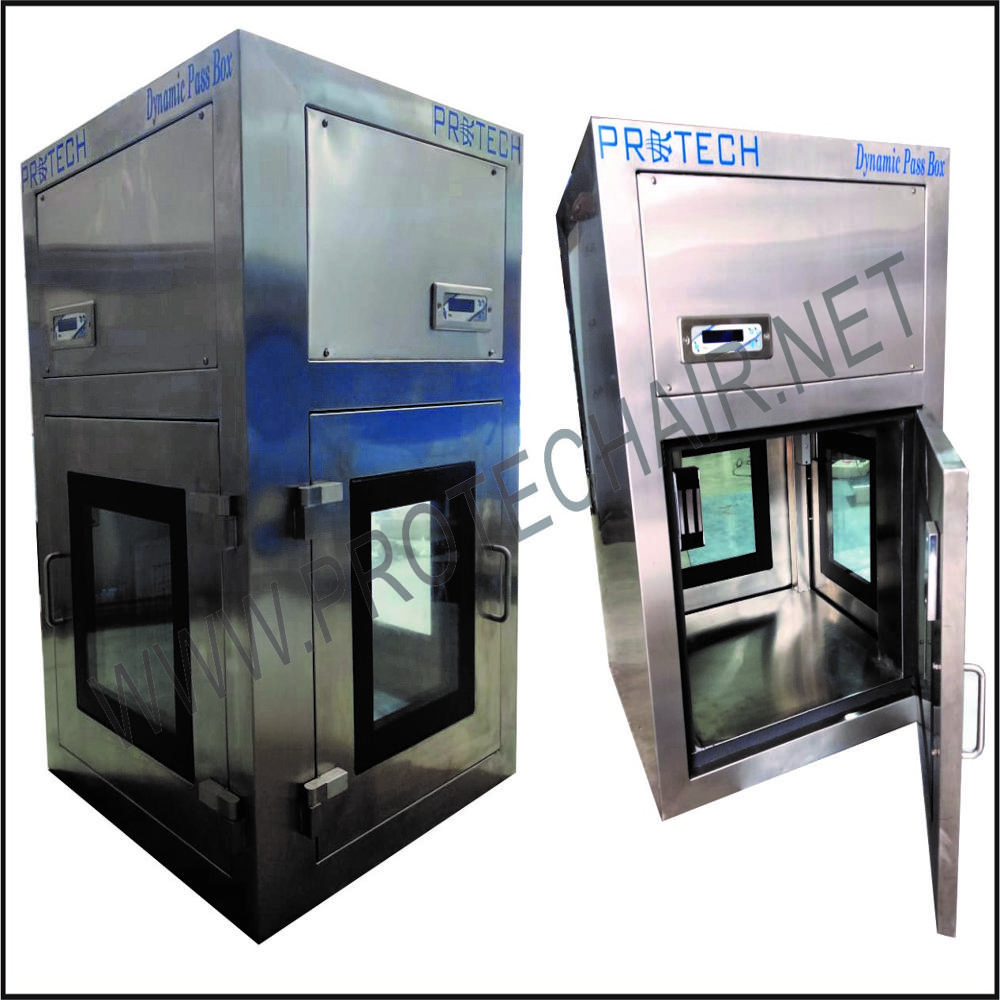

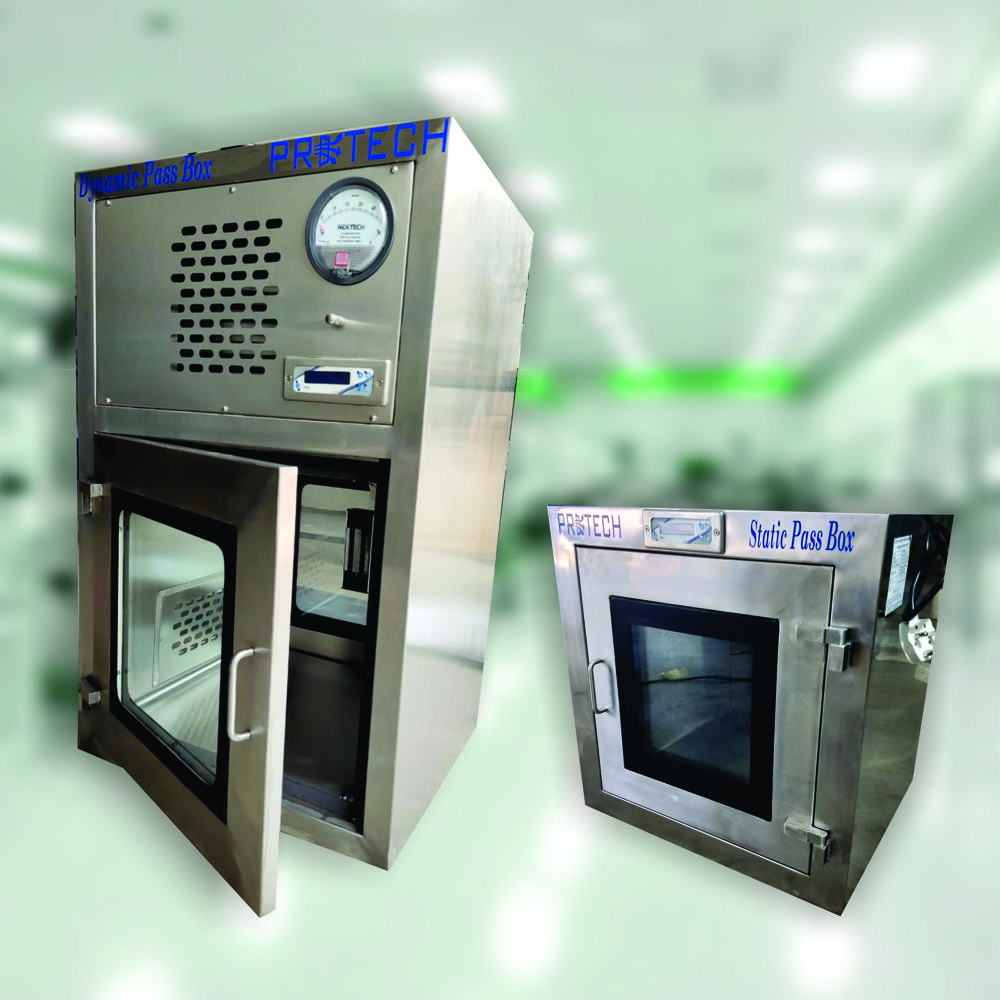

Pass Box - Static & Dynamic

Cleanliness

:

Class 100 / ISO CLASS 5

Velocity at Grill

:

90 20 FPM

MOC

:

Main Body - SS-304, Door  - Double Skinned Swing Type Double Door with View Panel, Internal & External with SS-304 (Except Motor & Blower & Door Interlocking,Filter housing), Housing:- MS Powder Coated

Supply Filter

:

Micro Fiberglass Paper Media pleated HEPA Filters down to 0.3mic. Particulate at an efficiency of 99.997% (H14) duly tested on DOP tested Filter Casing is made up of Aluminum extrusion

Suction Filter

:

Non-woven synthetic media Pre-Filter down to 5mic. Particulate

Fresh Air Filter

:

Non-woven synthetic media Pre-Filter down to 10mic. Particulate

Blower Assembly

:

Dynamically and statically balanced motor and blower

Electrical

:

  On/Off Switch for BL / UV / FL

  Door Open / Release : Feather touch Digital Display Panel

  FL Light 1 No.

  U V Light with 1 No.

Special Features

:

Door Opening With Solid State Electronic Inter Locking Mechanism

v  When both door closed; both are elec. Magnet locked

v  For open press touch screen to release the door

v  At A Time Only One Door Opened

v  Audio Indication for material is kept inside the pass box

v  In close condition of both door : UV Light will be on,

v  When open any one door: UV will off and FL will on.

Pressure Measurement

:

Meghnehalic Pressure Gauge (Analog) to check the pressure drop across the HEPA filter

Power supply

:

230 V, 50Hz, Single Phase

Documentation

:

DQ, IQ, OQ,Test (Our Factory Tasted Only)
